STM32F072VBH6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PBGA100

Part Details for STM32F072VBH6 by STMicroelectronics

Results Overview of STM32F072VBH6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Healthcare Renewable Energy Automotive Robotics and Drones

STM32F072VBH6 Information

STM32F072VBH6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F072VBH6

Part # Distributor Description Stock Price Buy
DISTI # 497-18521-ND
DigiKey IC MCU 32BIT 128KB FLSH 100UFBGA Min Qty: 1 Lead time: 13 Weeks Container: Tray 2194
In Stock
  • 1 $4.4900
  • 10 $3.4260
  • 25 $3.1604
  • 100 $2.8686
  • 416 $2.7190
$2.7190 / $4.4900 Buy Now
DISTI # STM32F072VBH6
Avnet Americas MCU 32-Bit GP STM32F 32MHz ARM Cortex M0+ RISC 128kB Flash 100-Pin TFBGA Tray - Trays (Alt: STM32F072VBH6) COO: Singapore RoHS: Compliant Min Qty: 2496 Package Multiple: 2496 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 2,496 $3.1079
  • 4,992 $2.9399
  • 9,984 $2.8625
  • 14,976 $2.7891
  • 19,968 $2.7194
$2.7194 / $3.1079 Buy Now
DISTI # 511-STM32F072VBH6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0 USB line MCU 128 Kbytes of Flash 48 MHz CPU, USB, CAN & RoHS: Compliant 0
  • 2,496 $2.7100
$2.7100 Order Now
STMicroelectronics Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions COO: Singapore RoHS: Compliant Min Qty: 1 0
  • 1 $4.1400
  • 10 $2.6900
  • 100 $2.6900
  • 250 $2.6700
  • 500 $2.6700
$2.6700 / $4.1400 Buy Now
DISTI # 66286782
Verical MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V 100-Pin UFBGA Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2244 Americas - 1960
  • 2 $2.5120
$2.5120 Buy Now
DISTI # STM32F072VBH6
IBS Electronics MCU 32-BIT GP STM32F 32MHZ ARM CORTEX M0&#x2B, RISC 128KB FLASH 100-PIN TFBGA TRAY Min Qty: 2496 Package Multiple: 1 0
  • 2,496 $3.5840
$3.5840 Buy Now
DISTI # STM32F072VBH6
Avnet Silica MCU 32Bit GP STM32F 32MHz ARM Cortex M0 RISC 128kB Flash 100Pin TFBGA Tray (Alt: STM32F072VBH6) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F072VBH6
EBV Elektronik MCU 32Bit GP STM32F 32MHz ARM Cortex M0 RISC 128kB Flash 100Pin TFBGA Tray (Alt: STM32F072VBH6) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 14 Weeks, 0 Days EBV - 6240
Buy Now
Sense Electronic Company Limited BGA 69168
RFQ

US Tariff Estimator: STM32F072VBH6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F072VBH6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F072VBH6

STM32F072VBH6 CAD Models

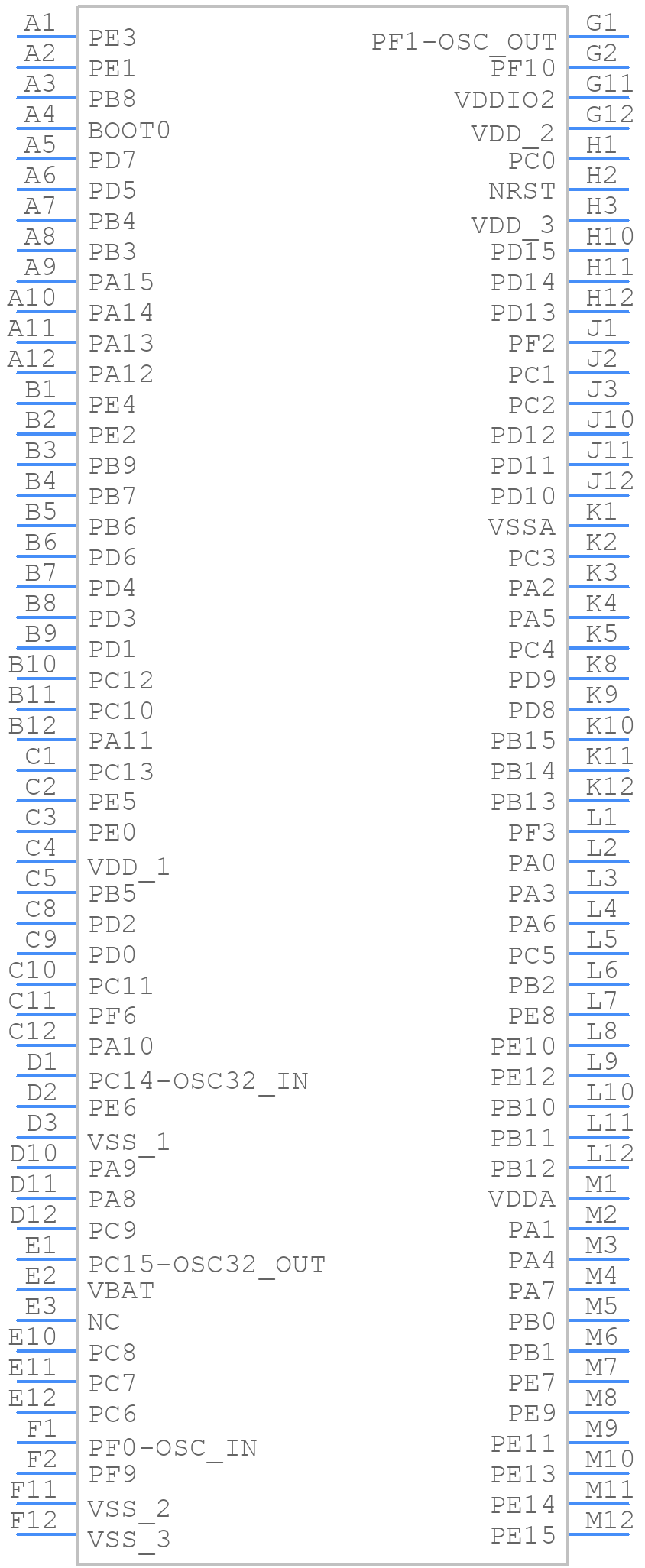

  • Part Symbol

    schematic symbol

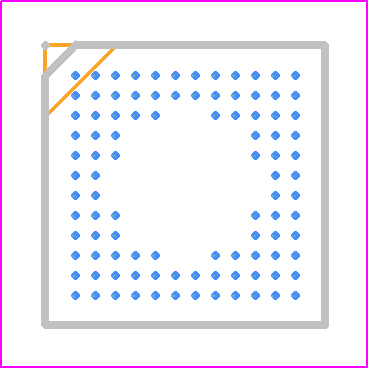

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F072VBH6 Part Data Attributes

Parametric Data
STM32F072VBH6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F072VBH6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PBGA100
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vfbga, Bga100,12x12,20
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PBGA-B100
Length 7 Mm
Number of DMA Channels
Number of I/O Lines 87
Number of Terminals 100
Number of Timers 12
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VFBGA
Package Equivalence Code BGA100,12X12,20
Package Shape Square
Package Style Grid Array, Very Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
Qualification Status Not Qualified
RAM (bytes) 16384
ROM (words) 131072
ROM Programmability Flash
Seated Height-Max 0.6 Mm
Speed 48 Mhz
Supply Current-Max 27.6 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Ball
Terminal Pitch 0.5 Mm
Terminal Position Bottom
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F072VBH6

This table gives cross-reference parts and alternative options found for STM32F072VBH6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F072VBH6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F072VBH7 STMicroelectronics $4.3746 RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PBGA100 STM32F072VBH6 vs STM32F072VBH7
STM32F072VBH6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PBGA100 STM32F072VBH6 vs STM32F072VBH6TR
equivalents icon

STM32F072VBH6 Related Parts

STM32F072VBH6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F072VBH6 is 48 MHz.

  • The STM32F072VBH6 has 128 KB of flash memory.

  • Yes, the STM32F072VBH6 can operate in the industrial temperature range of -40°C to 85°C.

  • Yes, the STM32F072VBH6 has a built-in USB 2.0 full-speed interface.

  • The STM32F072VBH6 has 3 UARTs.
