Microcontrollers and Processors / Microcontrollers / STM32F479VIT6
Datasheets
STM32F479VIT6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PQFP100

Part Details for STM32F479VIT6 by STMicroelectronics

Results Overview of STM32F479VIT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Healthcare Telecommunications

STM32F479VIT6 Information

STM32F479VIT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F479VIT6

Part # Distributor Description Stock Price Buy
DISTI # 29AK8176
Newark Mcu, 32Bit, 180Mhz, Lqfp-100 Rohs Compliant: Yes |Stmicroelectronics STM32F479VIT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 697
  • 1 $15.6100
  • 10 $12.6100
  • 25 $12.1500
  • 50 $11.5300
  • 180 $10.8900
  • 270 $10.4200
$10.4200 / $15.6100 Buy Now
DISTI # 497-16786-ND
DigiKey IC MCU 32BIT 2MB FLASH 100LQFP Min Qty: 540 Lead time: 15 Weeks Container: Tray Temporarily Out of Stock
  • 540 $9.5010
$9.5010 Buy Now
DISTI # STM32F479VIT6
Avnet Americas MCU STM32F 32-Bit ARM-Based Cortex-M4 RISC 2MB Flash 100-Pin LQFP Tray - Bulk (Alt: STM32F479VIT6) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 540 Package Multiple: 540 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 540 $9.8100
  • 1,080 $9.2797
  • 2,160 $9.0355
  • 3,240 $8.8039
  • 4,320 $8.5838
$8.5838 / $9.8100 Buy Now
DISTI # 511-STM32F479VIT6
Mouser Electronics ARM Microcontrollers - MCU High-performance advanced line, ARM Cortex-M4 core DSP & FPU, 2 Mbyte Flash, 180 RoHS: Compliant 546
  • 1 $15.1600
  • 10 $12.2400
  • 25 $11.8000
  • 100 $10.5700
  • 250 $10.1200
  • 540 $9.7000
$9.7000 / $15.1600 Buy Now
DISTI # V36:1790_16116174
Arrow Electronics MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2331 Americas - 2241
  • 1 $8.8160
  • 10 $8.4050
  • 25 $8.3340
  • 100 $8.1100
  • 250 $8.0810
  • 540 $8.0110
$8.0110 / $8.8160 Buy Now
STMicroelectronics High-performance advanced line, ARM Cortex-M4 core with DSP and FPU, 2 Mbyte Flash, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, Dual QSPI, TFT, MIPI-DSI COO: France RoHS: Compliant Min Qty: 1 546
  • 1 $14.8600
  • 10 $12.0000
  • 25 $11.5600
  • 100 $10.3600
  • 250 $9.9200
$9.9200 / $14.8600 Buy Now
DISTI # 81324259
Verical MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2331 Americas - 2241
  • 1 $8.0110
$8.0110 Buy Now
DISTI # V36:1790_16116174
Arrow Electronics MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2331 Americas - 2241
  • 1 $8.8160
  • 10 $8.4050
  • 25 $8.3340
  • 100 $8.1100
  • 250 $8.0810
  • 540 $8.0110
$8.0110 / $8.8160 Buy Now
DISTI # 81324259
Verical MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2331 Americas - 2241
  • 1 $8.0110
$8.0110 Buy Now
DISTI # V36:1790_16116174
Arrow Electronics MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2331 Americas - 2241
  • 1 $8.8160
  • 10 $8.4050
  • 25 $8.3340
  • 100 $8.1100
  • 250 $8.0810
  • 540 $8.0110
$8.0110 / $8.8160 Buy Now
DISTI # 81324259
Verical MCU 32-bit ARM Cortex M4 RISC 2MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2331 Americas - 2241
  • 1 $8.0110
$8.0110 Buy Now
DISTI # STM32F479VIT6
Avnet Silica MCU STM32F 32Bit ARMBased CortexM4 RISC 2MB Flash 100Pin LQFP Tray (Alt: STM32F479VIT6) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F479VIT6
EBV Elektronik MCU STM32F 32Bit ARMBased CortexM4 RISC 2MB Flash 100Pin LQFP Tray (Alt: STM32F479VIT6) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 16 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 32BIT 2MB FLASH 100LQFP / ARM® Cortex®-M4 series Microcontroller IC 32-Bit Single-Core 180MHz 2MB (2M x 8) FLASH 100-LQFP (14x14) 1100
  • 3 $20.8022
  • 7 $17.0685
  • 11 $16.5351
  • 15 $16.0018
  • 19 $15.4684
  • 25 $13.8681
$13.8681 / $20.8022 Buy Now

US Tariff Estimator: STM32F479VIT6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F479VIT6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F479VIT6

STM32F479VIT6 CAD Models

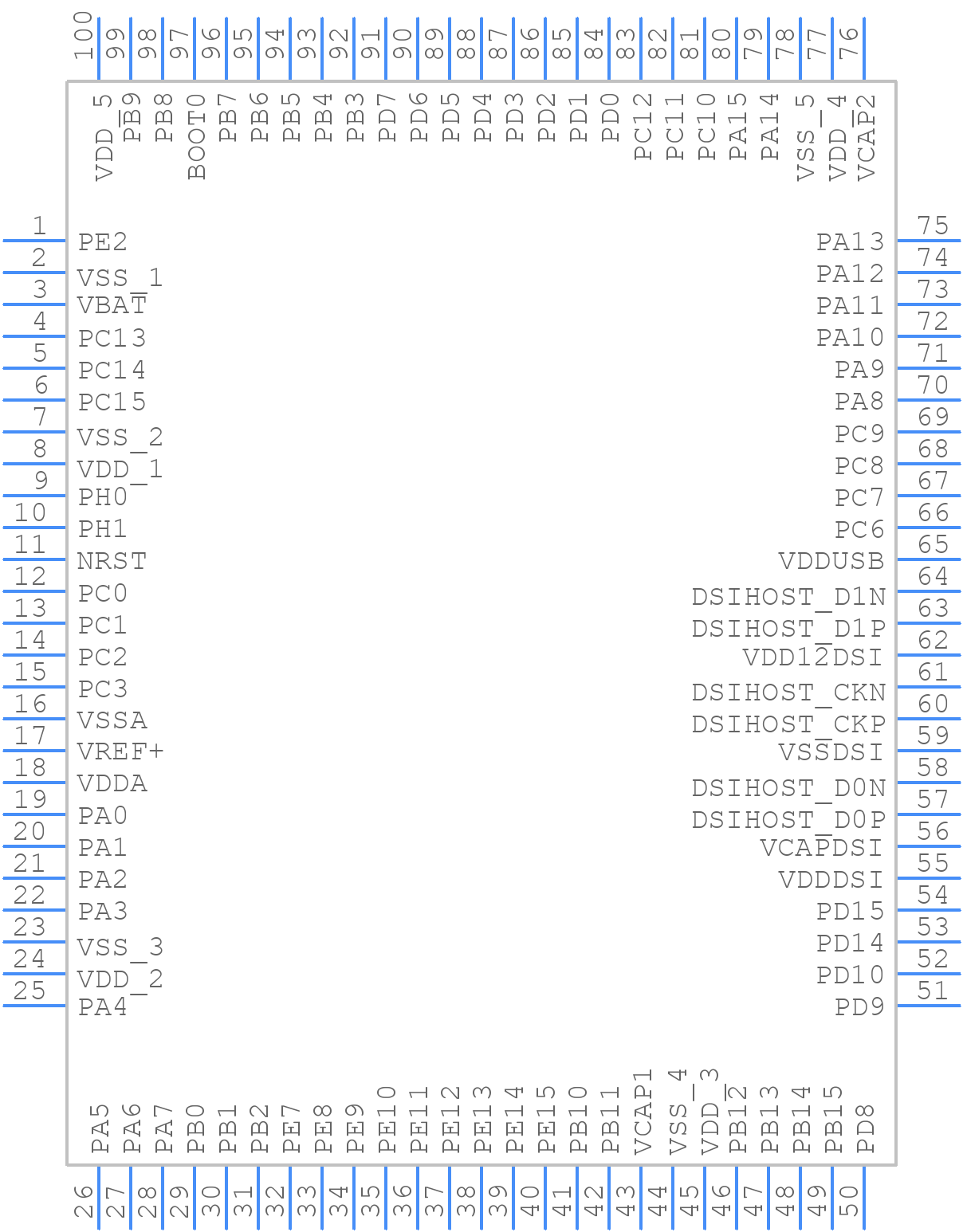

  • Part Symbol

    schematic symbol

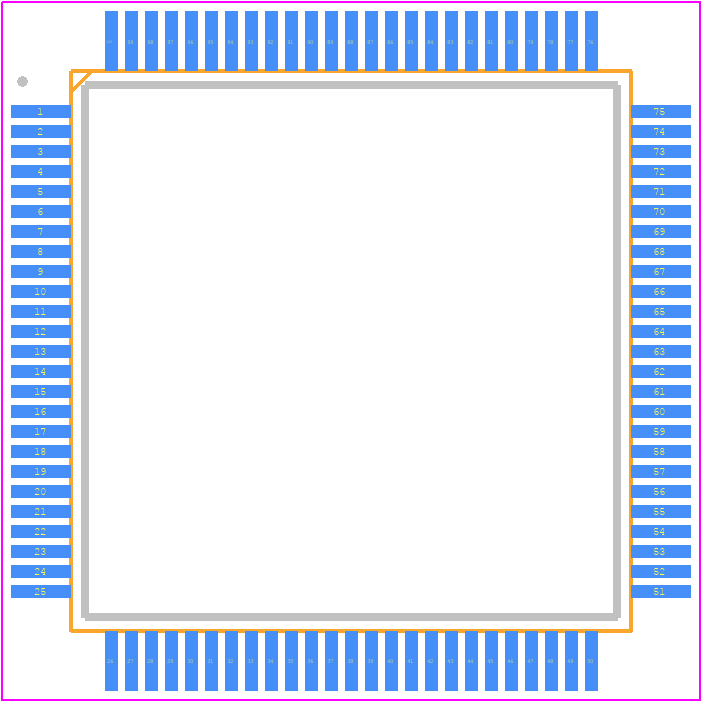

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F479VIT6 Part Data Attributes

Parametric Data
STM32F479VIT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F479VIT6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PQFP100
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp100,.63sq,20
Manufacturer Package Code LQFP 100 14x14x1.4
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Has ADC Yes
Address Bus Width 32
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M4
Clock Frequency-Max 26 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
Format Floating Point
Integrated Cache Yes
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 16
Number of External Interrupts 16
Number of I/O Lines 71
Number of Terminals 100
Number of Timers 14
On Chip Data RAM Width 32
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 393216
RAM (words) 98304
ROM (words) 2097152
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 180 Mhz
Supply Current-Max 142 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 14 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F479VIT6

This table gives cross-reference parts and alternative options found for STM32F479VIT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F479VIT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F479VIT6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PQFP100 STM32F479VIT6 vs STM32F479VIT6TR
STM32F479VIT7XXX STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PQFP100 STM32F479VIT6 vs STM32F479VIT7XXX
STM32F479VIT7TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PQFP100 STM32F479VIT6 vs STM32F479VIT7TR
equivalents icon

STM32F479VIT6 Frequently Asked Questions (FAQ)

  • The internal oscillator (HSI) can operate up to 16 MHz, but the recommended frequency range is 4-16 MHz for optimal performance.

  • To achieve the highest clock speed, configure the PLL to multiply the HSE clock (external crystal oscillator) by 432, and then divide the result by 2 to get a 180 MHz clock frequency.

  • The STM32F479VIT6 has 128 KB of SRAM, and up to 64 KB can be used for DMA transfers, depending on the specific DMA channel and transfer configuration.

  • To optimize power consumption, use the STOP mode with the voltage regulator in low-power mode, and disable unnecessary peripherals and clocks. Also, consider using the Low-Power UART (LPUART) instead of the standard UART.

  • The USB OTG HS interface can transfer data at up to 480 Mbps.
