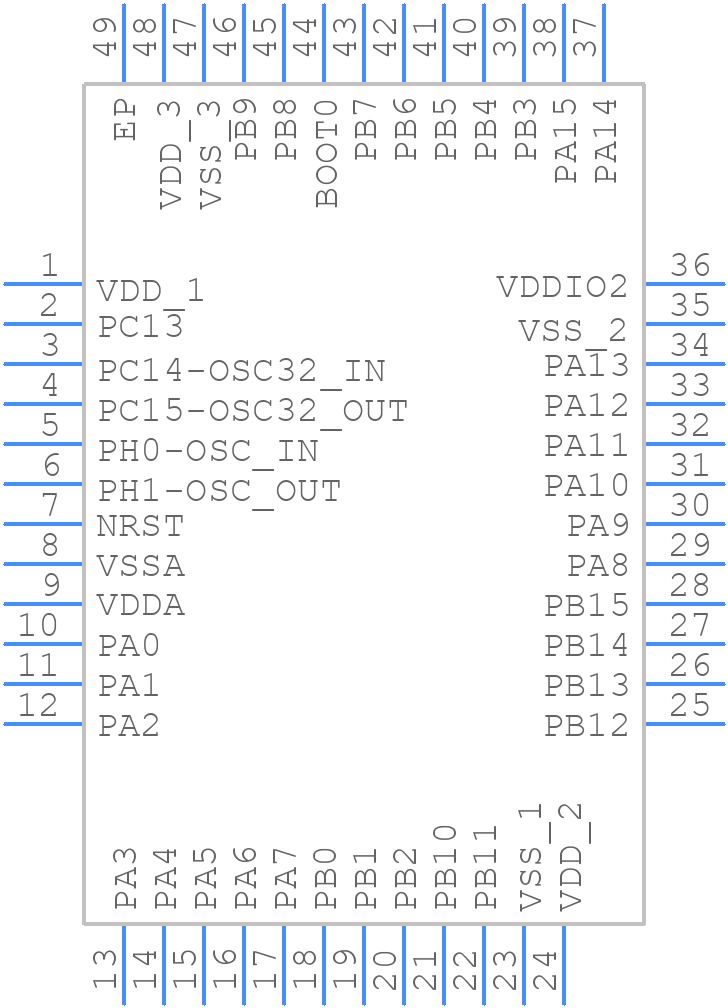

Part Symbol
-

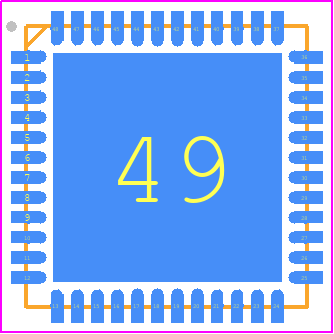

Footprint
-

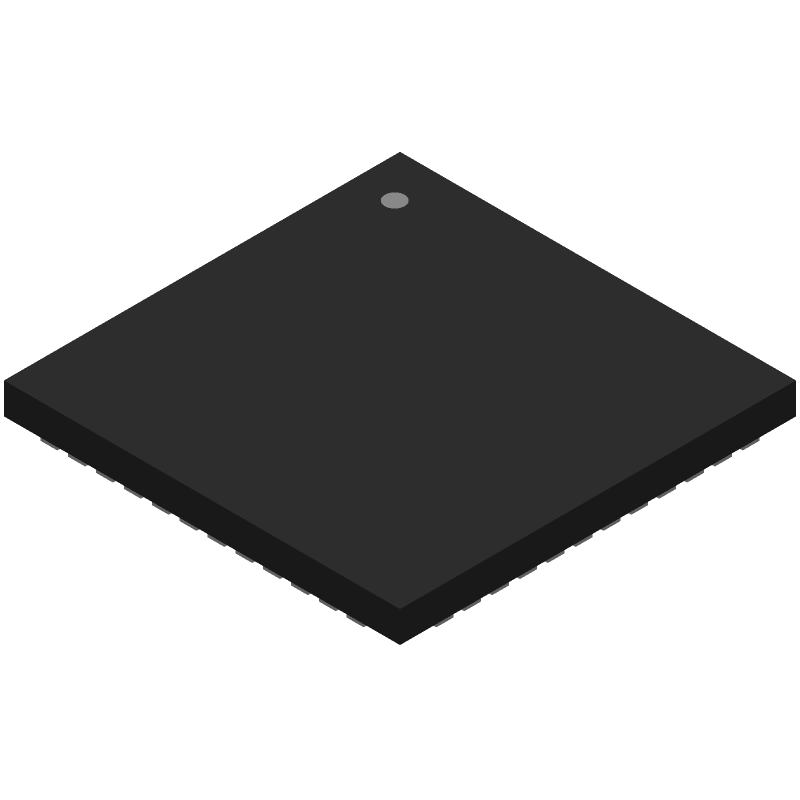

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
84AC2916
|
Newark | Mcu, 32Bit, 32Mhz, Ufqfpn-48, Product Range:Stm32 Family Stm32L0 Series Microcontrollers, Architecture:Arm Cortex-M0+, No. Of Bits:32Bit, Cpu Speed:32Mhz, Program Memory Size:64Kb, Ram Memory Size:8Kb, No. Of Pins:48Pins, Mcu Case Rohs Compliant: Yes |Stmicroelectronics STM32L051C8U6 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.9800 / $4.5400 | Buy Now |
DISTI #
94AC2294
|
Newark | Stm32L |Stmicroelectronics STM32L051C8U6 Min Qty: 1560 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.3100 | Buy Now |
DISTI #
497-STM32L051C8U6-ND
|
DigiKey | IC MCU 32BIT 64KB FLASH 48UFQFPN Min Qty: 1 Lead time: 12 Weeks Container: Tray |
4460 In Stock |
|
$1.9215 / $3.8300 | Buy Now |
DISTI #
STM32L051C8U6
|
Avnet Americas | MCU 32-bit ARM Cortex-M0+ RISC 64KB Flash 1.8V to 3.6V 48-Pin UFQFPN Tray - Trays (Alt: STM32L051C8U6) RoHS: Not Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$1.8671 / $2.1246 | Buy Now |
DISTI #
511-STM32L051C8U6
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 64 Kbytes of Flash , 32 MHz CPU RoHS: Compliant | 4735 |
|
$1.9200 / $3.8200 | Buy Now |
|
STMicroelectronics | Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU RoHS: Compliant Min Qty: 1 | 4735 |
|
$2.3400 / $3.7400 | Buy Now |
|
Future Electronics | ARM® Cortex®-M0+ series Microcontroller IC 32-Bit 32MHz 64KB FLASH 48-UFQFPN RoHS: Compliant pbFree: Yes Min Qty: 1560 Package Multiple: 1560 Container: Tray | 0Tray |
|
$1.9900 | Buy Now |
DISTI #
STM32L051C8U6
|
Avnet Americas | MCU 32-bit ARM Cortex-M0+ RISC 64KB Flash 1.8V to 3.6V 48-Pin UFQFPN Tray - Trays (Alt: STM32L051C8U6) RoHS: Not Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$1.8671 / $2.1246 | Buy Now |
DISTI #
STM32L051C8U6
|
TME | IC: ARM microcontroller, 32MHz, UFQFPN48, 1.8÷3.6VDC, -40÷85°C Min Qty: 1 | 0 |
|
$2.3500 / $3.9400 | RFQ |
|
Ameya Holding Limited | 9195 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
STM32L051C8U6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L051C8U6
STMicroelectronics
Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | STMICROELECTRONICS | |
Reach Compliance Code | compliant | |
ECCN Code | 3A991.A.2 | |
HTS Code | 8542.31.00.01 | |
Factory Lead Time | 12 Weeks | |
Date Of Intro | 2019-10-28 | |
Samacsys Manufacturer | STMicroelectronics | |
Has ADC | YES | |
Address Bus Width | ||
Bit Size | 32 | |
Clock Frequency-Max | 25 MHz | |
DMA Channels | YES | |
External Data Bus Width | ||
Length | 5 mm | |
Number of I/O Lines | 27 | |
Number of Terminals | 32 | |
PWM Channels | YES | |
Package Code | HVQCCN | |
Package Shape | SQUARE | |
Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
Speed | 32 MHz | |
Supply Voltage-Max | 3.6 V | |
Supply Voltage-Min | 1.8 V | |
Supply Voltage-Nom | 3 V | |
Surface Mount | YES | |
Terminal Form | NO LEAD | |
Terminal Pitch | 0.5 mm | |
Terminal Position | QUAD | |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
Width | 5 mm | |
uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
