Part Details for STM32L151VCT6A by STMicroelectronics
Results Overview of STM32L151VCT6A by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L151VCT6A Information
STM32L151VCT6A by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L151VCT6A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STM32L151VCT6A-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 100LQFP Min Qty: 540 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$5.8893 | Buy Now |
|
DISTI #
STM32L151VCT6A
|
Avnet Americas | MCU 32-bit Low Power STM32L ARM Cortex-M3 RISC 256kB Flash 100-Pin LQFP Tray - Trays (Alt: STM32L151VCT6A) COO: Singapore RoHS: Compliant Min Qty: 540 Package Multiple: 540 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$4.9467 / $5.2559 | Buy Now |
|
DISTI #
511-STM32L151VCT6A
|
Mouser Electronics | ARM Microcontrollers - MCU STM32L15 Low Power M3 256kB 32MHz MCU RoHS: Compliant | 523 |
|
$5.8700 / $11.7400 | Buy Now |
|
|
STMicroelectronics | Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 3xOp-amp COO: France RoHS: Compliant Min Qty: 1 | 523 |
|
$7.0800 / $11.5100 | Buy Now |
|
|
Future Electronics | STM32L Series 256 kB Flash 32 kB RAM ARM Based 32-Bit Microcontroller - LQFP-100 RoHS: Compliant pbFree: Yes Min Qty: 540 Package Multiple: 90 Lead time: 13 Weeks Container: Tray | 0Tray |
|
$4.9500 | Buy Now |
|
|
Quest Components | RISC MICROCONTROLLER, 32-BIT, FLASH, 32MHZ, CMOS, PQFP100 | 12 |
|
$6.4463 / $12.8925 | Buy Now |
|
DISTI #
STM32L151VCT6A
|
IBS Electronics | ULTRA-LOW-POWER ARM CORTEX-M3 MCU WITH 256 KBYTES FLASH 32 MHZ CPU USB 3XOP-AMP Min Qty: 90 Package Multiple: 1 | 180 |
|
$6.4120 / $6.6220 | Buy Now |
|
DISTI #
STM32L151VCT6A
|
Avnet Silica | MCU 32bit Low Power STM32L ARM CortexM3 RISC 256kB Flash 100Pin LQFP Tray (Alt: STM32L151VCT6A) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32L151VCT6A
|
EBV Elektronik | MCU 32bit Low Power STM32L ARM CortexM3 RISC 256kB Flash 100Pin LQFP Tray (Alt: STM32L151VCT6A) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 5214 |
|
RFQ |
US Tariff Estimator: STM32L151VCT6A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM32L151VCT6A
STM32L151VCT6A CAD Models
-

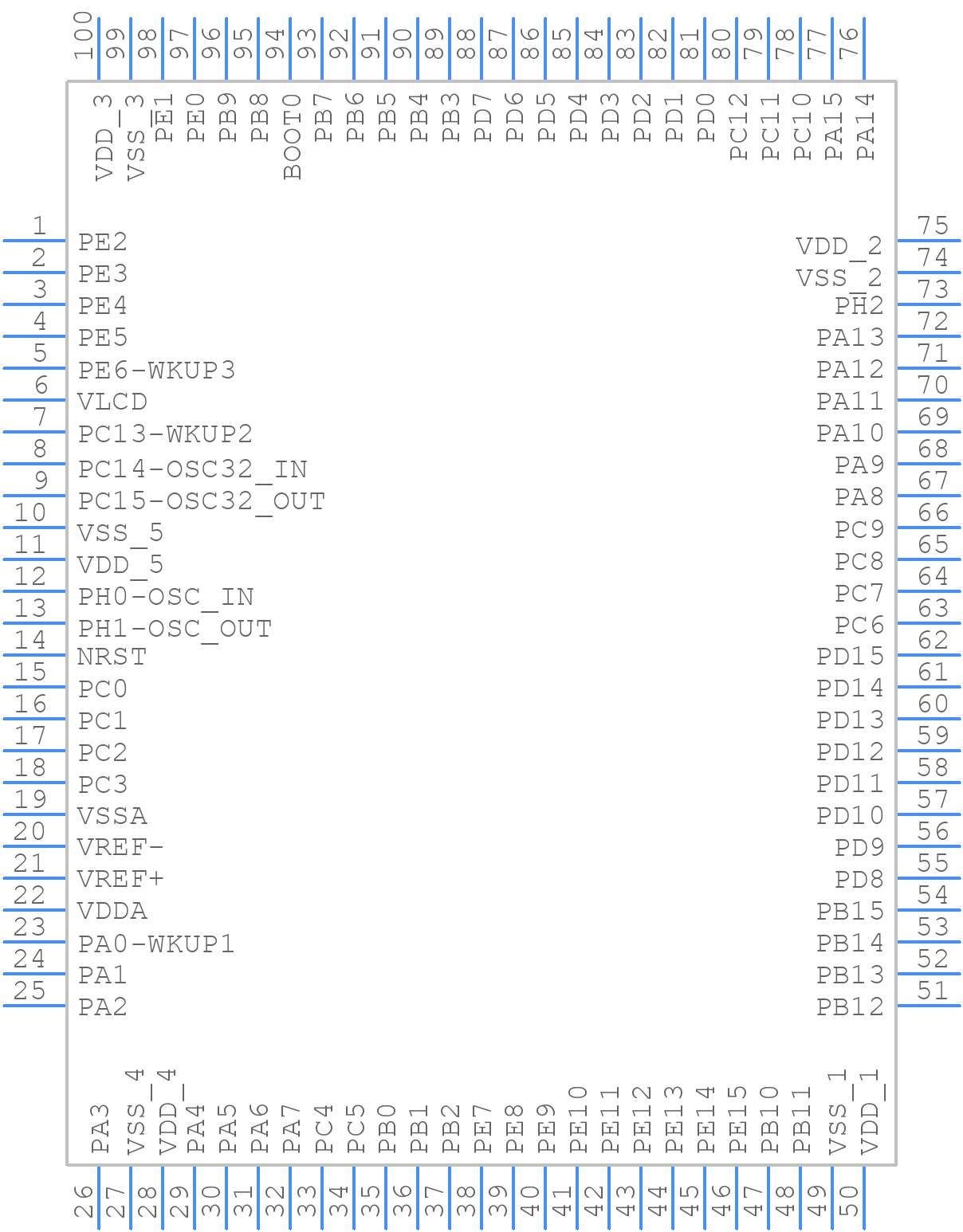

Part Symbol
-

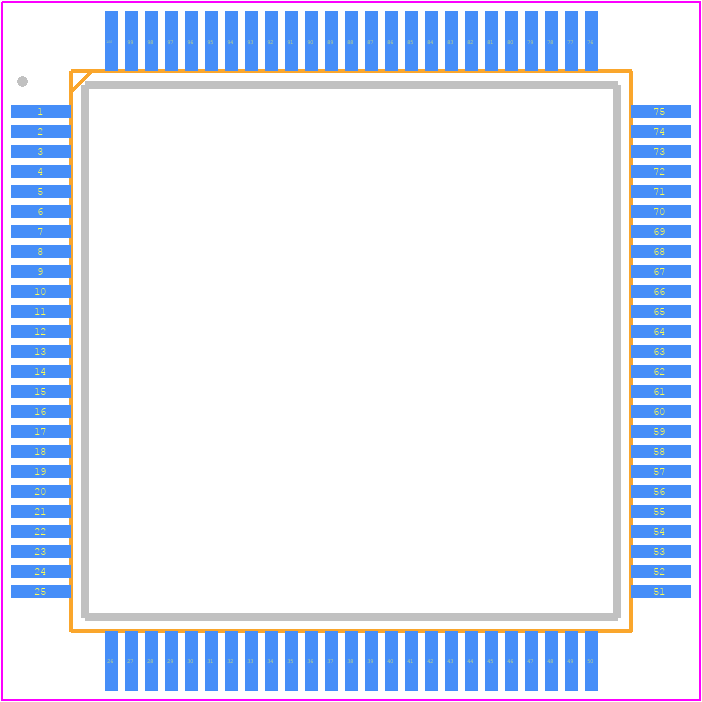

Footprint
-

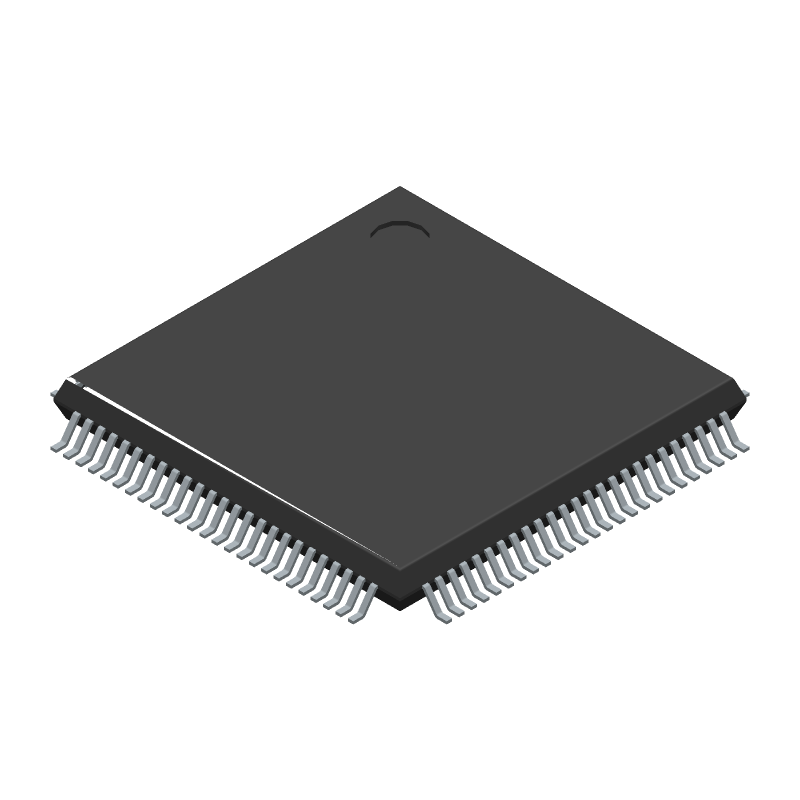

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM32L151VCT6A Part Data Attributes
|
|
STM32L151VCT6A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L151VCT6A
STMicroelectronics
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP100
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Package Description | Lfqfp, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cortex-M3 | |
| Clock Frequency-Max | 24 Mhz | |
| DAC Channels | Yes | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G100 | |
| Length | 14 Mm | |
| Number of DMA Channels | 12 | |
| Number of I/O Lines | 83 | |
| Number of Terminals | 100 | |
| Number of Timers | 10 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| RAM (bytes) | 32768 | |
| ROM (words) | 262144 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 32 Mhz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Width | 14 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
STM32L151VCT6A Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L151VCT6A is 32 MHz.
-
The STM32L151VCT6A has 256 KB of flash memory.
-
Yes, the STM32L151VCT6A can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
-
The power consumption of the STM32L151VCT6A in sleep mode is typically around 1.5 μA/MHz, but this can vary depending on the specific configuration and usage.
-
No, the STM32L151VCT6A does not have a built-in USB interface. However, it does have a USB device peripheral that can be used to implement a USB interface with an external transceiver.
