Power Circuits / Switching Regulator or Controllers / TLV62569DRLT
Datasheets
TLV62569DRLT by: Texas Instruments

2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-5X3 -40 to 125

Part Details for TLV62569DRLT by Texas Instruments

Results Overview of TLV62569DRLT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TLV62569DRLT Information

TLV62569DRLT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TLV62569DRLT Texas Instruments 2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-5X3 -40 to 125

Part Details for TLV62569DRLT

TLV62569DRLT CAD Models

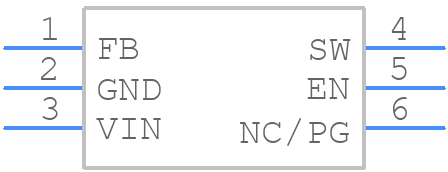

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

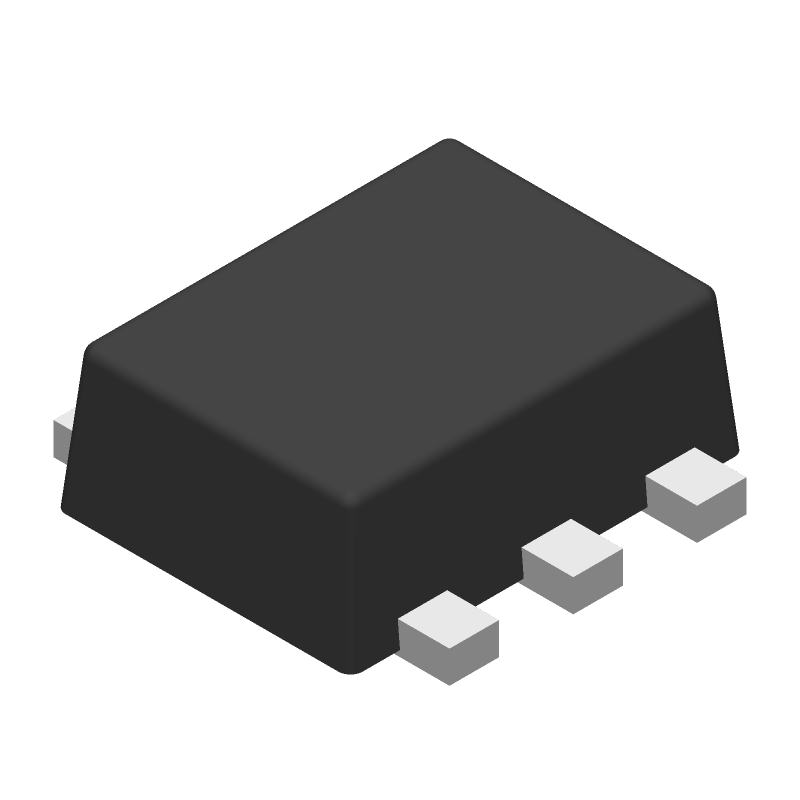

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TLV62569DRLT Part Data Attributes

Parametric Data
TLV62569DRLT Texas Instruments
Buy Now Datasheet
Compare Parts:
TLV62569DRLT Texas Instruments 2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-5X3 -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description SOT-6
Reach Compliance Code compliant
Date Of Intro 2017-10-18
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING REGULATOR
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 5.5 V
Input Voltage-Min 2.5 V
Input Voltage-Nom 5 V
JESD-30 Code S-PDSO-F6
JESD-609 Code e3
Length 1.6 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 2 A
Output Voltage-Max 5.5 V
Output Voltage-Min 0.6 V
Package Body Material PLASTIC/EPOXY
Package Code VSOF
Package Equivalence Code FL6,.06,20
Package Shape SQUARE
Package Style SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Seated Height-Max 0.6 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 1500 kHz
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form FLAT
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 1.6 mm

Alternate Parts for TLV62569DRLT

This table gives cross-reference parts and alternative options found for TLV62569DRLT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV62569DRLT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TLV62569DRLR Texas Instruments $0.5705 2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-5X3 -40 to 125 TLV62569DRLT vs TLV62569DRLR
TLV62569PDDCR Texas Instruments $0.0949 2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-23-THIN -40 to 125 TLV62569DRLT vs TLV62569PDDCR
TLV62569PDRLT Texas Instruments Check for Price 2.5V-5.5V input, 2-A high efficiency step-down buck converter in SOT23 and SOT563 package 6-SOT-5X3 -40 to 125 TLV62569DRLT vs TLV62569PDRLT

TLV62569DRLT Related Parts

TLV62569DRLT Frequently Asked Questions (FAQ)

  • The maximum input voltage that can be applied to the TLV62569DRLT is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent damage to the device.

  • To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 1uF and the input voltage should be well-regulated.

  • The maximum output current that the TLV62569DRLT can provide is 2A, but it's recommended to keep it below 1.5A for optimal performance and to prevent overheating.

  • The TLV62569DRLT has a fixed output voltage of 5V, but it can be adjusted using an external resistor divider network. The output voltage can be calculated using the formula: Vout = 5V * (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

  • The quiescent current of the TLV62569DRLT is typically around 20uA, but it can vary depending on the input voltage and output load.
