Capacitors / Ceramic Capacitors / UMK107B7474KA-TR
Datasheets
UMK107B7474KA-TR by: TAIYO YUDEN

Capacitor, Ceramic, Chip, General Purpose, 0.47uF, 50V, ±10%, X7R, 0603 (1608 mm), 0.031"T, -55º ~ +125ºC, 7" Reel/4mm pitch

Part Details for UMK107B7474KA-TR by TAIYO YUDEN

Results Overview of UMK107B7474KA-TR by TAIYO YUDEN

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UMK107B7474KA-TR Information

UMK107B7474KA-TR by TAIYO YUDEN is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UMK107B7474KA-TR

Part # Distributor Description Stock Price Buy
DISTI # 89T1077
Newark Capacitor, Mlcc, X7R, 0.47Uf, 50V, 0603, Reel, Capacitance:0.47Μf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:M Series, Product Length:1.6Mmrohs Compliant: Yes |Taiyo Yuden UMK107B7474KA-TR RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel 28000
  • 4,000 $0.0270
  • 8,000 $0.0220
  • 16,000 $0.0220
  • 24,000 $0.0210
$0.0210 / $0.0270 Buy Now
DISTI # 29X1407
Newark Capacitor, Mlcc, X7R, 0.47Uf, 50V, 0603, Capacitance:0.47Μf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:M Series, Product Length:1.6Mm Rohs Compliant: Yes |Taiyo Yuden UMK107B7474KA-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 370
  • 1 $0.1350
  • 25 $0.0640
  • 50 $0.0530
  • 100 $0.0420
  • 250 $0.0400
  • 500 $0.0360
  • 1,000 $0.0340
$0.0340 / $0.1350 Buy Now
DISTI # UMK107B7474KA-TR
Avnet Americas Multilayer Ceramic Capacitor, 0.47 uF, 50 V, ? 10%, X7R, 0603 [1608 Metric] - Tape and Reel (Alt: UMK107B7474KA-TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel 784000
  • 4,000 $0.0197
  • 8,000 $0.0192
  • 16,000 $0.0189
  • 24,000 $0.0188
  • 32,000 $0.0187
$0.0187 / $0.0197 Buy Now
DISTI # 89T1077
Avnet Americas Multilayer Ceramic Capacitor, 0.47 uF, 50 V, ? 10%, X7R, 0603 [1608 Metric] - Tape and Reel (Alt: 89T1077) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days Container: Reel 28000 Partner Stock
  • 1 $0.0250
  • 8,000 $0.0220
  • 24,000 $0.0210
  • 24,000 $0.0230
$0.0210 / $0.0250 Buy Now
DISTI # 29X1407
Avnet Americas Multilayer Ceramic Capacitor, 0.47 uF, 50 V, ? 10%, X7R, 0603 [1608 Metric] - Product that comes on tape, but is not reeled (Alt: 29X1407) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 48 Weeks, 3 Days Container: Ammo Pack 370 Partner Stock
  • 1 $0.1660
  • 25 $0.0640
  • 50 $0.0530
  • 100 $0.0420
$0.0420 / $0.1660 Buy Now
DISTI # UMK107B7474KA-TR
Avnet Americas Multilayer Ceramic Capacitor, 0.47 uF, 50 V, ? 10%, X7R, 0603 [1608 Metric] - Tape and Reel (Alt: UMK107B7474KA-TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0210
  • 8,000 $0.0197
  • 16,000 $0.0190
  • 24,000 $0.0183
  • 32,000 $0.0176
$0.0176 / $0.0210 Buy Now
Bristol Electronics   7387
RFQ
DISTI # SMC-UMK107B7474KA-TR
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 3379
RFQ
LCSC 50V 470nF X7R 10% 0603 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 50
  • 50 $0.0186
  • 500 $0.0154
  • 1,500 $0.0136
  • 4,000 $0.0111
  • 24,000 $0.0102
  • 48,000 $0.0097
$0.0097 / $0.0186 Buy Now
Vyrian Capacitors 413891
RFQ

Part Details for UMK107B7474KA-TR

UMK107B7474KA-TR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

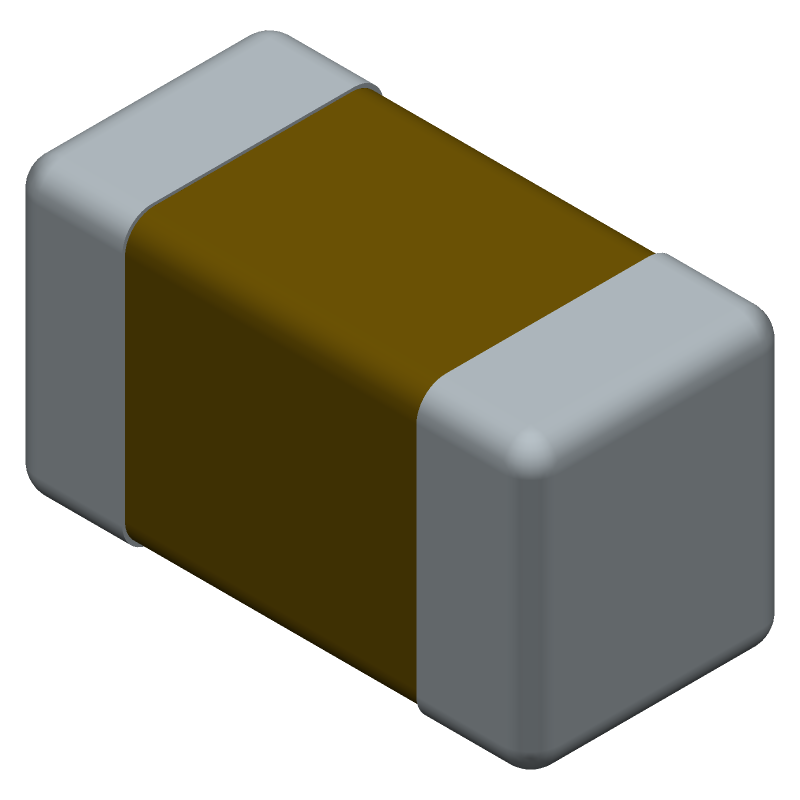

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UMK107B7474KA-TR Part Data Attributes

Parametric Data
UMK107B7474KA-TR TAIYO YUDEN
Buy Now Datasheet
Compare Parts:
UMK107B7474KA-TR TAIYO YUDEN Capacitor, Ceramic, Chip, General Purpose, 0.47uF, 50V, ±10%, X7R, 0603 (1608 mm), 0.031"T, -55º ~ +125ºC, 7" Reel/4mm pitch
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIYO YUDEN CO LTD
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 11 Weeks
Samacsys Manufacturer TAIYO YUDEN
Capacitance 0.47 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Tan Delta 0.1
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn)
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for UMK107B7474KA-TR

This table gives cross-reference parts and alternative options found for UMK107B7474KA-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UMK107B7474KA-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0603A0500474KXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP UMK107B7474KA-TR vs 0603A0500474KXT
SCM10B474KBNH Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.47uF, 0603, UMK107B7474KA-TR vs SCM10B474KBNH
C1608X7R1H474KT TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT UMK107B7474KA-TR vs C1608X7R1H474KT
VCMS0603474K050XB Vatronics Technologies Limited Check for Price Ceramic Capacitor, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.47uF, 0603 UMK107B7474KA-TR vs VCMS0603474K050XB
0603F0500474KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP UMK107B7474KA-TR vs 0603F0500474KXB
CL10B474KB8GNNC Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.47uF, 0603, UMK107B7474KA-TR vs CL10B474KB8GNNC
0603X474K500ST-C Capax Technologies Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP UMK107B7474KA-TR vs 0603X474K500ST-C
0603J0500474KXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP UMK107B7474KA-TR vs 0603J0500474KXT
CC0603KRX7R9BB474 YAGEO Corporation $0.1246 Capacitor, Ceramic, Chip, General Purpose, 0.47uF, 50V, ±10%, X7R, 0603 (1608 mm), 0.034"T, -55º ~ +125ºC, 7" Reel/Paper Tape UMK107B7474KA-TR vs CC0603KRX7R9BB474
MCASU168SB7474KTCA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP UMK107B7474KA-TR vs MCASU168SB7474KTCA01

UMK107B7474KA-TR Related Parts

UMK107B7474KA-TR Frequently Asked Questions (FAQ)

  • The recommended land pattern for UMK107B7474KA-TR is a rectangular pad with a size of 2.5mm x 1.6mm, with a solder mask opening of 2.2mm x 1.3mm.

  • UMK107B7474KA-TR is a moisture-sensitive device. It is recommended to store it in a dry environment (less than 20% RH) and to bake it at 125°C for 24 hours before reflow soldering.

  • The maximum reflow temperature for UMK107B7474KA-TR is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.

  • Yes, UMK107B7474KA-TR is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering to prevent mechanical stress.

  • To ensure the reliability of UMK107B7474KA-TR in high-temperature applications, it is recommended to follow the manufacturer's guidelines for temperature derating, to use a thermal interface material, and to ensure good thermal conduction to a heat sink or PCB.
