Memory Flash Memories W25Q16JVSNIQ

W25Q16JVSNIQ
Winbond Electronics Corp
Description: Flash, 2MX8, PDSO8, SOIC-8

Overview of W25Q16JVSNIQ by Winbond Electronics Corp

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

Price & Stock for W25Q16JVSNIQ by Winbond Electronics Corp

Part # Manufacturer Description Stock Price Buy
DISTI # W25Q16JVSNIQ-ND
DigiKey IC FLASH 16MBIT SPI/QUAD 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube 194403
In Stock
  • 1 $0.5200
  • 10 $0.5080
  • 25 $0.4716
  • 50 $0.4690
  • 100 $0.4164
  • 300 $0.4112
  • 500 $0.4049
  • 1,000 $0.3941
  • 5,000 $0.3543
$0.3543 / $0.5200 Buy Now
DISTI # 454-W25Q16JVSNIQ
Mouser Electronics NOR Flash spiFlash, 3V, 16M-bit, 4Kb Uniform Sector RoHS: Compliant 60965
  • 1 $0.5000
  • 10 $0.4530
  • 100 $0.3970
  • 500 $0.3810
  • 2,500 $0.3410
  • 10,000 $0.3350
$0.3350 / $0.5000 Buy Now
Bristol Electronics   Min Qty: 6 75
  • 6 $0.9375
  • 23 $0.6094
$0.6094 / $0.9375 Buy Now
Quest Components FLASH, 2MX8, PDSO8 60
  • 1 $1.2500
  • 5 $1.0000
  • 21 $0.6250
$0.6250 / $1.2500 Buy Now
Quest Components FLASH, 2MX8, PDSO8 32
Buy Now
ComSIT USA SPIFLASH MULTI-I/O MEMORY FEATURE THE POPULAR SERIAL PERIPHERAL INTERFACE (SPI) Flash, 2MX8, PDSO8 RoHS: Compliant Stock EU - 2500
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
NAC spiFlash, 3V, 16M-bit, 4Kb Uniform Sector, SOP8(150mil) Package RoHS: Compliant Min Qty: 1 Package Multiple: 100 1700
  • 1 $0.3700
  • 500 $0.3500
$0.3500 / $0.3700 Buy Now
DISTI # SMC-W25Q16JVSNIQ
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 2500
RFQ
Velocity Electronics Our Stock 30000
RFQ
DISTI # W25Q16JVSNIQ
Avnet Asia NOR Flash Serial-SPI 3.3V 16Mbit 2M x 8bit 6ns 8-Pin SOIC Tube (Alt: W25Q16JVSNIQ) RoHS: Compliant Min Qty: 30000 Package Multiple: 100 Lead time: 20 Weeks, 0 Days 0
RFQ
Sense Electronic Company Limited SOP8 1400
RFQ
Win Source Electronics IC FLASH 16M SPI 133MHZ 8SOIC 288000
  • 235 $0.2170
  • 565 $0.1780
  • 870 $0.1730
  • 1,200 $0.1670
  • 1,545 $0.1620
  • 2,070 $0.1450
$0.1450 / $0.2170 Buy Now

CAD Models for W25Q16JVSNIQ by Winbond Electronics Corp
You need to Sign In or Sign Up to download CAD models.

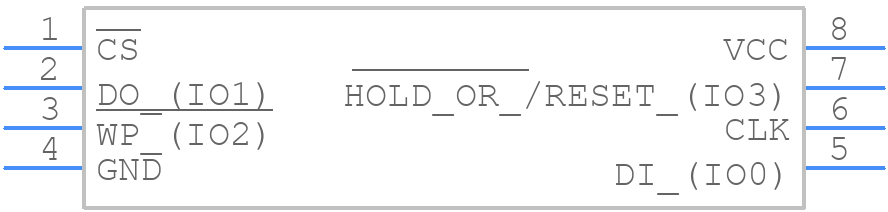

  • Part Symbol
    Part Symbol
  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for W25Q16JVSNIQ by Winbond Electronics Corp
Parametric Data

W25Q16JVSNIQ
Winbond Electronics Corp
Buy Now
-
-
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
WINBOND ELECTRONICS CORP
Package Description
SOIC-8
Reach Compliance Code
compliant
ECCN Code
EAR99
HTS Code
8542.32.00.51
Date Of Intro
2016-10-04
Samacsys Manufacturer
Winbond
Alternate Memory Width
1
Clock Frequency-Max (fCLK)
133 MHz
Data Retention Time-Min
20
Endurance
100000 Write/Erase Cycles
JESD-30 Code
R-PDSO-G8
JESD-609 Code
e3
Length
4.85 mm
Memory Density
16777216 bit
Memory IC Type
FLASH
Memory Width
8
Number of Functions
1
Number of Terminals
8
Number of Words
2097152 words
Number of Words Code
2000000
Operating Mode
SYNCHRONOUS
Operating Temperature-Max
85 °C
Operating Temperature-Min
-40 °C
Organization
2MX8
Output Characteristics
3-STATE
Package Body Material
PLASTIC/EPOXY
Package Code
SOP
Package Equivalence Code
SOP8,.25
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE
Parallel/Serial
SERIAL
Programming Voltage
3 V
Seated Height-Max
1.75 mm
Serial Bus Type
QSPI
Standby Current-Max
0.000015 A
Supply Current-Max
0.02 mA
Supply Voltage-Max (Vsup)
3.6 V
Supply Voltage-Min (Vsup)
2.7 V
Supply Voltage-Nom (Vsup)
3 V
Surface Mount
YES
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
TIN
Terminal Form
GULL WING
Terminal Pitch
1.27 mm
Terminal Position
DUAL
Type
NOR TYPE
Width
3.9 mm
Write Protection
HARDWARE/SOFTWARE
Want to compare parts?
  1. W25Q16JVSNIQ
    Winbond Electronics Corp
    Flash, 2MX8, PDSO8, SOIC-8
    VS

Alternate Parts for W25Q16JVSNIQ

This table gives cross-reference parts and alternative options found for W25Q16JVSNIQ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q16JVSNIQ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number Description Manufacturer Compare
W25Q16JVSNJQ Flash, 2MX8, PDSO8, SOIC-8 Winbond Electronics Corp W25Q16JVSNIQ vs W25Q16JVSNJQ
W25Q16JVSNJM Flash, 2MX8, PDSO8, SOIC-8 Winbond Electronics Corp W25Q16JVSNIQ vs W25Q16JVSNJM
Part Number Description Manufacturer Compare
M25PE16-VMW6TG Flash, 2MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 Micron Technology Inc W25Q16JVSNIQ vs M25PE16-VMW6TG
M25P16-VMW6TP Flash, 2MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 Micron Technology Inc W25Q16JVSNIQ vs M25P16-VMW6TP
M25P16-VMN3PB Flash, 2MX8, PDSO8, ROHS COMPLIANT, PACKAGE Micron Technology Inc W25Q16JVSNIQ vs M25P16-VMN3PB
M25PX16-VMW6G Flash, 2MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 Micron Technology Inc W25Q16JVSNIQ vs M25PX16-VMW6G
M25PX16SVMW6P EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 Numonyx Memory Solutions W25Q16JVSNIQ vs M25PX16SVMW6P
M25PX16STVMN3G EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 Numonyx Memory Solutions W25Q16JVSNIQ vs M25PX16STVMN3G
M25P16-VMW3TPBA Flash, 2MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP-8 Micron Technology Inc W25Q16JVSNIQ vs M25P16-VMW3TPBA
M25PX16SOVMW6TGBA EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP-8 Micron Technology Inc W25Q16JVSNIQ vs M25PX16SOVMW6TGBA
M25PX16-VMN3TG EEPROM, 2MX8, Serial, CMOS, PDSO8, Micron Technology Inc W25Q16JVSNIQ vs M25PX16-VMN3TG
M25PX16-VMW6EPA EEPROM, Micron Technology Inc W25Q16JVSNIQ vs M25PX16-VMW6EPA
