Part Details for XFL4015-471MEC by Coilcraft Inc
Results Overview of XFL4015-471MEC by Coilcraft Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
XFL4015-471MEC Information
XFL4015-471MEC by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for XFL4015-471MEC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2289211RL
|
Farnell | INDUCTOR, 470NH, 11.2A, 20%, PWR, 89MHZ COO: China RoHS: Compliant Min Qty: 100 Lead time: 16 Weeks, 1 Days Container: Tape & Reel | 7941 |
|
$1.1041 / $1.3303 | Buy Now |
|
DISTI #
2289211
|
Farnell | INDUCTOR, 470NH, 11.2A, 20%, PWR, 89MHZ COO: China RoHS: Compliant Min Qty: 1 Lead time: 16 Weeks, 1 Days Container: Cut Tape | 7941 |
|
$1.1041 / $2.5542 | Buy Now |
|
DISTI #
2457-XFL4015-471MEC-ND
|
DigiKey | FIXED IND 470NH 9.1A 8.36MOHM SM Min Qty: 1 Container: Strip MARKETPLACE PRODUCT |
11480 In Stock |
|
$1.2900 / $3.2700 | Buy Now |
|
DISTI #
994-XFL4015-471MEC
|
Mouser Electronics | Power Inductors - SMD 470nH Shld 11.2A 8.36mOhm AECQ2 RoHS: Compliant | 18980 |
|
$0.8700 / $2.0200 | Buy Now |
|
|
Bristol Electronics | 33 |
|
RFQ | ||
|
|
Coilcraft Direct | Power inductor, 20% tol, SMT, RoHS, halogen-free RoHS: Compliant pbFree: No Min Qty: 1 | 15166 |
|
$0.5800 / $2.1800 | Buy Now |
|
|
Chip Stock | GeneralPurposeInductor,0.47uH,20%,1Element,Composite-Core,SMD,1616 | 11500 |
|
RFQ | |
|
|
LCSC | 470nH 6.6A SMD4x4mm Fixed Inductors RoHS | 1100 |
|
$0.7755 / $1.4098 | Buy Now |
|
|
Win Source Electronics | Power inductor, 20% tol, SMT, RoHS, halogen-free | 26820 |
|
$0.6686 / $1.0028 | Buy Now |
US Tariff Estimator: XFL4015-471MEC by Coilcraft Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for XFL4015-471MEC
XFL4015-471MEC CAD Models
-
Part Symbol
-
Footprint
-

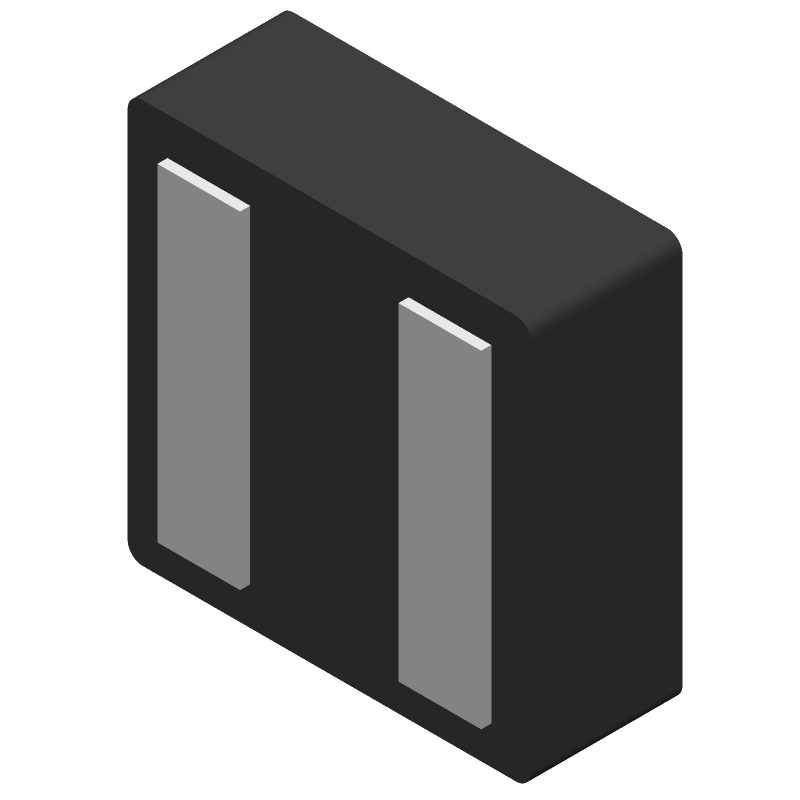

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
XFL4015-471MEC Part Data Attributes
|
|
XFL4015-471MEC
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
XFL4015-471MEC
Coilcraft Inc
General Purpose Inductor, 0.47uH, 20%, 1 Element, Composite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 1616 | |
| Construction | Shielded | |
| Core Material | Composite | |
| DC Resistance | 0.00836 Ω | |
| Inductance-Nom (L) | 0.47 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e2 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.6 Mm | |
| Package Length | 4 Mm | |
| Package Style | Smt | |
| Package Width | 4 Mm | |
| Packing Method | Tr, Embossed Plastic, 7 Inch | |
| Rated Current-Max | 11.2 A | |
| Reference Standard | Aec-Q200 | |
| Self Resonance Frequency | 89 Mhz | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Finish | Tin/Silver (Sn96.5ag3.5) | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | One Surface | |
| Test Frequency | 1 Mhz | |
| Tolerance | 20% |
Alternate Parts for XFL4015-471MEC
This table gives cross-reference parts and alternative options found for XFL4015-471MEC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XFL4015-471MEC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| XFL4015-471MSB | Coilcraft Inc | Check for Price | General Purpose Inductor, | XFL4015-471MEC vs XFL4015-471MSB |
| XFL4015-471MED | Coilcraft Inc | Check for Price | General Purpose Inductor, 0.47uH, 20%, 1 Element, Composite-Core, SMD, 1616, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT | XFL4015-471MEC vs XFL4015-471MED |
| XFL4015-471MSD | Coilcraft Inc | Check for Price | General Purpose Inductor, | XFL4015-471MEC vs XFL4015-471MSD |
| XFL4015-471MSC | Coilcraft Inc | Check for Price | General Purpose Inductor, | XFL4015-471MEC vs XFL4015-471MSC |
| XFL4015-471MEB | Coilcraft Inc | Check for Price | General Purpose Inductor, 0.47uH, 20%, 1616, | XFL4015-471MEC vs XFL4015-471MEB |
| XFL4015-471MTC | Coilcraft Inc | Check for Price | General Purpose Inductor, | XFL4015-471MEC vs XFL4015-471MTC |
XFL4015-471MEC Frequently Asked Questions (FAQ)
-
The recommended land pattern for the XFL4015-471MEC can be found in the Coilcraft Land Pattern Recommendation document, which provides a suggested PCB footprint for optimal performance and reliability.
-
The XFL4015-471MEC's inductance and Q values are sensitive to temperature. To minimize the impact of temperature, ensure proper PCB layout, use a thermally conductive material, and consider using a temperature-compensated inductor or a different inductor with a more stable temperature coefficient.
-
The maximum current rating for the XFL4015-471MEC is not explicitly stated in the datasheet. However, the current rating can be calculated using the inductor's resistance, inductance, and the application's specific requirements. Consult with Coilcraft's application engineers or use their online tools to determine the maximum current rating for your specific application.
-
Yes, the XFL4015-471MEC is suitable for high-frequency applications. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that the operating frequency is below the SRF to maintain optimal performance.
-
To ensure the XFL4015-471MEC meets your application's EMI requirements, consider using shielding, filtering, or other EMI mitigation techniques. Additionally, consult with Coilcraft's application engineers or use their online tools to select the most suitable inductor for your specific application.
