Part Details for 24AA025UID-I/SN by Microchip Technology Inc
Results Overview of 24AA025UID-I/SN by Microchip Technology Inc
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
24AA025UID-I/SN Information
24AA025UID-I/SN by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 24AA025UID-I/SN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01X0468
|
Newark | Serial Eeprom, 2Kbit, 400Khz, Soic-8, Memory Size:2Kbit, Eeprom Memory Configuration:2 Blk (128 X 8Bit), Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:400Khz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Rohs Compliant: Yes |Microchip 24AA025UID-I/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1423 |
|
$0.3400 / $0.3610 | Buy Now |
|
DISTI #
24AA025UID-I/SN-ND
|
DigiKey | IC EEPROM 2KBIT I2C 400KHZ 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Tube |
1100 In Stock |
|
$0.3300 / $0.3500 | Buy Now |
|
DISTI #
24AA025UID-I/SN
|
Avnet Americas | EEPROM, Unique 32-bit Serial Number, 2 Kbit, 2 BLK (128 x 8bit), I2C, 400 kHz, SOIC, 8 Pins - Rail/Tube (Alt: 24AA025UID-I/SN) COO: Thailand RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube | 200 |
|
$0.3000 / $0.3200 | Buy Now |
|
DISTI #
579-24AA025UID-I/SN
|
Mouser Electronics | EEPROM 2K I2C EE Unique ID RoHS: Compliant | 905 |
|
$0.3300 / $0.3500 | Buy Now |
|
DISTI #
E54:1762_06976679
|
Arrow Electronics | EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks | Europe - 12 |
|
$0.3180 / $0.3410 | Buy Now |
|
DISTI #
V99:2348_06422791
|
Arrow Electronics | EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2304 | Americas - 4 |
|
$0.1121 / $0.3087 | Buy Now |
|
DISTI #
24AA025UID-I/SN
|
Microchip Technology Inc | 2K, 256 X 8 1.8V SERIAL EE UID, IND, SOIC, Projected EOL: 2039-05-22 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube | In Stock: 1450 and Alternates Available |
|
$0.2700 / $0.3500 | Buy Now |
|
DISTI #
70322982
|
RS | 2K I2C EE, UNIQUE ID, WITH ADDRESS PINS, UPPER HALF PERMANENTLY WRITE-PROTECTED Min Qty: 1100 Package Multiple: 1 Lead time: 46 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3500 | RFQ |
|
|
Onlinecomponents.com | EEPROM - Unique 32-bit Serial Number - Serial I²C (2-Wire) - 1.8V/2.5V/3.3V/5V - 2 Kbit (128 x 8bit x2) - 8 Pin SOIC - Tube COO: Thailand RoHS: Compliant |
1700 In Stock 1450 Factory Stock |
|
$0.2842 / $0.3464 | Buy Now |
|
DISTI #
66420828
|
Verical | EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 200 Package Multiple: 100 Date Code: 2304 | Americas - 1700 |
|
$0.4061 / $0.4631 | Buy Now |
US Tariff Estimator: 24AA025UID-I/SN by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 24AA025UID-I/SN
24AA025UID-I/SN CAD Models
-

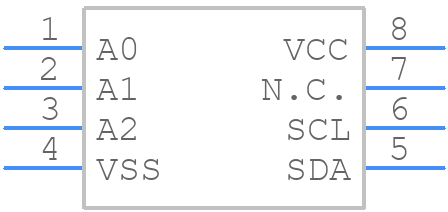

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
24AA025UID-I/SN Part Data Attributes
|
|
24AA025UID-I/SN
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
24AA025UID-I/SN
Microchip Technology Inc
2K, 256 X 8 1.8V SERIAL EE UID, IND
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.23 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOIC-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 8 Weeks | |
| Additional Feature | 1.7v To 2.5v @ 0.1mhz | |
| Clock Frequency-Max (fCLK) | 0.4 Mhz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010dddr | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Memory Density | 2048 Bit | |
| Memory IC Type | Eeprom | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 256 Words | |
| Number of Words Code | 256 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256x8 | |
| Output Characteristics | Open-Drain | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.23 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Parallel/Serial | Serial | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 5 V | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 1.75 Mm | |
| Serial Bus Type | I2c | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.003 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm | |
| Write Cycle Time-Max (tWC) | 5 Ms |
Alternate Parts for 24AA025UID-I/SN
This table gives cross-reference parts and alternative options found for 24AA025UID-I/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24AA025UID-I/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 24AA025E48-I/SN | Microchip Technology Inc | $0.3720 | 24AA025E48 device, which will be a pre-prog. version of the 24AA024H (DFAX7). | 24AA025UID-I/SN vs 24AA025E48-I/SN |
| 24AA025E64-I/SN | Microchip Technology Inc | $0.3767 | 2K, 256 X 8 1.8V SERIAL EE EUI64, IND | 24AA025UID-I/SN vs 24AA025E64-I/SN |
| 24AA025E48-E/SN | Microchip Technology Inc | $0.5175 | 2K, 256 X 8 SERIAL EE EUI48, E-TEMP | 24AA025UID-I/SN vs 24AA025E48-E/SN |
| 24AA025E64-E/SN | Microchip Technology Inc | $0.5330 | 2K, 256 X 8 1.8V SERIAL EE EUI64, E-TEMP | 24AA025UID-I/SN vs 24AA025E64-E/SN |
| 24AA025E64T-E/SN | Microchip Technology Inc | Check for Price | 2K, 256 X 8 1.8V SERIAL EE EUI64, E-TEMP | 24AA025UID-I/SN vs 24AA025E64T-E/SN |
| 24AA025E64T-I/SN | Microchip Technology Inc | Check for Price | 2K, 256 X 8 1.8V SERIAL EE EUI64, IND | 24AA025UID-I/SN vs 24AA025E64T-I/SN |
24AA025UID-I/SN Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the 24AA025UID-I/SN is 400 kHz.
-
The 24AA025UID-I/SN has a capacity of 256 bytes (2 kbits) of electrically erasable programmable read-only memory (EEPROM).
-
The operating voltage range for the 24AA025UID-I/SN is 1.7V to 5.5V.
-
Yes, the 24AA025UID-I/SN is compatible with the I2C bus protocol.
-
The 24AA025UID-I/SN has a minimum of 1 million write cycles.
