5.0SMDJ24A Information
5.0SMDJ24A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 5.0SMDJ24A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11AC4518
|
Newark | Tvs Diode, 5Kw, 24V, Unidir, Do-214Ab, Product Range:5.0Smdj Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:24V, Clamping Voltage Vc Max:38.9V, Diode Case Style:Do-214Ab, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Littelfuse 5.0SMDJ24A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 6000 |
|
$1.2400 | Buy Now |
|
DISTI #
08AC3598
|
Newark | Tvs Diode, 5Kw, 24V, Unidir, Do-214Ab, Product Range:5.0Smdj Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:24V, Clamping Voltage Vc Max:38.9V, Diode Case Style:Do-214Ab, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Littelfuse 5.0SMDJ24A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1848 |
|
$1.5500 / $1.6400 | Buy Now |
|
DISTI #
5.0SMDJ24ACT-ND
|
DigiKey | TVS DIODE 24VWM 38.9VC DO214AB Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
10380 In Stock |
|
$0.7673 / $1.2500 | Buy Now |
|
DISTI #
576-5.0SMDJ24A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 5kW 24V 5% Uni-Directional RoHS: Compliant | 1640 |
|
$0.7830 / $1.2000 | Buy Now |
|
DISTI #
E02:0323_00224477
|
Arrow Electronics | TVS Diode Single Uni-Dir 24V 5KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2538 | Europe - 3000 |
|
$0.8586 | Buy Now |
|
DISTI #
V72:2272_06425708
|
Arrow Electronics | TVS Diode Single Uni-Dir 24V 5KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2218 Container: Cut Strips | Americas - 842 |
|
$0.7356 / $1.7438 | Buy Now |
|
DISTI #
72244559
|
RS | TVS DIODE, 5.0SMDJ SERIES, 38.9V CLAMPING MAX, 1 CHANNEL, 129A, DO-214AB Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 3000 |
|
$0.8900 | Buy Now |
|
|
Future Electronics | 5.0SMDJ Series 5 kW 24 V Uni-Directional SMT TVS Diode - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 3000Reel |
|
$0.7200 | Buy Now |
|
|
Future Electronics | 5.0SMDJ Series 5 kW 24 V Uni-Directional SMT TVS Diode - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.7200 | Buy Now |
|
DISTI #
91703725
|
Verical | TVS Diode Single Uni-Dir 24V 5KW 2-Pin SMC T/R RoHS: Exempt Min Qty: 3000 Package Multiple: 3000 Date Code: 2538 | Americas - 3000 |
|
$0.8519 | Buy Now |
US Tariff Estimator: 5.0SMDJ24A by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5.0SMDJ24A
5.0SMDJ24A CAD Models
-
Part Symbol
-

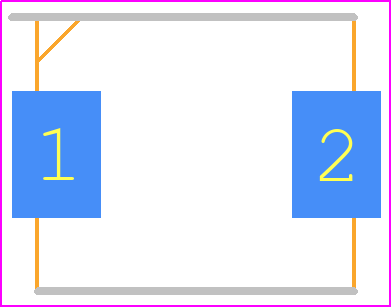

Footprint
-

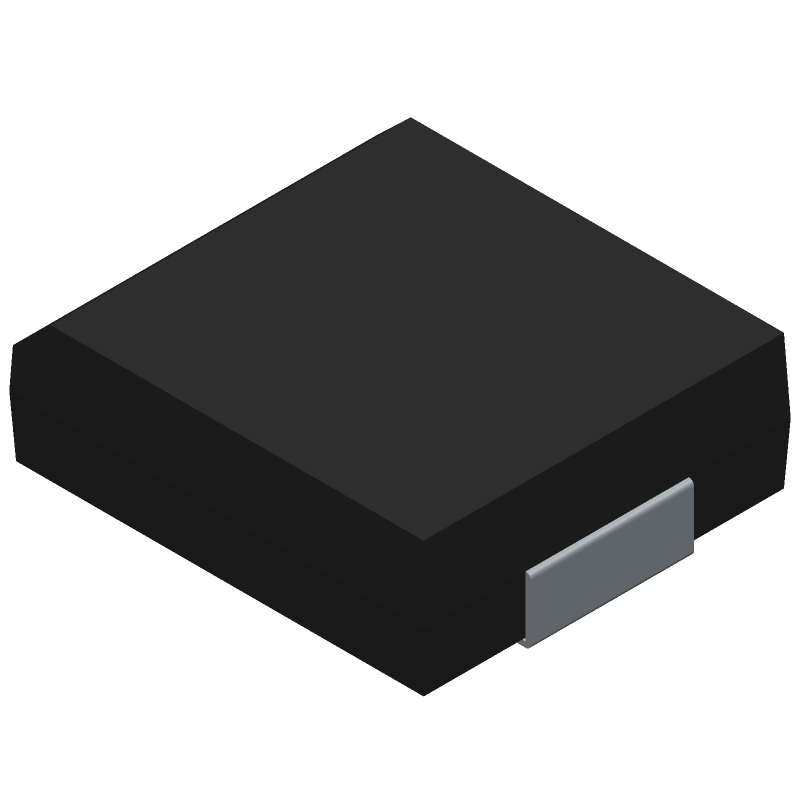

3D Model
