AD5516ABC-3 Information
AD5516ABC-3 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5516ABC-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 475 |
|
RFQ | ||
|
|
Rochester Electronics | D/A Converter, 1 Func, Serial Input Loading, PBGA74 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 2175 |
|
$34.7100 / $43.3900 | Buy Now |
US Tariff Estimator: AD5516ABC-3 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5516ABC-3
AD5516ABC-3 CAD Models
-

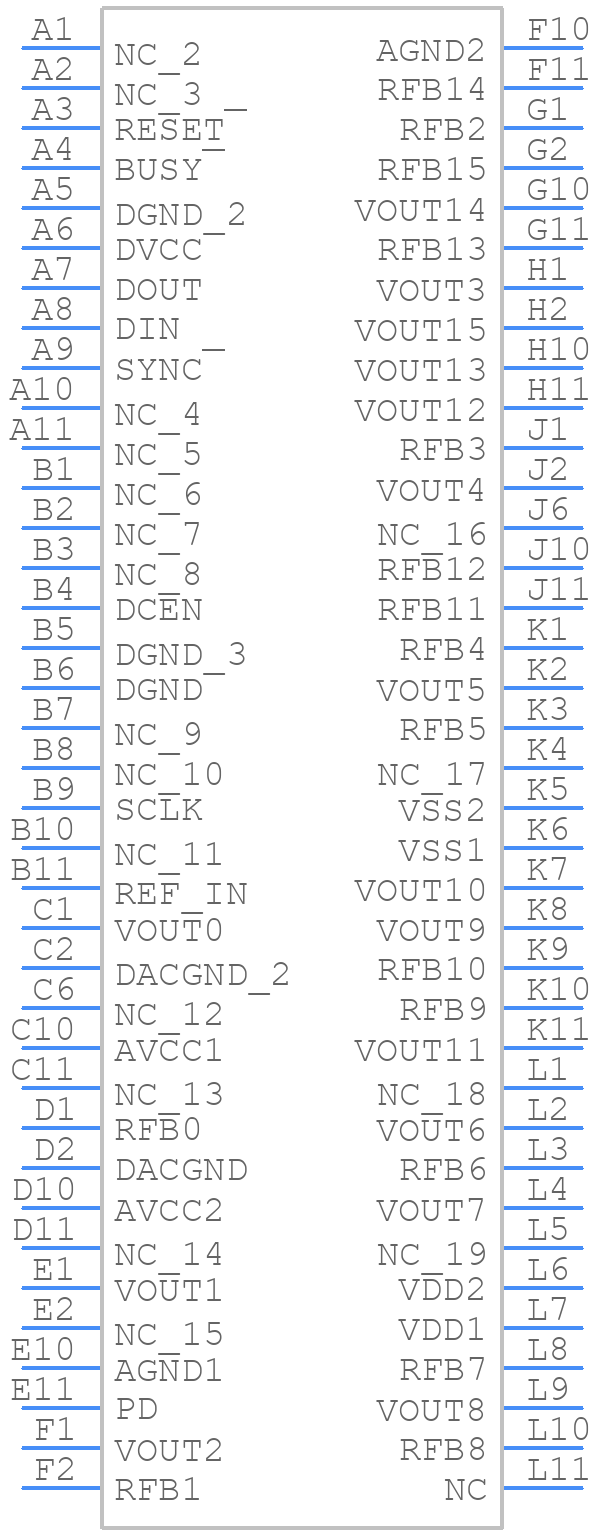

Part Symbol
-

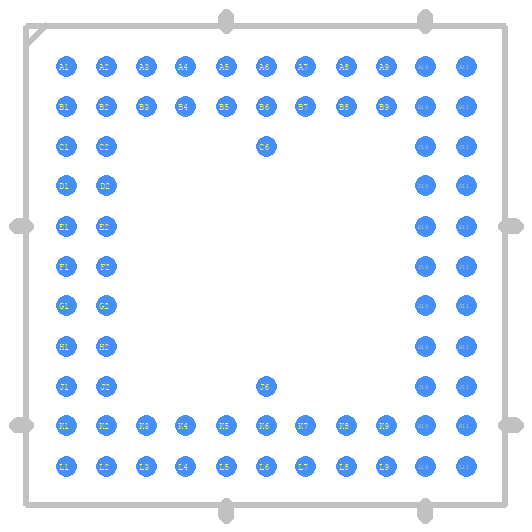

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5516ABC-3 Part Data Attributes
|
|
AD5516ABC-3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5516ABC-3
Analog Devices Inc
D/A Converter, 1 Func, Serial Input Loading, PBGA74
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | BGA | |
| Package Description | Lbga, Bga74,11x11,40 | |
| Pin Count | 74 | |
| Manufacturer Package Code | BC-74 | |
| Reach Compliance Code | Unknown | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 10 V | |
| Analog Output Voltage-Min | -10 V | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | S-PBGA-B74 | |
| JESD-609 Code | e0 | |
| Length | 12 Mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 74 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LBGA | |
| Package Equivalence Code | BGA74,11X11,40 | |
| Package Shape | Square | |
| Package Style | Grid Array, Low Profile | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.7 Mm | |
| Settling Time-Max | 32 µS | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin Lead | |
| Terminal Form | Ball | |
| Terminal Pitch | 1 Mm | |
| Terminal Position | Bottom | |
| Width | 12 Mm |
