Part Details for AD5721RBRUZ-RL7 by Analog Devices Inc
Results Overview of AD5721RBRUZ-RL7 by Analog Devices Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD5721RBRUZ-RL7 Information
AD5721RBRUZ-RL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5721RBRUZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6666
|
Newark | Da Converter, 12Bit, Tssop, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:4 Wire, Spi, Serial, Supply Voltage Range:-16.5V To 0V, 4.75V To 30V, Adc/Dac Case Style:Tssop, No. Of Pins:16Pins, Input Channel Type:Serial Rohs Compliant: Yes |Analog Devices AD5721RBRUZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 413 |
|
$4.2600 / $9.4800 | Buy Now |
|
DISTI #
505-AD5721RBRUZ-RL7CT-ND
|
DigiKey | IC DAC 12BIT V-OUT 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
169 In Stock |
|
$4.2625 / $9.4800 | Buy Now |
|
DISTI #
584-AD5721RBRUZ-RL7
|
Mouser Electronics | Digital to Analog Converters - DAC 12-BIT , 5ppm Reference RoHS: Compliant | 757 |
|
$4.2600 / $9.4800 | Buy Now |
|
DISTI #
V72:2272_06209792
|
Arrow Electronics | DAC 1-CH Segment 12-bit 16-Pin TSSOP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2324 Container: Cut Strips | Americas - 763 |
|
$4.3730 / $5.1170 | Buy Now |
|
|
Analog Devices Inc | 12-BIT , 5ppm Reference Min Qty: 1 Package Multiple: 1000 | 34 |
|
$4.2625 / $9.4800 | Buy Now |
|
DISTI #
79323791
|
Verical | DAC 1-CH Segment 12-bit 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2324 | Americas - 763 |
|
$4.3730 / $5.1170 | Buy Now |
|
|
Bristol Electronics | 100 |
|
RFQ | ||
|
|
Quest Components | 80 |
|
$11.8215 / $14.3775 | Buy Now | |
|
DISTI #
V72:2272_06209792
|
Arrow Electronics | DAC 1-CH Segment 12-bit 16-Pin TSSOP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2324 Container: Cut Strips | Americas - 763 |
|
$4.3730 / $5.1170 | Buy Now |
|
DISTI #
79323791
|
Verical | DAC 1-CH Segment 12-bit 16-Pin TSSOP T/R COO: Philippines RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2324 | Americas - 763 |
|
$4.3730 / $5.1170 | Buy Now |
US Tariff Estimator: AD5721RBRUZ-RL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5721RBRUZ-RL7
AD5721RBRUZ-RL7 CAD Models
-
Part Symbol
-
Footprint
-

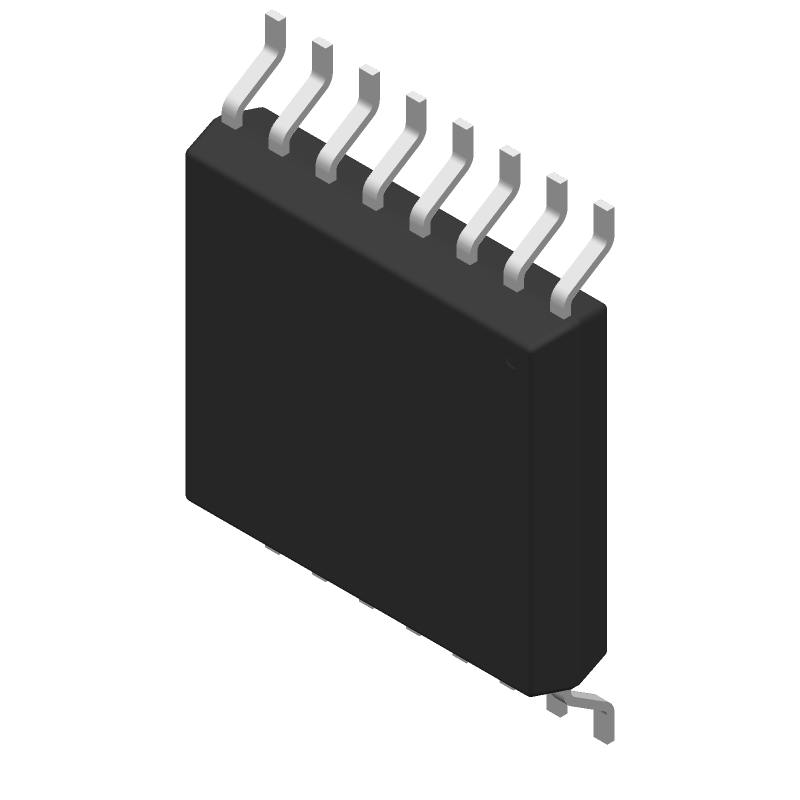

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5721RBRUZ-RL7 Part Data Attributes
|
|
AD5721RBRUZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5721RBRUZ-RL7
Analog Devices Inc
D/A Converter, 1 Func, Serial Input Loading, 9us Settling Time, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 10.5 V | |
| Analog Output Voltage-Min | -10.5 V | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 1 | |
| Negative Supply Voltage-Nom | -15 V | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Settling Time-Nom (tstl) | 9 µS | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
AD5721RBRUZ-RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD5721RBRUZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the accuracy of the AD5721RBRUZ-RL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR435, and to minimize noise and interference in the circuit. Additionally, the output voltage should be filtered using a low-pass filter to remove any high-frequency noise.
-
The recommended power-up sequence for the AD5721RBRUZ-RL7 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and finally the input voltage (VIN). This sequence helps to prevent any potential latch-up or damage to the device.
-
To troubleshoot issues with the AD5721RBRUZ-RL7's output voltage, first check the input voltage and ensure it's within the recommended range. Then, verify that the device is properly configured and that the output voltage is not being loaded excessively. If the issue persists, check for any noise or interference in the circuit and ensure that the device is properly decoupled.
-
The maximum output current of the AD5721RBRUZ-RL7 is 10 mA. Exceeding this current limit can cause the device to overheat and potentially fail.
