AD637JQ Information
AD637JQ by Analog Devices Inc is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD637JQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD637JQ-ND
|
DigiKey | IC RMS TO DC CONVERTER 14CERDIP Min Qty: 125 Lead time: 10 Weeks Container: Tube | Limited Supply - Call |
|
$45.3105 | Buy Now |
|
|
Analog Devices Inc | RMS-DC CONVERTER IC Package Multiple: 25 | 100 |
|
$28.6100 / $49.6100 | Buy Now |
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
DISTI #
AD637JQ
|
TME | IC: RMS/DC converter, 3÷18VDC, DIP14 Min Qty: 1 | 0 |
|
$63.7000 / $92.6000 | RFQ |
|
DISTI #
AD637JQ
|
Richardson RFPD | MISCELLANEOUS CONVERTER RoHS: Not Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
|
Vyrian | Converters | 3524 |
|
RFQ | |
|
|
Win Source Electronics | IC RMS/DC CONV PRECISION 14-CDIP | 1701 |
|
$47.2727 / $70.9091 | Buy Now |
US Tariff Estimator: AD637JQ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD637JQ
AD637JQ CAD Models
-

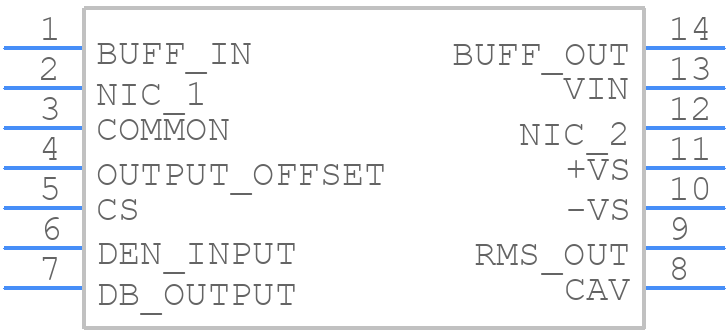

Part Symbol
-

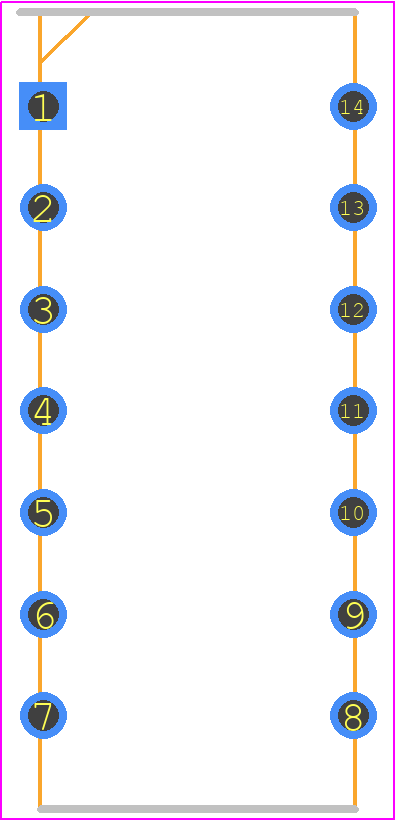

Footprint
