AD7466BRTZ-REEL7 Information
AD7466BRTZ-REEL7 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7466BRTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8691
|
Newark | Adc, 12Bit, 200Ksps, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices AD7466BRTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3043 |
|
$5.2600 / $8.4300 | Buy Now |
|
DISTI #
AD7466BRTZREEL7CT-ND
|
DigiKey | IC ADC 12BIT SAR SOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4629 In Stock |
|
$5.4223 / $9.3000 | Buy Now |
|
DISTI #
584-AD7466BRTZ-R7
|
Mouser Electronics | Analog to Digital Converters - ADC 12 BIT LOW VOLTAGE LOW POWER ADC IC RoHS: Compliant | 1870 |
|
$5.0800 / $10.8100 | Buy Now |
|
DISTI #
V72:2272_06211415
|
Arrow Electronics | 1-Channel Single ADC SAR 200ksps 12-bit Serial Medical 6-Pin SOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2325 Container: Cut Strips | Americas - 1442 |
|
$5.2190 / $6.5270 | Buy Now |
|
|
Analog Devices Inc | 12 BIT LOW VOLTAGE LOW POWER A Min Qty: 1 Package Multiple: 3000 | 326 |
|
$3.8700 / $10.8100 | Buy Now |
|
|
Bisco Industries | 5 |
|
Buy Now | ||
|
DISTI #
69196177
|
Verical | 1-Channel Single ADC SAR 200ksps 12-bit Serial Medical 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2325 | Americas - 1442 |
|
$5.2190 / $6.5270 | Buy Now |
|
|
Quest Components | ADC, SUCCESSIVE APPROXIMATION, 12-BIT, 1 FUNC, 1 CHANNEL, SERIAL ACCESS, CMOS, PDSO6 | 20 |
|
$6.4824 / $9.7236 | Buy Now |
|
|
Quest Components | ADC, SUCCESSIVE APPROXIMATION, 12-BIT, 1 FUNC, 1 CHANNEL, SERIAL ACCESS, CMOS, PDSO6 | 7 |
|
$5.5125 / $11.0250 | Buy Now |
|
DISTI #
V72:2272_06211415
|
Arrow Electronics | 1-Channel Single ADC SAR 200ksps 12-bit Serial Medical 6-Pin SOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2325 Container: Cut Strips | Americas - 1442 |
|
$5.2190 / $6.5270 | Buy Now |
US Tariff Estimator: AD7466BRTZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD7466BRTZ-REEL7
AD7466BRTZ-REEL7 CAD Models
-

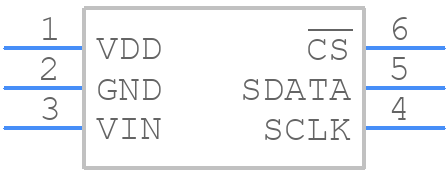

Part Symbol
-
Footprint
-

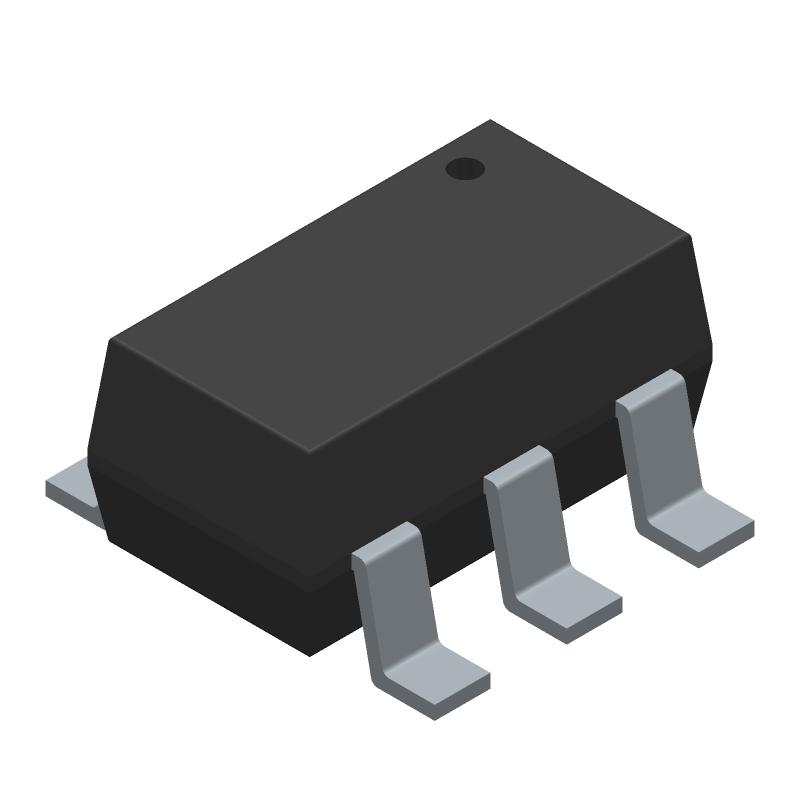

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD7466BRTZ-REEL7 Part Data Attributes
|
|
AD7466BRTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7466BRTZ-REEL7
Analog Devices Inc
ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO6
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sot-23, 6 Pin | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 3.6 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 4.7 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Linearity Error-Max (EL) | 0.0366% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.1 Mhz | |
| Sample and Hold / Track and Hold | Track | |
| Seated Height-Max | 1.45 Mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 Mm |
