ADC0832CCWMX Information

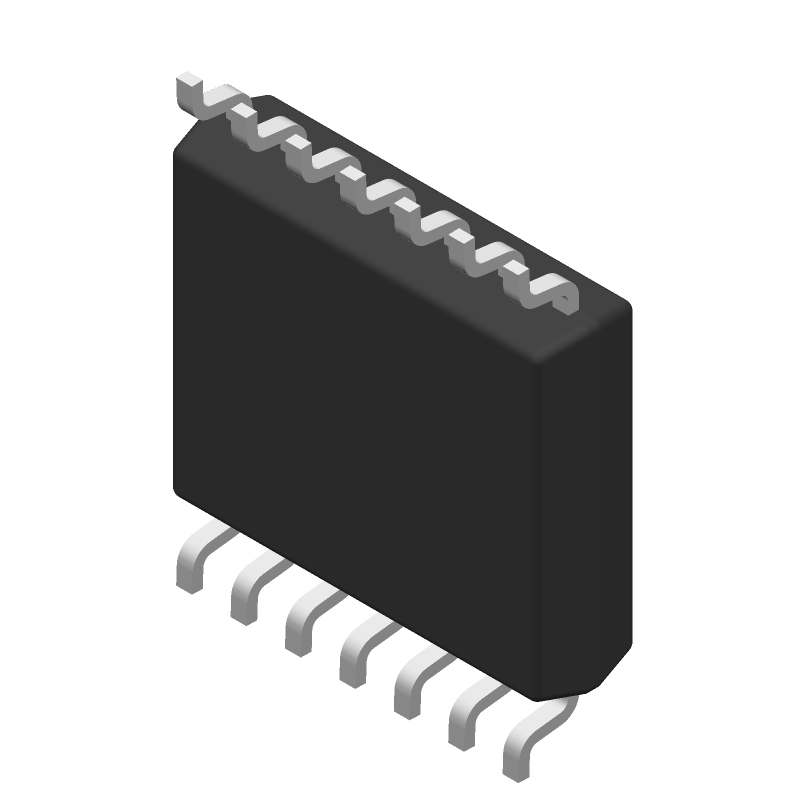

ADC0832CCWMX by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
US Tariff Estimator: ADC0832CCWMX by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for ADC0832CCWMX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC0832CCWMX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The recommended clock frequency for the ADC0832 is between 100 kHz to 640 kHz. However, it can operate up to 1 MHz, but with reduced accuracy.
The ADC0832 outputs data in a serial format, with the most significant bit (MSB) first. The output data is 8 bits, with the 2 most significant bits being '0' and the remaining 6 bits representing the analog-to-digital conversion result.
The conversion time of the ADC0832 is approximately 100 clock cycles. This means that at a clock frequency of 640 kHz, the conversion time would be around 156 μs.
Yes, the ADC0832 can be used with a microcontroller that has a 5V supply, but the VCC pin of the ADC0832 should be connected to a 3.3V supply. The digital output of the ADC0832 is 5V tolerant, so it can be directly connected to a 5V microcontroller.
The ADC0832 has a shutdown pin (SHDN) that can be used to power down the device. When the SHDN pin is pulled low, the device enters a low-power state, reducing the power consumption to less than 1 μA.
