ADC10DV200CISQE/NOPB Information
ADC10DV200CISQE/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC10DV200CISQE/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADC10DV200CISQE/NOPBTR-ND
|
DigiKey | IC ADC 10BIT PIPELINED 60WQFN Min Qty: 250 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$96.7116 | Buy Now |
|
DISTI #
926-A10DV200CISQENPB
|
Mouser Electronics | Analog to Digital Converters - ADC Dual-Channel 10-Bit 200-MSPS Analog-to A A 926-AD10DV200CISQNPB RoHS: Compliant | 0 |
|
$96.7100 | Order Now |
|
DISTI #
86275666
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 2500 |
|
$94.5125 / $118.1375 | Buy Now |
|
DISTI #
86275652
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1301 | Americas - 2159 |
|
$94.5125 / $118.1375 | Buy Now |
|
DISTI #
86274881
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1501 | Americas - 167 |
|
$94.5125 / $118.1375 | Buy Now |
|
|
Rochester Electronics | A/D Converter, 10-Bit, 2 Func, 1 Channel, CMOS, PQCC60 RoHS: Compliant Status: Active Min Qty: 1 | 4826 |
|
$75.6100 / $94.5100 | Buy Now |
|
DISTI #
86275666
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 2500 |
|
$94.5125 / $118.1375 | Buy Now |
|
DISTI #
86275652
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1301 | Americas - 2159 |
|
$94.5125 / $118.1375 | Buy Now |
|
DISTI #
86274881
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1501 | Americas - 167 |
|
$94.5125 / $118.1375 | Buy Now |
|
DISTI #
86275666
|
Verical | 2-Channel Dual ADC Pipelined 200Msps 10-bit Parallel/LVDS 60-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 2500 |
|
$94.5125 / $118.1375 | Buy Now |
US Tariff Estimator: ADC10DV200CISQE/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADC10DV200CISQE/NOPB
ADC10DV200CISQE/NOPB CAD Models
-

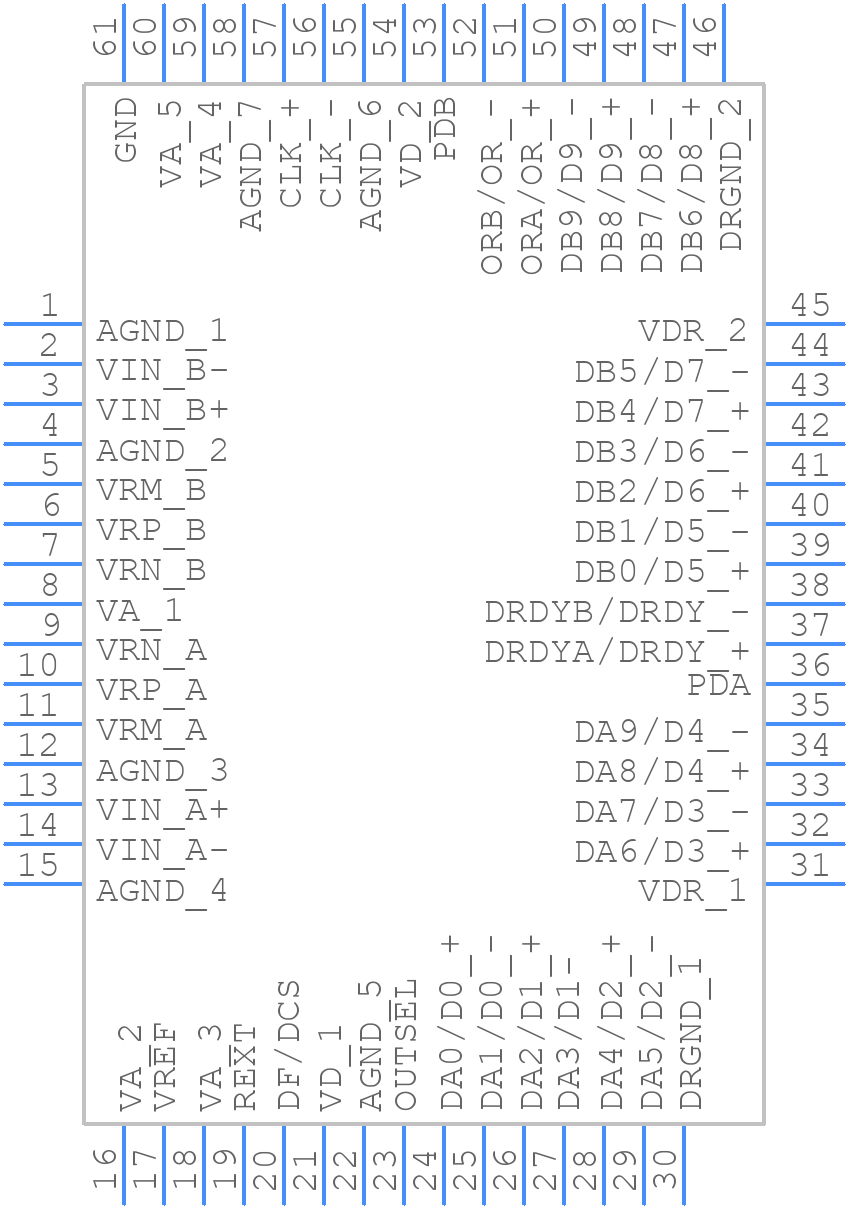

Part Symbol
-

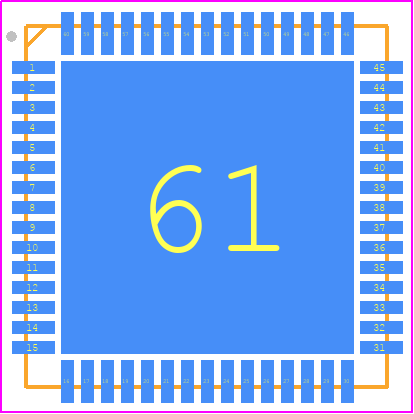

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADC10DV200CISQE/NOPB Part Data Attributes
|
|
ADC10DV200CISQE/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC10DV200CISQE/NOPB
Texas Instruments
ADC, Proprietary Method, 10-Bit, 1 Func, 2 Channel, Parallel, Word Access, CMOS, PQCC60
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, Lcc60,.35sq,20 | |
| Pin Count | 60 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Peak-To-Peak Input Voltage Range(V) : 1.5 | |
| Analog Input Voltage-Max | 1.5 V | |
| Analog Input Voltage-Min | -1.5 V | |
| Conversion Time-Max | 0.005 µS | |
| Converter Type | Adc, Proprietary Method | |
| JESD-30 Code | S-PQCC-N60 | |
| JESD-609 Code | e3 | |
| Length | 9 Mm | |
| Linearity Error-Max (EL) | 0.0898% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 60 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC60,.35SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 200 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 0.8 Mm | |
| Supply Current-Max | 184 Ma | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 Mm |
Alternate Parts for ADC10DV200CISQE/NOPB
This table gives cross-reference parts and alternative options found for ADC10DV200CISQE/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC10DV200CISQE/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC10DV200CISQ | National Semiconductor Corporation | Check for Price | ADC, Proprietary Method, 10-Bit, 1 Func, 2 Channel, Parallel, Word Access, CMOS | ADC10DV200CISQE/NOPB vs ADC10DV200CISQ |
ADC10DV200CISQE/NOPB Frequently Asked Questions (FAQ)
-
The recommended input impedance is 1 kΩ to 10 kΩ. This ensures that the ADC can accurately sample the input signal without distortion or attenuation.
-
To optimize the ADC's performance for high-frequency signals, use a low-pass filter or an anti-aliasing filter to remove high-frequency noise and ensure that the input signal is within the ADC's bandwidth. Additionally, use a high-quality clock source and ensure that the ADC is properly terminated.
-
The maximum clock frequency for the ADC10DV200CISQE/NOPB is 200 MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock source.
-
Metastability issues can occur when the ADC's output data is not properly synchronized with the clock signal. To handle this, use a synchronizer or a metastability resolver circuit to ensure that the output data is properly aligned with the clock signal.
-
The recommended power supply decoupling for the ADC10DV200CISQE/NOPB is to use a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed as close to the ADC's power pins as possible. This helps to reduce noise and ensure stable operation.
