ADS5277IPFP Information
ADS5277IPFP by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS5277IPFP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-18309-ND
|
DigiKey | IC ADC 10BIT 80-HTQFP Min Qty: 96 Container: Tray |
0 Tray |
|
$77.6807 | Buy Now |
|
DISTI #
595-ADS5277IPFP
|
Mouser Electronics | Analog to Digital Converters - ADC 8-Ch 10-Bit 65 MSPS A 595-ADS5277IPFPT A A 595-ADS5277IPFPT RoHS: Compliant | 0 |
|
$74.8000 | Order Now |
|
DISTI #
85962363
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1401 | Americas - 2427 |
|
$60.3375 / $75.4250 | Buy Now |
|
DISTI #
85962297
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 491 |
|
$60.3375 / $75.4250 | Buy Now |
|
DISTI #
85965979
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 96 |
|
$60.3375 / $75.4250 | Buy Now |
|
DISTI #
85962863
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0701 | Americas - 72 |
|
$60.3375 / $75.4250 | Buy Now |
|
|
Rochester Electronics | ADC, Proprietary Method, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PQFP80 RoHS: Compliant Status: Active Min Qty: 1 | 3089 |
|
$48.2700 / $60.3400 | Buy Now |
|
DISTI #
85962363
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1401 | Americas - 2427 |
|
$60.3375 / $75.4250 | Buy Now |
|
DISTI #
85962297
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1201 | Americas - 491 |
|
$60.3375 / $75.4250 | Buy Now |
|
DISTI #
85965979
|
Verical | 8-Channel Octal ADC Pipelined 65Msps 10-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 96 |
|
$60.3375 / $75.4250 | Buy Now |
US Tariff Estimator: ADS5277IPFP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADS5277IPFP
ADS5277IPFP CAD Models
-

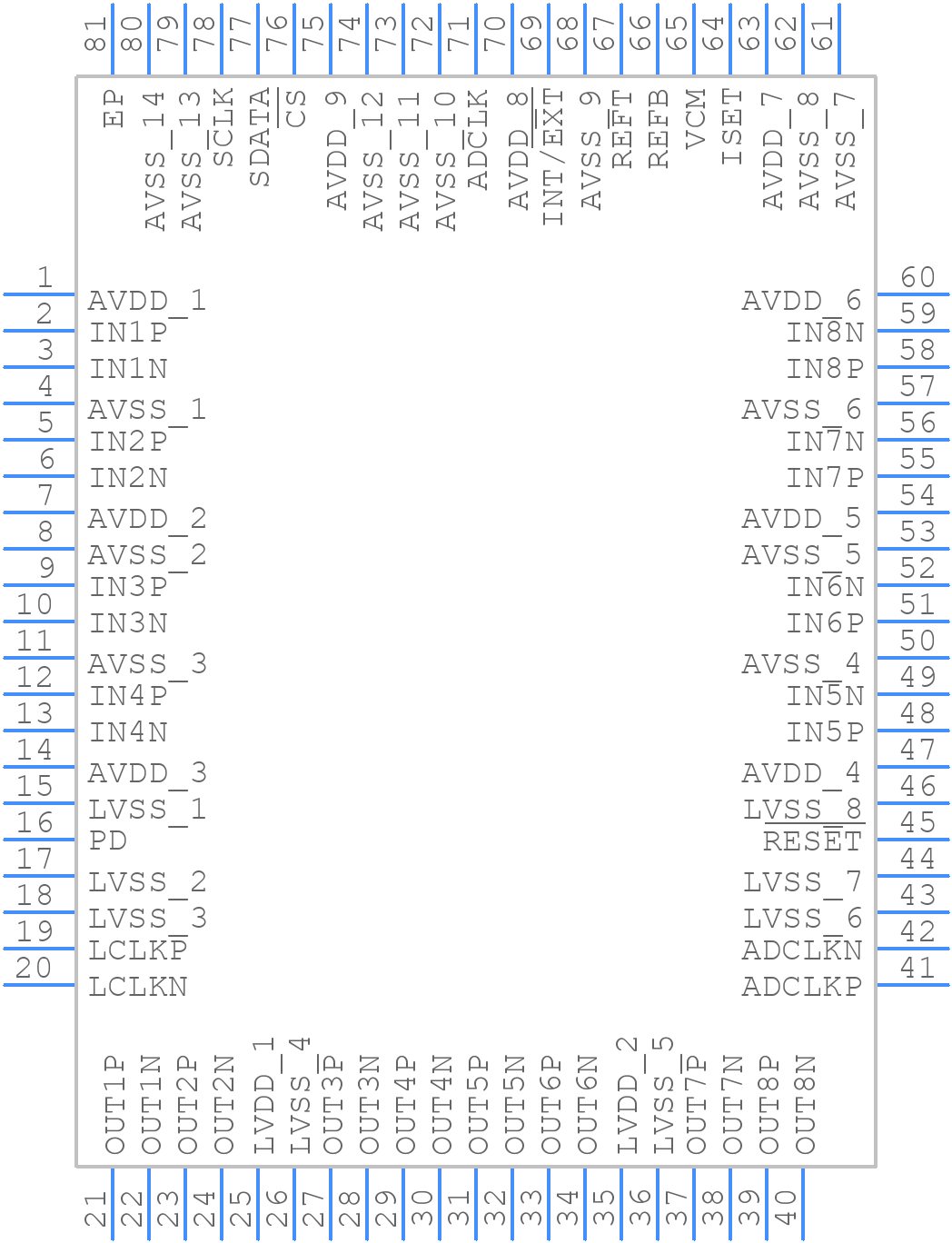

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADS5277IPFP Part Data Attributes
|
|
ADS5277IPFP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS5277IPFP
Texas Instruments
ADC, Proprietary Method, 10-Bit, 1 Func, 8 Channel, Parallel, Word Access, CMOS, PQFP80
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Package Description | Htfqfp-80 | |
| Pin Count | 80 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.30 | |
| Additional Feature | Peak-To-Peak Input Voltage Range(V) : 2 | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Converter Type | Adc, Proprietary Method | |
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e4 | |
| Length | 12 Mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 80 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP80,.55SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 65 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 Mm |
