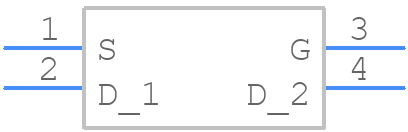

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSS192,115 by Nexperia
Results Overview of BSS192,115 by Nexperia
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BSS192,115 Information
BSS192,115 by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSS192,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34R3037
|
Newark | Mosfet Transistor, P Channel, -200 Ma, -240 V, 12 Ohm, -10 V, -2.8 V Rohs Compliant: Yes |Nexperia BSS192,115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 13064 |
|
$0.9220 / $1.2200 | Buy Now |
|
DISTI #
86AK7300
|
Newark | Mosfets, Transistor Polarity:P Channel, Continuous Drain Current Id:-200Ma, Drain Source Voltage Vds:-240V, On Resistance Rds(On):12Ohm, Rds(On) Test Voltage Vgs:-10V, Threshold Voltage Vgs:-2.8V, Power Dissipation Pd:1W, Transistor Rohs Compliant: Yes |Nexperia BSS192,115 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 4000 |
|
$0.4400 / $0.4640 | Buy Now |
|
DISTI #
1727-4934-1-ND
|
DigiKey | MOSFET P-CH 240V 200MA SOT89 Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
792 In Stock |
|
$0.2344 / $0.9500 | Buy Now |
|
DISTI #
BSS192,115
|
Avnet Americas | Trans MOSFET P-CH 240V 0.2A 4-Pin(3+Tab) SOT-89 T/R - Tape and Reel (Alt: BSS192,115) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 53 Weeks, 1 Days Container: Tape & Reel | 0 |
|
$0.1731 / $0.2007 | Buy Now |
|
DISTI #
771-BSS192115
|
Mouser Electronics | MOSFETs BSS192/SOT89/MPT3 RoHS: Compliant | 5981 |
|
$0.2600 / $1.0300 | Buy Now |
|
DISTI #
92054320
|
Verical | Trans MOSFET P-CH 240V 0.2A 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 838 Package Multiple: 1 Date Code: 2301 | Americas - 1000 |
|
$0.3084 / $0.4476 | Buy Now |
|
|
Rochester Electronics | Small Signal Field-Effect Transistor, 0.2A, 240V, P-Channel MOSFET, TO-243AA RoHS: Compliant Status: Active Min Qty: 1 | 1000 |
|
$0.2467 / $0.3979 | Buy Now |
|
DISTI #
BSS192.115
|
TME | Transistor: P-MOSFET, unipolar, -240V, -0.12A, 560mW, SC62,SOT89 Min Qty: 1 | 0 |
|
$0.3670 / $0.6300 | RFQ |
|
|
Chip Stock | InaPackof10,P-ChannelMOSFET,200mA,240V,3-PinSOT-89NexperiaBSS192,115 | 50000 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 6000 |
|
RFQ |
Part Details for BSS192,115
BSS192,115 CAD Models
BSS192,115 Part Data Attributes
|
|
BSS192,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BSS192,115
Nexperia
BSS192 - 240 V, P-channel vertical D-MOS transistor@en-us SOT-89 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | SOT-89 | |
| Package Description | Sc-62, To-243, 3 Pin | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT89 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Case Connection | Drain | |
| Configuration | Single With Built-In Diode | |
| DS Breakdown Voltage-Min | 240 V | |
| Drain Current-Max (ID) | 0.2 A | |
| Drain-source On Resistance-Max | 12 Ω | |
| FET Technology | Metal-Oxide Semiconductor | |
| Feedback Cap-Max (Crss) | 15 Pf | |
| JEDEC-95 Code | TO-243AA | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | Enhancement Mode | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-Channel | |
| Reference Standard | Iec-60134 | |
| Surface Mount | Yes | |
| Terminal Finish | Tin | |
| Terminal Form | Flat | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
Alternate Parts for BSS192,115
This table gives cross-reference parts and alternative options found for BSS192,115. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BSS192,115, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 933943950135 | Nexperia | Check for Price | Small Signal Field-Effect Transistor, 0.2A I(D), 240V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-243AA | BSS192,115 vs 933943950135 |
| BSS192 | Nexperia | Check for Price | Small Signal Field-Effect Transistor, 0.2A I(D), 240V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-243AA | BSS192,115 vs BSS192 |
BSS192,115 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BSS192,115 is -55°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
-
The recommended storage condition for the BSS192,115 is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less, and at a temperature range of -40°C to 30°C.
-
Yes, the BSS192,115 is suitable for high-frequency applications up to 1 GHz, but it's essential to follow proper PCB design and layout guidelines to minimize parasitic effects.
-
To prevent ESD damage, handle the BSS192,115 with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded.
