DAC38RF97IAAV Information
DAC38RF97IAAV by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DAC38RF97IAAV | Texas Instruments | Dual-Channel, 14-Bit, 6-GSPS, 12x-24x Interpolating, 6-GHz GSM PLL Digital-to-Analog Converter (DAC) 144-FCBGA -40 to 85 | |
| DAC38RF97IAAVR | Texas Instruments | Dual-Channel, 14-Bit, 6-GSPS, 12x-24x Interpolating, 6-GHz GSM PLL Digital-to-Analog Converter (DAC) 144-FCBGA -40 to 85 |
Price & Stock for DAC38RF97IAAV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-DAC38RF97IAAV-ND
|
DigiKey | IC DAC 14BIT 144-FCBGA Min Qty: 2 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
1626 In Stock |
|
$189.6300 | Buy Now |
|
DISTI #
296-46604-ND
|
DigiKey | IC DAC 14BIT 144-FCBGA Min Qty: 2 Lead time: 18 Weeks Container: Tray | Temporarily Out of Stock |
|
$205.0741 | Buy Now |
|
DISTI #
595-DAC38RF97IAAV
|
Mouser Electronics | Digital to Analog Converters - DAC Dual-Channel 14-Bit 6-GSPS 12x-24x In A A 595-DAC38RF97IAAVR RoHS: Compliant | 0 |
|
$196.8700 | Order Now |
|
DISTI #
86278032
|
Verical | DAC 2-CH Segment 14-bit 144-Pin FCBGA Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1701 | Americas - 1626 |
|
$166.8750 / $189.6250 | Buy Now |
|
|
Rochester Electronics | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.001us Settling Time, PBGA144 RoHS: Compliant Status: Active Min Qty: 1 | 1626 |
|
$133.5000 / $151.7000 | Buy Now |
|
DISTI #
86278032
|
Verical | DAC 2-CH Segment 14-bit 144-Pin FCBGA Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1701 | Americas - 1626 |
|
$166.8750 / $189.6250 | Buy Now |
|
|
Ameya Holding Limited | 5482 |
|
RFQ | ||
|
DISTI #
86278032
|
Verical | DAC 2-CH Segment 14-bit 144-Pin FCBGA Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1701 | Americas - 1626 |
|
$166.8750 / $189.6250 | Buy Now |
US Tariff Estimator: DAC38RF97IAAV by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DAC38RF97IAAV
DAC38RF97IAAV CAD Models
-

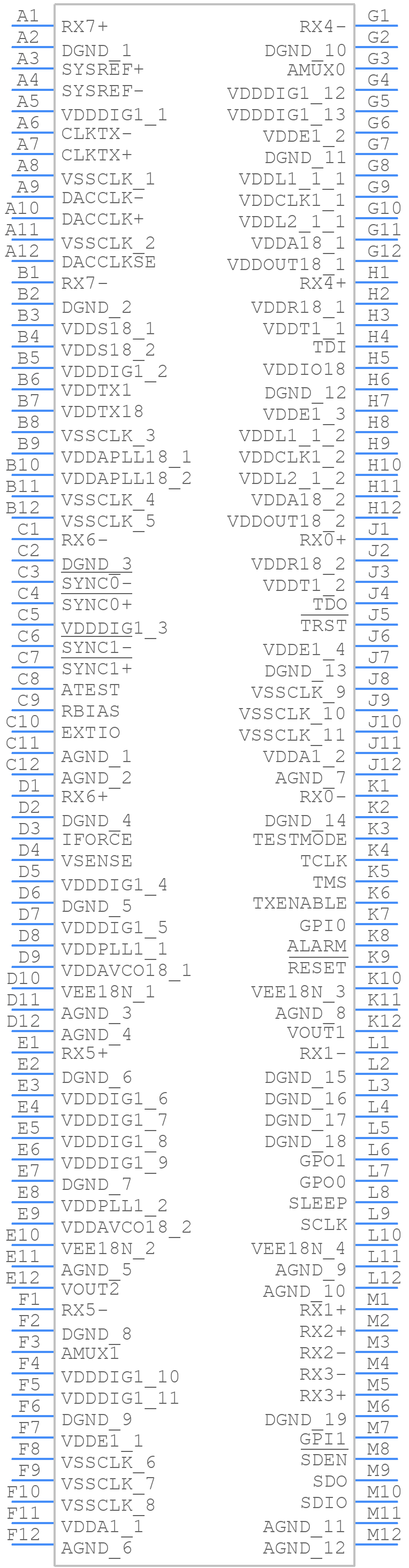

Part Symbol
-
Footprint
-

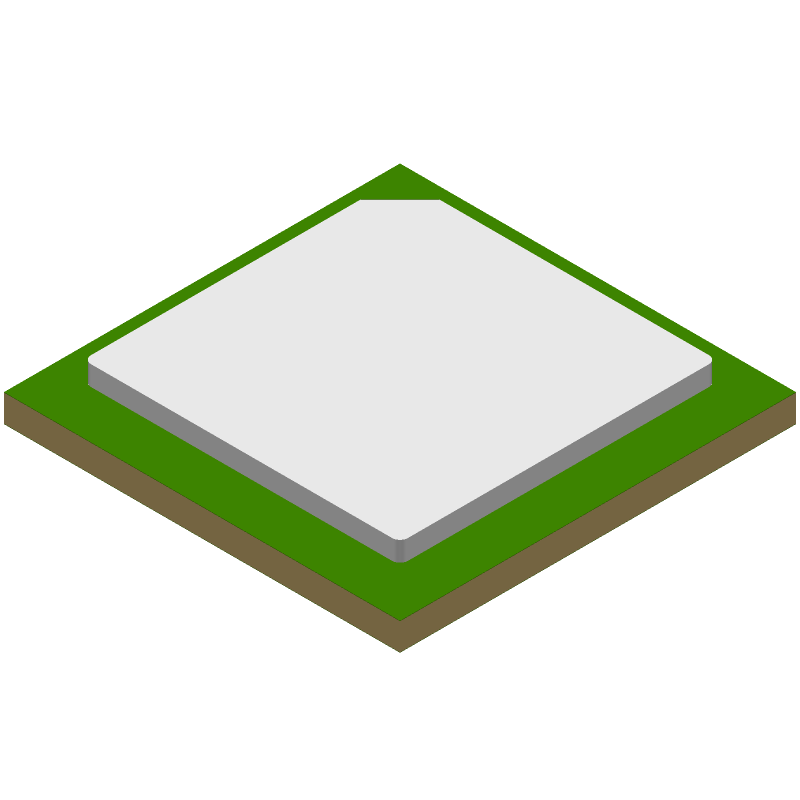

3D Model
