| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESDA6V1-5W6 | STMicroelectronics | $0.1953 | Trans Voltage Suppressor Diode, 100W, 3V V(RWM), Unidirectional, 5 Element, Silicon | ESDA6V1SC5 vs ESDA6V1-5W6 |
| ESDA6V1BC6 | STMicroelectronics | $0.2026 | Trans Voltage Suppressor Diode, 80W, 5V V(RWM), Bidirectional, 4 Element, Silicon | ESDA6V1SC5 vs ESDA6V1BC6 |
Part Details for ESDA6V1SC5 by STMicroelectronics
Results Overview of ESDA6V1SC5 by STMicroelectronics
- Distributor Offerings: (29 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
ESDA6V1SC5 Information
ESDA6V1SC5 by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESDA6V1SC5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45Y5059
|
Newark | Diode, Esd Protection, Sot-23-5, |Stmicroelectronics ESDA6V1SC5 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 3000 |
|
$0.0880 / $0.1100 | Buy Now |
|
DISTI #
34M5943
|
Newark | Diode, Esd Protection, Sot-23-5, |Stmicroelectronics ESDA6V1SC5 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2184 |
|
$0.1250 / $0.5490 | Buy Now |
|
DISTI #
34M5943RL
|
Newark | Diode, Esd Protection, Sot-23-5, |Stmicroelectronics ESDA6V1SC5 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 2184 |
|
$0.1250 / $0.2160 | Buy Now |
|
DISTI #
497-7748-1-ND
|
DigiKey | TVS DIODE 5.25VWM SOT235 Min Qty: 1 Container: Cut Tape |
8900 Cut Tape |
|
$0.1716 / $0.5800 | Buy Now |
|
DISTI #
497-7748-6-ND
|
DigiKey | TVS DIODE 5.25VWM SOT235 Min Qty: 1 Container: Digi-Reel |
8900 Digi-Reel® |
|
$0.1716 / $0.5800 | Buy Now |
|
DISTI #
497-7748-2-ND
|
DigiKey | TVS DIODE 5.25VWM SOT23-5 Min Qty: 3000 Container: Tape & Reel |
8835 Tape & Reel |
|
$0.1125 / $0.1301 | Buy Now |
|
DISTI #
V36:1790_06551711
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5.25V 5-Pin SOT-23 T/R COO: France RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 15 Weeks Date Code: 2626 | Americas - 129000 |
|
$0.0694 / $0.0708 | Buy Now |
|
DISTI #
E21:3489_00207035
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5.25V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2444 | Europe - 1393 |
|
$0.0636 / $0.2239 | Buy Now |
|
DISTI #
511-ESDA6V1SC5
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 6.1V 400W Unidirect RoHS: Compliant | 10408 |
|
$0.0900 / $0.5400 | Buy Now |
|
DISTI #
93756548
|
Verical | ESD Suppressor TVS Uni-Dir 5.25V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Date Code: 2626 | Americas - 129000 |
|
$0.0694 / $0.0708 | Buy Now |
US Tariff Estimator: ESDA6V1SC5 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
ESDA6V1SC5 CAD Models
-
Part Symbol
-
Footprint
-

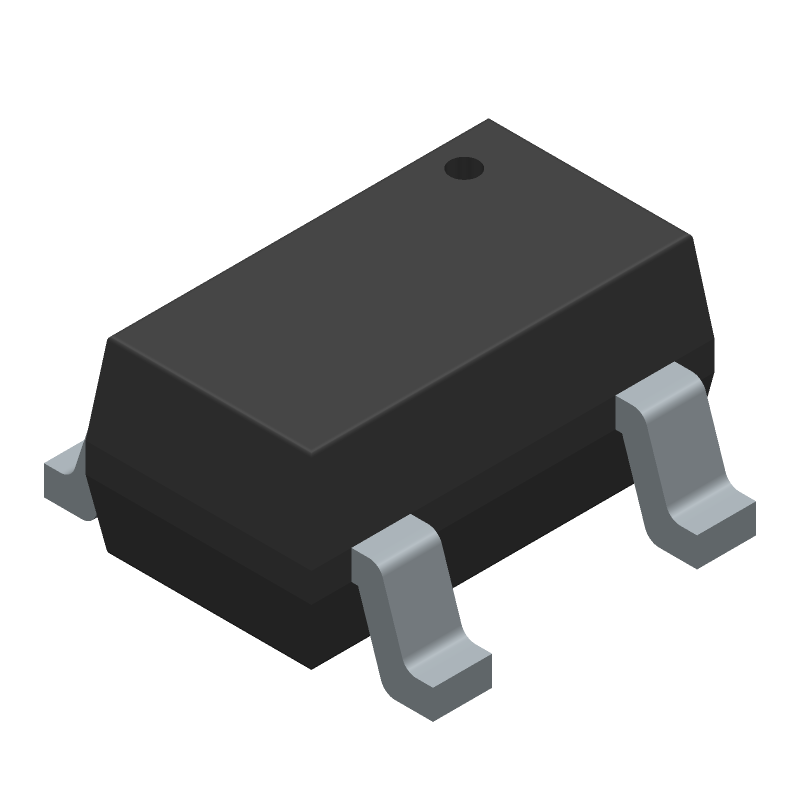

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ESDA6V1SC5 Part Data Attributes
|
|
ESDA6V1SC5
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ESDA6V1SC5
STMicroelectronics
Trans Voltage Suppressor Diode, 400W, 5.25V V(RWM), Unidirectional, 4 Element, Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SC-59 | |
| Package Description | Rohs Compliant, Plastic, Sc-59, Sot-23, 5 Pin | |
| Pin Count | 5 | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 15 Weeks | |
| Breakdown Voltage-Max | 7.2 V | |
| Breakdown Voltage-Min | 6.1 V | |
| Breakdown Voltage-Nom | 6.65 V | |
| Clamping Voltage-Max | 19 V | |
| Configuration | Common Anode, 4 Elements, 4 Channel | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 4 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Unidirectional | |
| Qualification Status | Not Qualified | |
| Reference Standard | Iec-61000-4-2; Mil-Std-883e | |
| Rep Pk Reverse Voltage-Max | 5.25 V | |
| Reverse Current-Max | 2 µA | |
| Reverse Test Voltage | 5.25 V | |
| Surface Mount | Yes | |
| Technology | Avalanche | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESDA6V1SC5
This table gives cross-reference parts and alternative options found for ESDA6V1SC5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESDA6V1SC5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
ESDA6V1SC5 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for ESDA6V1SC5 is -40°C to 125°C.
-
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Also, ensure the PCB is designed with a suitable land pattern and thermal relief.
-
Yes, the ESDA6V1SC5 is suitable for ESD protection in high-speed data lines, such as USB, HDMI, and Ethernet, due to its low capacitance and high surge capability.
-
Choose the correct package type based on your PCB design and assembly requirements. The ESDA6V1SC5 is available in SOT23, SOT323, and WLCSP packages. Consider factors such as board space, thermal management, and reflow soldering requirements.
-
For optimal performance, keep the ESDA6V1SC5 close to the connector or interface it is protecting. Use short, direct traces and avoid vias or tight bends. Also, ensure the PCB has a solid ground plane and adequate decoupling capacitors.
