Part Details for IV2424SA by XP Power
Results Overview of IV2424SA by XP Power
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IV2424SA Information
IV2424SA by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IV2424SA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88M0820
|
Newark | Dc-Dc Converter, 24V, 0.042A, |Xp Power IV2424SA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.4828 / $5.1936 | Buy Now |
|
DISTI #
209-IV2424SA
|
Mouser Electronics | DC/DC Converters - Through Hole 1W 3kV Isolated single output DC-DC converter RoHS: Compliant | 285 |
|
$5.8800 / $6.3100 | Buy Now |
|
DISTI #
70809479
|
RS | DC-DC CONVERTER, 1W 3KV ISOLATED SINGLE OUTPUT DC-DC CONVERTER Min Qty: 20 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$6.4000 | RFQ |
|
DISTI #
IV2424SA
|
TME | Converter: DC/DC, 1W, Uin: 24VDC, Uout: 24VDC, Iout: 42mA, SIP, THT, IV Min Qty: 1 | 0 |
|
$7.4000 / $8.4000 | RFQ |
|
|
Vyrian | DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid | 11997 |
|
RFQ |
IV2424SA CAD Models
-
Part Symbol
-
Footprint
-

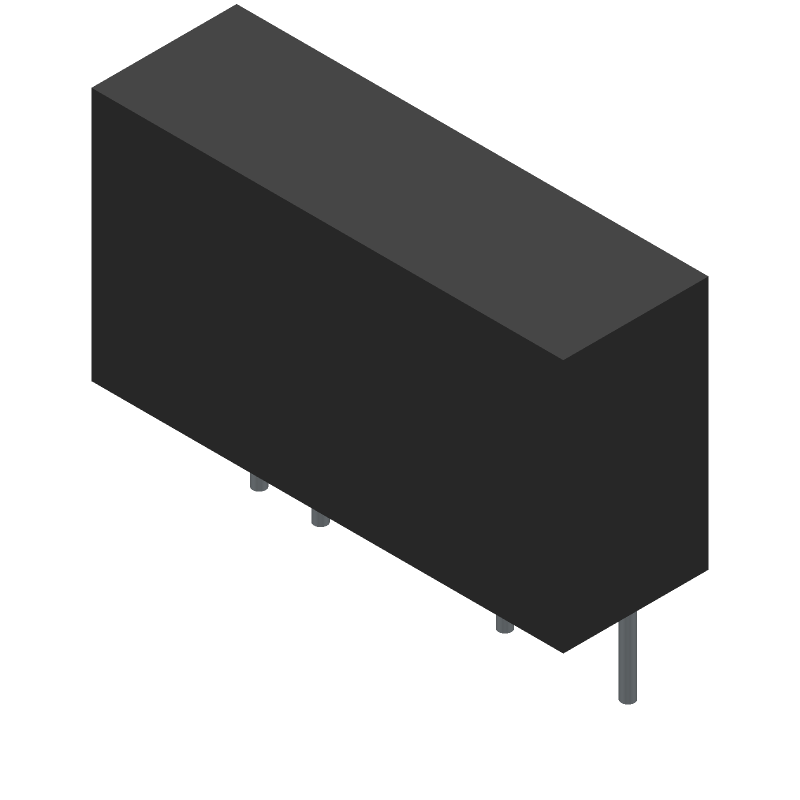

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
IV2424SA Part Data Attributes
|
|
IV2424SA
XP Power
Buy Now
Datasheet
|
Compare Parts:
IV2424SA
XP Power
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | MODULE | |
| Package Description | Module-4 | |
| Pin Count | 4 | |
| ECCN Code | EAR99 | |
| Analog IC - Other Type | Dc-Dc Unregulated Power Supply Module | |
| Input Voltage-Max | 26.4 V | |
| Input Voltage-Min | 21.6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XSMA-T4 | |
| Length | 19.5 Mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 24.72 V | |
| Output Voltage-Min | 23.28 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | Unspecified | |
| Package Code | SMA | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Seated Height-Max | 11 Mm | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Temperature Grade | Industrial | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | No | |
| Width | 6 Mm |
IV2424SA Frequently Asked Questions (FAQ)
-
The maximum capacitance load for the IV2424SA is 10uF. Exceeding this value may affect the stability of the output voltage.
-
The IV2424SA is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
-
The IV2424SA meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification documents and ensure they meet your specific application requirements.
-
A good PCB layout for the IV2424SA should minimize noise and ensure proper heat dissipation. Keep the input and output capacitors close to the device, and use a solid ground plane to reduce EMI.
-
Yes, the IV2424SA can be used in redundant or parallel configurations, but it's crucial to ensure proper synchronization and ORing diodes to prevent back-feeding and damage to the devices.
