LDP01-30AY Information
LDP01-30AY by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS22930AYZVT | Texas Instruments | 5.5V, 2A, 37mΩ Load Switch with Reverse Current Protection 4-DSBGA -40 to 85 | |
| TPS22930AYZVR | Texas Instruments | 5.5V, 2A, 37mΩ Load Switch with Reverse Current Protection 4-DSBGA -40 to 85 |
Price & Stock for LDP01-30AY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AH9725
|
Newark | Tvs Diode, 27V, Unidir, To-263, Product Range:Ldp01-Xxay Transil Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:27V, Clamping Voltage Vc Max:49V, Diode Case Style:To-263, No. Of Pins:3Pins, Breakdown Voltage Rohs Compliant: Yes |Stmicroelectronics LDP01-30AY RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1332 |
|
$2.0300 / $3.4100 | Buy Now |
|
DISTI #
497-15294-1-ND
|
DigiKey | TVS DIODE 27VWM 40VC D2PAK Min Qty: 1 Lead time: 45 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1438 In Stock |
|
$1.3230 / $2.7500 | Buy Now |
|
DISTI #
LDP01-30AY
|
Avnet Americas | TVS Diode, LDP01-xxAY Transil, Unidirectional, 27 V, 49 V, TO-263 (D2PAK), 3 Pins - Tape and Reel (Alt: LDP01-30AY) COO: Singapore RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 53 Weeks, 1 Days Container: Tape & Reel | 0 |
|
$1.3210 / $1.5097 | Buy Now |
|
DISTI #
511-LDP01-30AY
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Automotive 27 V TVS for load dump in D2PAK RoHS: Compliant | 5088 |
|
$1.3300 / $2.7500 | Buy Now |
|
|
STMicroelectronics | Automotive 27 V TVS for load dump in D2PAK COO: France RoHS: Compliant Min Qty: 1 | 5088 |
|
$1.5900 / $2.7000 | Buy Now |
|
|
Future Electronics | D2PAK RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 1000 Lead time: 45 Weeks Container: Reel | 0Reel |
|
$1.3100 / $1.3300 | Buy Now |
|
|
Bristol Electronics | 32 |
|
RFQ | ||
|
DISTI #
LDP01-30AY
|
Avnet Silica | TVS Diode LDP01xxAY Transil Unidirectional 27 V 49 V TO263 D2PAK 3 Pins (Alt: LDP01-30AY) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
LDP01-30AY
|
EBV Elektronik | TVS Diode LDP01xxAY Transil Unidirectional 27 V 49 V TO263 D2PAK 3 Pins (Alt: LDP01-30AY) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 46 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 125A 40V 28.9V 27V D2PAK TVS Diodes RoHS | 12 |
|
$2.6131 / $4.0641 | Buy Now |
US Tariff Estimator: LDP01-30AY by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LDP01-30AY
LDP01-30AY CAD Models
-

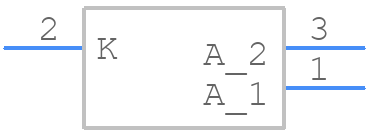

Part Symbol
-

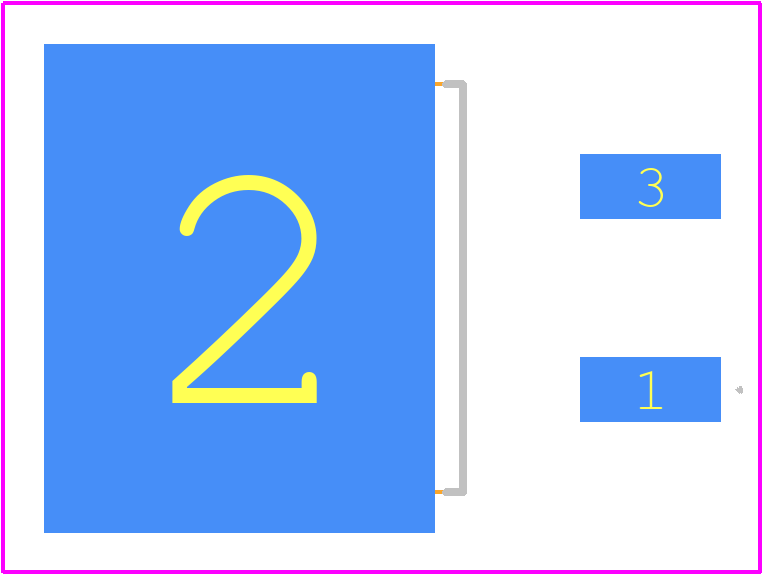

Footprint
