LTC1666CG#PBF Information
LTC1666CG#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1666CG#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6244
|
Newark | Dac, 12Bit, Ssop-28, 0 To 70Deg C, Resolution (Bits):12Bit, Sampling Rate:50Msps, Data Interface:Serial, Supply Voltage Range:± 4.75V To ± 5.25V, Adc/Dac Case Style:Ssop, No. Of Pins:28Pins, Input Channel Type:Single Ended Rohs Compliant: Yes |Analog Devices LTC1666CG#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 86 |
|
$12.3600 / $21.3400 | Buy Now |
|
DISTI #
505-LTC1666CG#PBF-ND
|
DigiKey | IC DAC 12BIT A-OUT 28SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
59 In Stock |
|
$13.1980 / $20.3100 | Buy Now |
|
DISTI #
584-LTC1666CG#PBF
|
Mouser Electronics | Digital to Analog Converters - DAC 12-B 50Msps DAC RoHS: Compliant | 168 |
|
$12.0000 / $22.1100 | Buy Now |
|
|
Analog Devices Inc | 12-B 50Msps DAC Package Multiple: 47 | 12 |
|
$9.6000 / $20.7200 | Buy Now |
|
DISTI #
82023900
|
Verical | DAC 1-CH Segment 12-bit 28-Pin SSOP Tube RoHS: Compliant Min Qty: 31 Package Multiple: 31 Date Code: 2227 | Americas - 31 |
|
$11.7360 / $12.2750 | Buy Now |
|
|
Rochester Electronics | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.02us Settling Time, PDSO28 RoHS: Compliant Status: Active Min Qty: 1 | 46 |
|
$10.1000 / $12.6300 | Buy Now |
|
DISTI #
LTC1666CG#PBF
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 47 | 0 |
|
$12.3900 / $14.4000 | Buy Now |
US Tariff Estimator: LTC1666CG#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1666CG#PBF
LTC1666CG#PBF CAD Models
-

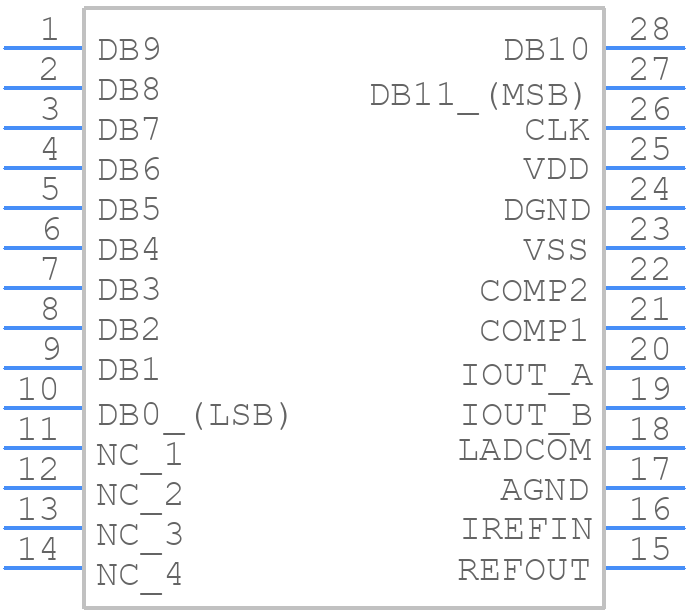

Part Symbol
-

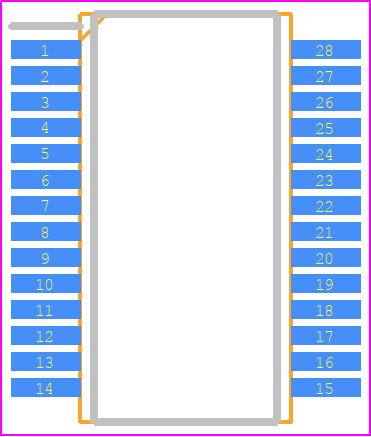

Footprint
-

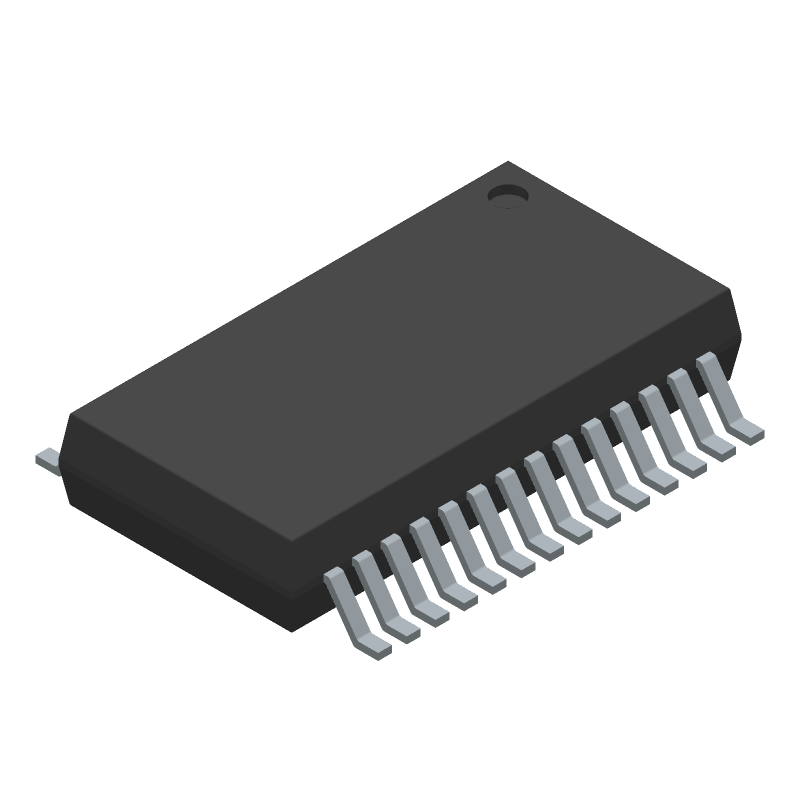

3D Model
