Part Details for LTC2209IUP#PBF by Analog Devices Inc
Results Overview of LTC2209IUP#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2209IUP#PBF Information
LTC2209IUP#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2209IUP#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6423
|
Newark | Adc, 16Bit, 160Msps, Qfn-64, Resolution (Bits):16Bit, Sampling Rate:160Msps, Input Channel Type:Differential, Single Ended, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:3.135V, Supply Voltage Max:3.465V Rohs Compliant: Yes |Analog Devices LTC2209IUP#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 39 |
|
$143.9900 / $154.8100 | Buy Now |
|
DISTI #
LTC2209IUP#PBF-ND
|
DigiKey | IC ADC 16BIT PIPELINED 64QFN Min Qty: 1 Lead time: 13 Weeks Container: Tube |
86 In Stock |
|
$158.1005 / $197.5100 | Buy Now |
|
DISTI #
584-LTC2209IUP#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 16-B, 160Msps ADC RoHS: Compliant | 63 |
|
$139.8000 / $150.3000 | Buy Now |
|
DISTI #
42660400
|
Verical | 1-Channel Single ADC Pipelined 160Msps 16-bit Parallel 64-Pin QFN EP Tube RoHS: Compliant Min Qty: 20 Package Multiple: 20 | Americas - 20 |
|
$138.3302 | Buy Now |
|
|
Quest Components | 3 |
|
$210.0000 | Buy Now | |
|
DISTI #
42660400
|
Verical | 1-Channel Single ADC Pipelined 160Msps 16-bit Parallel 64-Pin QFN EP Tube RoHS: Compliant Min Qty: 20 Package Multiple: 20 | Americas - 20 |
|
$138.3302 | Buy Now |
|
DISTI #
LTC2209IUP#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 40 | 0 |
|
$144.4000 / $167.7600 | Buy Now |
|
DISTI #
42660400
|
Verical | 1-Channel Single ADC Pipelined 160Msps 16-bit Parallel 64-Pin QFN EP Tube RoHS: Compliant Min Qty: 20 Package Multiple: 20 | Americas - 20 |
|
$138.3302 | Buy Now |
US Tariff Estimator: LTC2209IUP#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2209IUP#PBF
LTC2209IUP#PBF CAD Models
-

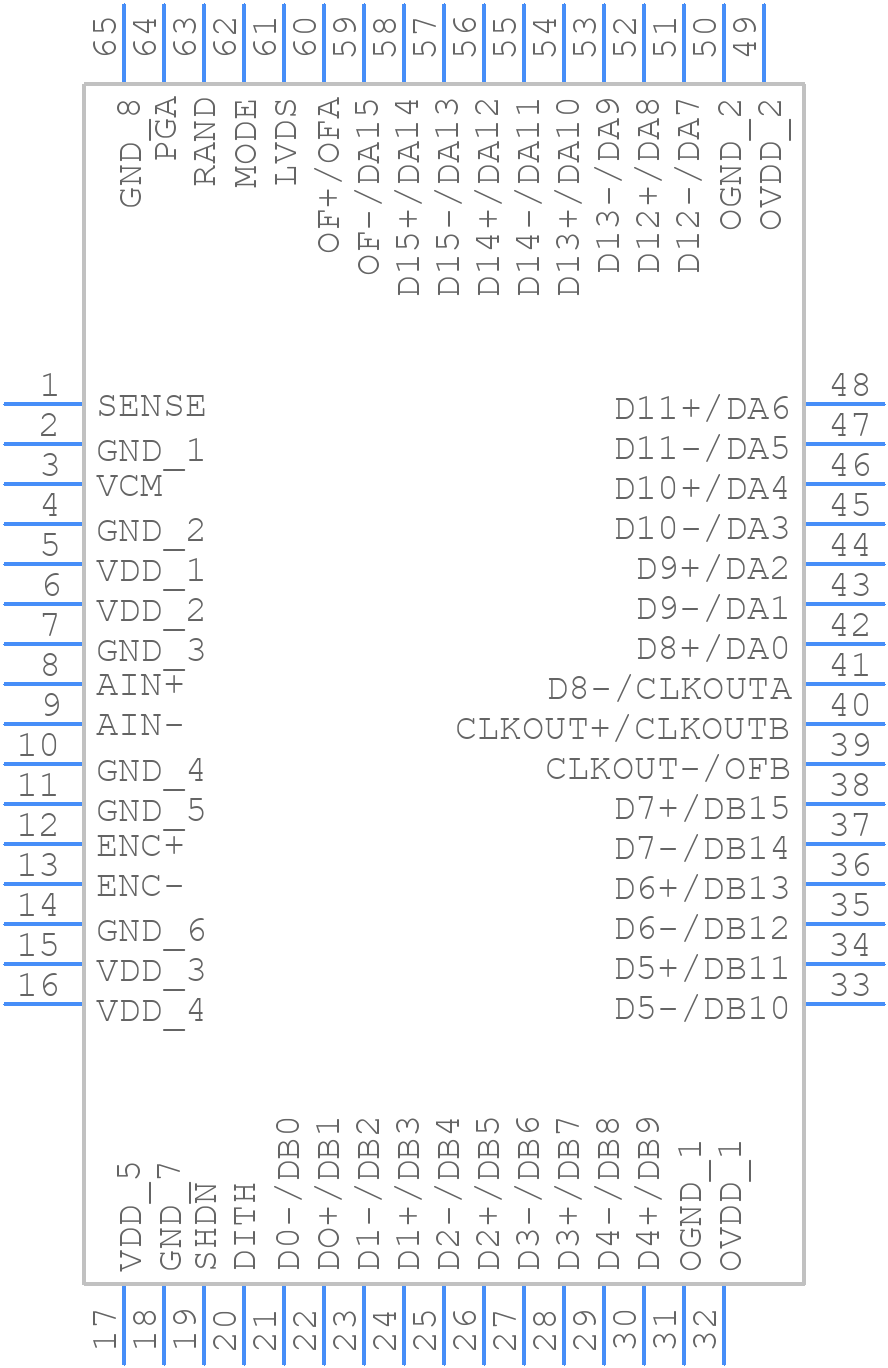

Part Symbol
-

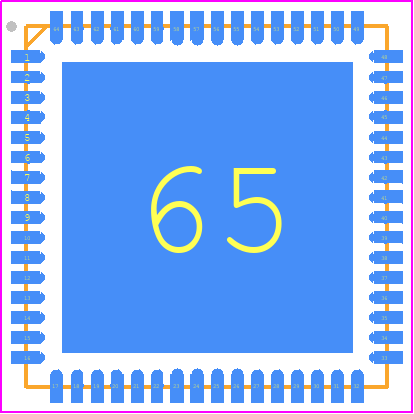

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2209IUP#PBF Part Data Attributes
|
|
LTC2209IUP#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2209IUP#PBF
Analog Devices Inc
ADC, Proprietary Method, 16-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC64
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvqccn, Lcc64,.35sq,20 | |
| Pin Count | 64 | |
| Manufacturer Package Code | 05-08-1705 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A001.A.5.A.5 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 1.5 V | |
| Analog Input Voltage-Min | 1 V | |
| Converter Type | Adc, Proprietary Method | |
| JESD-30 Code | S-PQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 Mm | |
| Linearity Error-Max (EL) | 0.0084% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 160 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 Mm |
LTC2209IUP#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2209 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To optimize the performance of the LTC2209 in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
-
The maximum clock frequency that can be used with the LTC2209 is 100 MSPS. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
-
To ensure the integrity of the data output by the LTC2209, use a CRC (Cyclic Redundancy Check) or a checksum to detect errors, and implement a data validation mechanism in the receiving device or system.
-
The power consumption of the LTC2209 is typically around 1.2W. To minimize power consumption, use a low-power mode, reduce the clock frequency, and use a low-dropout regulator (LDO) to power the device.
