LTC2348CLX-18#PBF Information
LTC2348CLX-18#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2348CLX-18#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AM4741
|
Newark | Adc, 18Bit, 200Ksps, 0 To 70Deg C Rohs Compliant: Yes |Analog Devices LTC2348CLX-18#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 200 |
|
$34.3600 / $47.3300 | Buy Now |
|
DISTI #
LTC2348CLX-18#PBF-ND
|
DigiKey | IC ADC 18BIT SAR 48LQFP Min Qty: 1 Lead time: 33 Weeks Container: Tray |
43 In Stock |
|
$34.3624 / $47.3300 | Buy Now |
|
DISTI #
584-LTC2348CLX-18PBF
|
Mouser Electronics | Analog to Digital Converters - ADC Octal, 18-Bit, 200ksps Differential 10.24V Input SoftSpan ADC with Wide Input Common Mode Range RoHS: Compliant | 103 |
|
$34.3700 / $47.3300 | Buy Now |
|
|
Analog Devices Inc | Octal, 18-B, 200ksps Diff ±10. Package Multiple: 250 | 509 |
|
$27.4900 / $47.3300 | Buy Now |
|
DISTI #
43426279
|
Verical | 8-Channel Single ADC SAR 200ksps 18-bit Serial (SPI)/LVDS 48-Pin LQFP Tray RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 500 |
|
$34.0012 | Buy Now |
|
DISTI #
43426279
|
Verical | 8-Channel Single ADC SAR 200ksps 18-bit Serial (SPI)/LVDS 48-Pin LQFP Tray RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 500 |
|
$34.0012 | Buy Now |
|
DISTI #
LTC2348CLX-18PB
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 250 | 0 |
|
$35.5000 / $38.9400 | Buy Now |
|
DISTI #
43426279
|
Verical | 8-Channel Single ADC SAR 200ksps 18-bit Serial (SPI)/LVDS 48-Pin LQFP Tray RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 500 |
|
$34.0012 | Buy Now |
|
|
Chip Stock | 8-ChannelSingleADCSAR200ksps18-bitSerial(SPI)/LVDS48-PinLQFPTray | 143 |
|
RFQ |
US Tariff Estimator: LTC2348CLX-18#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2348CLX-18#PBF
LTC2348CLX-18#PBF CAD Models
-

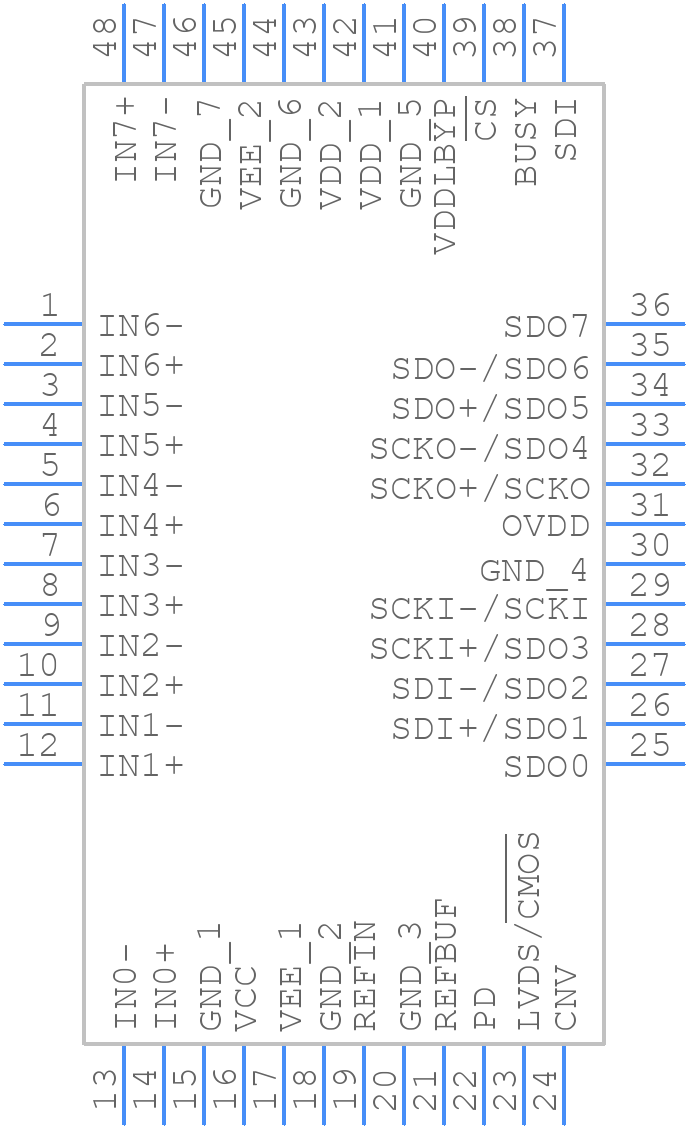

Part Symbol
-
Footprint
-

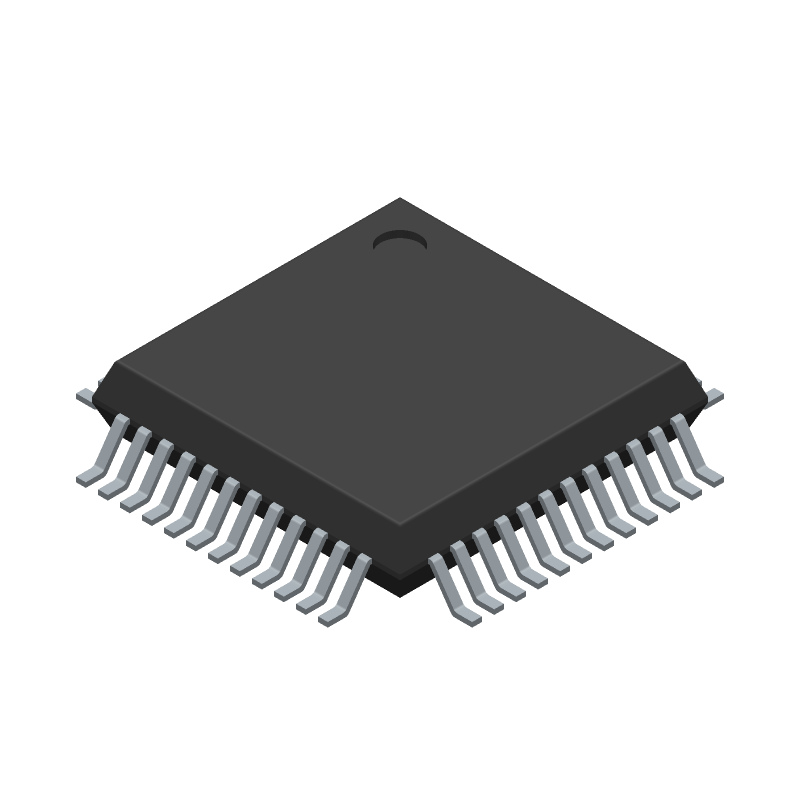

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2348CLX-18#PBF Part Data Attributes
|
|
LTC2348CLX-18#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2348CLX-18#PBF
Analog Devices Inc
ADC, Successive Approximation, 18-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PQFP48
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lfqfp, Qfp48,.28sq,20 | |
| Pin Count | 48 | |
| Manufacturer Package Code | 05-08-1760 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 12.5 V | |
| Analog Input Voltage-Min | -12.5 V | |
| Conversion Time-Max | 0.55 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 Mm | |
| Linearity Error-Max (EL) | 0.0015% | |
| Moisture Sensitivity Level | 3 | |
| Negative Supply Voltage-Nom | -15 V | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 18 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.28SQ,20 | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.2 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1.6 Mm | |
| Supply Current-Max | 4.5 Ma | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm |
