LTC2348ILX-16#PBF Information
LTC2348ILX-16#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2348ILX-16#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC2348ILX-16#PBF-ND
|
DigiKey | IC ADC 16BIT SAR 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
168 In Stock |
|
$29.2752 / $41.6500 | Buy Now |
|
DISTI #
584-LTC2348ILX-16PBF
|
Mouser Electronics | Analog to Digital Converters - ADC Octal, 16-Bit, 200ksps Differential 10.24V Input SoftSpan ADC with Wide Input Common Mode Range RoHS: Compliant | 146 |
|
$29.2800 / $41.6500 | Buy Now |
|
|
Analog Devices Inc | Octal, 16-B, 200ksps Diff ±10. Package Multiple: 250 | 2034 |
|
$23.4200 / $41.6500 | Buy Now |
|
DISTI #
LTC2348ILX-16PB
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 250 | 0 |
|
$30.2400 / $33.1800 | Buy Now |
US Tariff Estimator: LTC2348ILX-16#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2348ILX-16#PBF
LTC2348ILX-16#PBF CAD Models
-

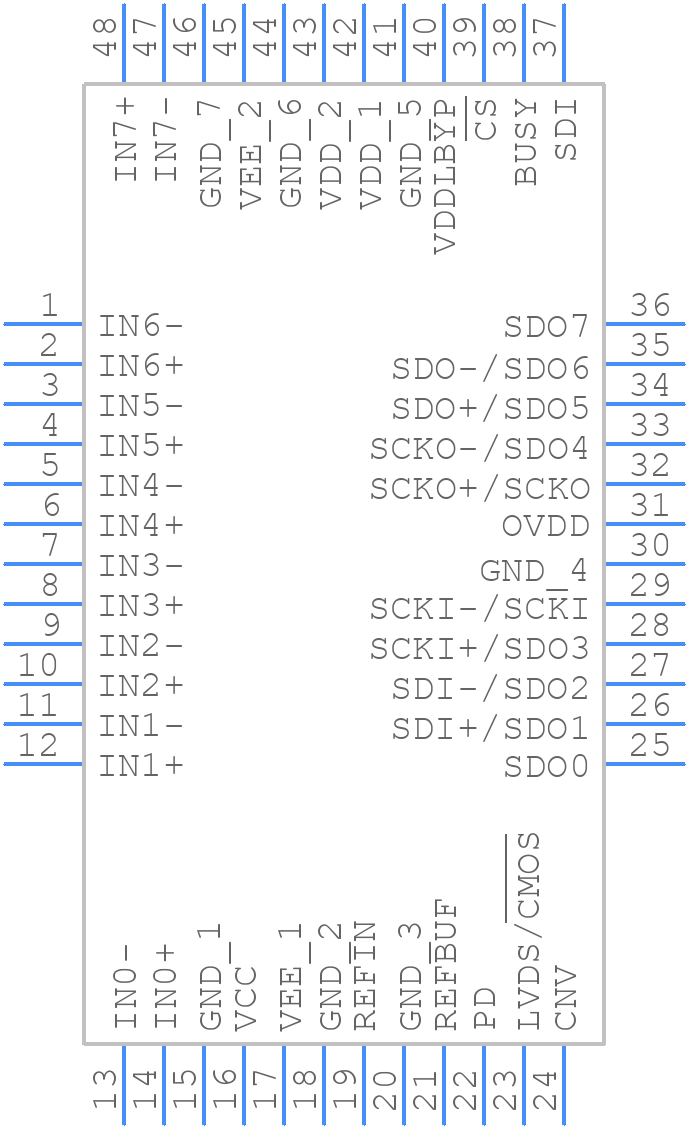

Part Symbol
-
