LTC2378CMS-16#PBF Information
LTC2378CMS-16#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2378CMS-16#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2373
|
Newark | Adc, 16Bit, 1Msps, Msop-16, Resolution (Bits):16Bit, Sampling Rate:1Msps, Input Channel Type:Differential, Single Ended, Data Interface:Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.375V, Supply Voltage Max:2.625V Rohs Compliant: Yes |Analog Devices LTC2378CMS-16#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 38 |
|
$19.7100 / $30.6600 | Buy Now |
|
DISTI #
LTC2378CMS-16#PBF-ND
|
DigiKey | IC ADC 16BIT SAR 16MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
127 In Stock |
|
$21.2976 / $31.1600 | Buy Now |
|
DISTI #
584-LTC2378CMS-16PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 16-B, 1Msps, L Pwr SAR ADC w/ 97dB SNR RoHS: Compliant | 90 |
|
$19.1300 / $29.7700 | Buy Now |
|
|
Analog Devices Inc | 16-B, 1Msps, L Pwr SAR ADC w/ Package Multiple: 37 | 5391 |
|
$15.3100 / $29.7700 | Buy Now |
|
DISTI #
35215416
|
Verical | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 5365 |
|
$18.9363 | Buy Now |
|
DISTI #
82784954
|
Verical | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2303 | Americas - 3 |
|
$18.5000 | Buy Now |
|
DISTI #
35215416
|
Verical | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 5365 |
|
$18.9363 | Buy Now |
|
DISTI #
82784954
|
Verical | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube COO: Thailand RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2303 | Americas - 3 |
|
$18.5000 | Buy Now |
|
DISTI #
LTC2378CMS-16PB
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 37 | 0 |
|
$19.7700 / $22.9600 | Buy Now |
|
DISTI #
35215416
|
Verical | 1-Channel Single ADC SAR 1Msps 16-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 | Americas - 5365 |
|
$18.9363 | Buy Now |
US Tariff Estimator: LTC2378CMS-16#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2378CMS-16#PBF
LTC2378CMS-16#PBF CAD Models
-

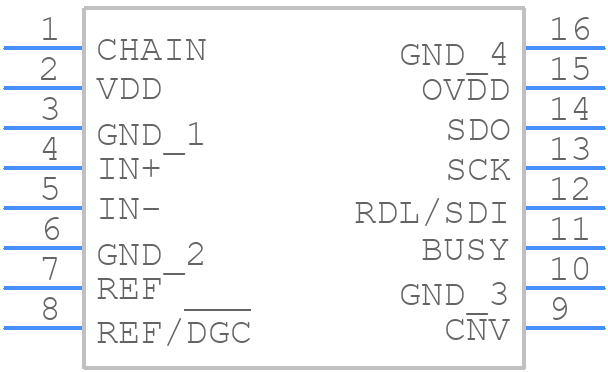

Part Symbol
-
