LTC2512IDKD-24#PBF Information
LTC2512IDKD-24#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2512IDKD-24#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2428
|
Newark | Adc, 24Bit, 400Ksps, Dfn-24, Resolution (Bits):24Bit, Sampling Rate:400Ksps, Input Channel Type:Differential, Single Ended, Data Interface:Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.375V, Supply Voltage Max:2.625V Rohs Compliant: Yes |Analog Devices LTC2512IDKD-24#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$16.9200 / $27.0400 | Buy Now |
|
DISTI #
505-LTC2512IDKD-24#PBF-ND
|
DigiKey | IC ADC 24BIT SAR 24DFN Min Qty: 1 Lead time: 13 Weeks Container: Tube |
269 In Stock |
|
$16.9250 / $27.0400 | Buy Now |
|
DISTI #
584-C2512IDKD-24PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 24-B Over-Smpl ADC w/ Config Flat Passb& RoHS: Compliant | 59 |
|
$16.9200 / $27.0400 | Buy Now |
|
|
Analog Devices Inc | 24-B Over-Smpl ADC w/ Config F Package Multiple: 52 | 626 |
|
$13.5400 / $27.0400 | Buy Now |
|
DISTI #
42660507
|
Verical | 1-Channel Single ADC SAR 1.6Msps 24-bit Serial 24-Pin DFN EP Tube RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Americas - 572 |
|
$16.7471 | Buy Now |
|
DISTI #
42660507
|
Verical | 1-Channel Single ADC SAR 1.6Msps 24-bit Serial 24-Pin DFN EP Tube RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Americas - 572 |
|
$16.7471 | Buy Now |
|
DISTI #
LTC2512IDKD-24P
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 52 | 0 |
|
$17.4800 / $20.3100 | Buy Now |
|
DISTI #
42660507
|
Verical | 1-Channel Single ADC SAR 1.6Msps 24-bit Serial 24-Pin DFN EP Tube RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Americas - 572 |
|
$16.7471 | Buy Now |
US Tariff Estimator: LTC2512IDKD-24#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2512IDKD-24#PBF
LTC2512IDKD-24#PBF CAD Models
-

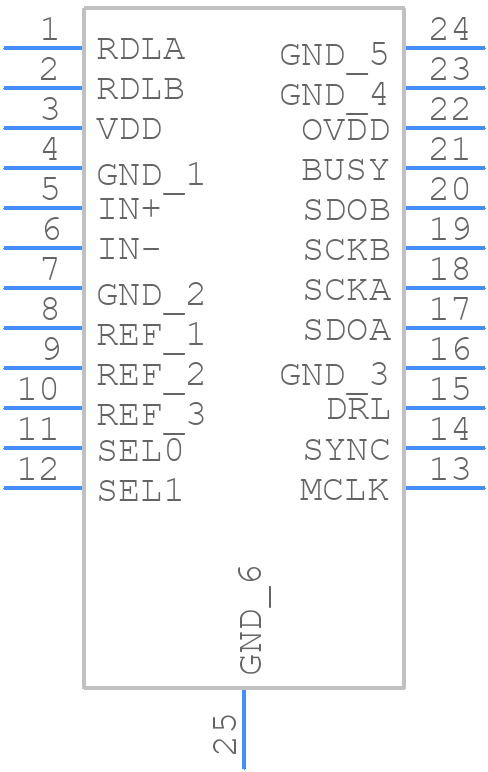

Part Symbol
-

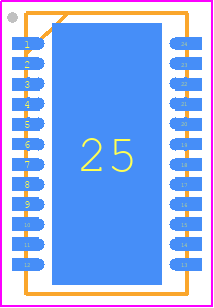

Footprint
-

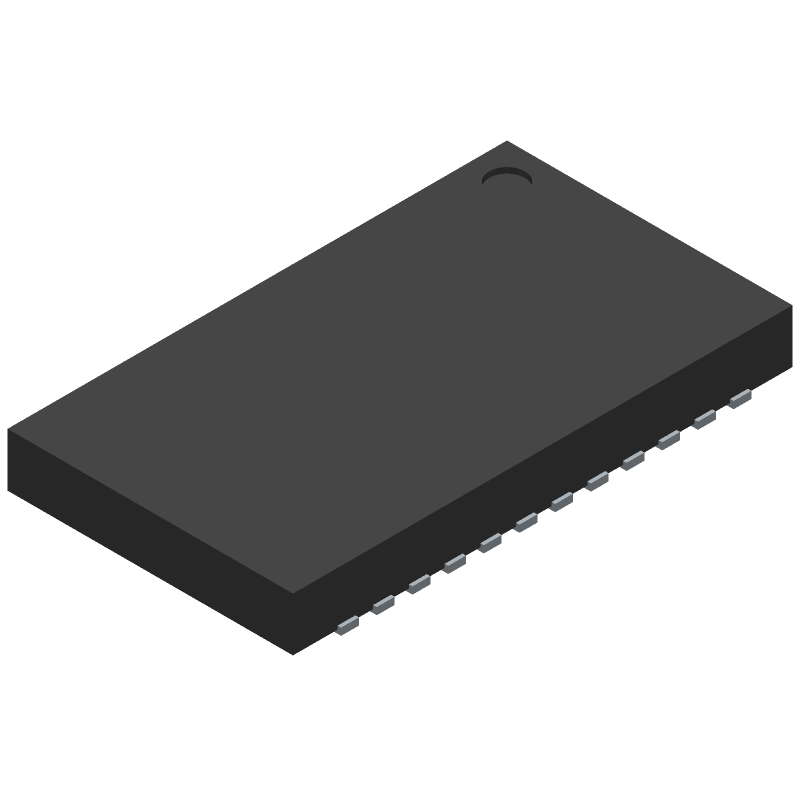

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2512IDKD-24#PBF Part Data Attributes
|
|
LTC2512IDKD-24#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2512IDKD-24#PBF
Analog Devices Inc
ADC, Successive Approximation, 24-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO24
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvson, | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1864 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 5.1 V | |
| Analog Input Voltage-Min | -2.5 V | |
| Conversion Time-Max | 0.46 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-N24 | |
| JESD-609 Code | e3 | |
| Length | 7 Mm | |
| Linearity Error-Max (EL) | 0.00035% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Sample Rate | 1.6 Mhz | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Width | 4 Mm |
