Part Details for LTC2620CGN#PBF by Analog Devices Inc
Results Overview of LTC2620CGN#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Agriculture Technology
Medical Imaging
LTC2620CGN#PBF Information
LTC2620CGN#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2620CGN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6546
|
Newark | Dac, 12Bit, Ssop-16, 0 To 70Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:3 Wire, Microwire, Serial, Spi, Supply Voltage Range:2.5V To 5.5V, Adc/Dac Case Style:Ssop, No. Of Pins:16Pins, Msl:Msl 1 - Unlimited Rohs Compliant: Yes |Analog Devices LTC2620CGN#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 55 |
|
$11.3700 / $19.4000 | Buy Now |
|
DISTI #
505-LTC2620CGN#PBF-ND
|
DigiKey | IC DAC 12BIT V-OUT 16SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
399 In Stock |
|
$12.6375 / $21.5600 | Buy Now |
|
DISTI #
584-LTC2620CGN#PBF
|
Mouser Electronics | Digital to Analog Converters - DAC Octal 12-B R2R DACs in 16-Lead SSOP RoHS: Compliant | 247 |
|
$12.6300 / $21.5600 | Buy Now |
|
|
Analog Devices Inc | Octal 12-B R2R DACs in 16-Lead Package Multiple: 100 | 691 |
|
$10.1100 / $21.5600 | Buy Now |
|
DISTI #
LTC2620CGNPBF
|
TME | IC: D/A converter, 12bit, Ch: 8, 2.5÷5.5V, SSOP16, 0÷70°C Min Qty: 1 | 0 |
|
$13.3000 / $20.0000 | RFQ |
|
DISTI #
LTC2620CGN#PBF
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 100 | 0 |
|
$13.0600 / $14.3200 | Buy Now |
|
|
Chip Stock | 7usSPI2.5V~5.5V12BitsSSOP-16-150milDigitaltoAnalogConverters(DAC)ROHS | 685 |
|
RFQ |
US Tariff Estimator: LTC2620CGN#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2620CGN#PBF
LTC2620CGN#PBF CAD Models
-

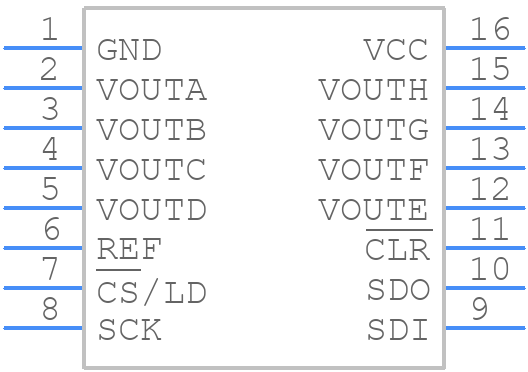

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2620CGN#PBF Part Data Attributes
|
|
LTC2620CGN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2620CGN#PBF
Analog Devices Inc
D/A Converter, 1 Func, Serial Input Loading, 7us Settling Time, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Ssop, Ssop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1641 (GN16) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.8895 Mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.727 Mm | |
| Settling Time-Nom (tstl) | 7 µS | |
| Supply Current-Max | 4 Ma | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.635 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.899 Mm |
Alternate Parts for LTC2620CGN#PBF
This table gives cross-reference parts and alternative options found for LTC2620CGN#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2620CGN#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2620CGN#TRPBF | Analog Devices Inc | $11.0400 | D/A Converter, 1 Func, Serial Input Loading, 7us Settling Time, PDSO16 | LTC2620CGN#PBF vs LTC2620CGN#TRPBF |
| LTC2620IGN#PBF | Analog Devices Inc | $12.9005 | D/A Converter, 1 Func, Serial Input Loading, 7us Settling Time, PDSO16 | LTC2620CGN#PBF vs LTC2620IGN#PBF |
| LTC2620CGN | Analog Devices Inc | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 7us Settling Time, PDSO16 | LTC2620CGN#PBF vs LTC2620CGN |
| LTC2620IGN | Analog Devices Inc | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 7us Settling Time, PDSO16 | LTC2620CGN#PBF vs LTC2620IGN |
LTC2620CGN#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC2620CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
-
To ensure the LTC2620CGN#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be added if necessary. The operating temperature range for the LTC2620CGN#PBF is -40°C to 125°C.
-
When selecting input and output capacitors for the LTC2620CGN#PBF, consider the capacitor's equivalent series resistance (ESR), voltage rating, and capacitance value. A low-ESR capacitor with a voltage rating greater than the maximum input voltage and a capacitance value of at least 10uF is recommended for the input capacitor. For the output capacitor, a low-ESR capacitor with a voltage rating greater than the maximum output voltage and a capacitance value of at least 10uF is recommended.
-
To troubleshoot issues with the LTC2620CGN#PBF, start by verifying the power supply voltage, input voltage, and output voltage. Check for proper grounding, decoupling, and layout. Use an oscilloscope to observe the output voltage and input voltage waveforms. If oscillations or instability persist, check for component tolerances, PCB layout, and thermal issues. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
-
Not using the recommended output capacitor value and type for the LTC2620CGN#PBF can lead to instability, oscillations, or reduced performance. The output capacitor helps to filter the output voltage and reduce noise. Using a capacitor with a different value or type can affect the device's stability, output voltage regulation, and noise performance, potentially leading to system failures or malfunctions.
