LTC2752BCLX#PBF Information
LTC2752BCLX#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2752BCLX#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC2752BCLX#PBF-ND
|
DigiKey | IC DAC 16BIT A-OUT 48LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
119 In Stock |
|
$12.8750 / $21.8700 | Buy Now |
|
DISTI #
584-LTC2752BCLX#PBF
|
Mouser Electronics | Digital to Analog Converters - DAC 2x 16-B SoftSpan IOUT DACs RoHS: Compliant | 83 |
|
$12.8700 / $18.6000 | Buy Now |
|
DISTI #
V99:2348_06458887
|
Arrow Electronics | DAC 2-CH 16-bit 48-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2247 | Americas - 184 |
|
$12.4900 / $13.0300 | Buy Now |
|
|
Analog Devices Inc | 2x 16-B SoftSpan IOUT DACs Package Multiple: 250 | 1524 |
|
$10.3000 / $18.5900 | Buy Now |
|
DISTI #
79368537
|
Verical | DAC 2-CH 16-bit 48-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2247 | Americas - 184 |
|
$12.5000 | Buy Now |
|
|
Rochester Electronics | LTC2752 - Dual 16-Bit Soft-Span IOUT DACs RoHS: Compliant Status: Active Min Qty: 1 | 30 |
|
$10.8400 / $13.5500 | Buy Now |
|
DISTI #
V99:2348_06458887
|
Arrow Electronics | DAC 2-CH 16-bit 48-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2247 | Americas - 184 |
|
$12.4900 / $13.0300 | Buy Now |
|
DISTI #
79368537
|
Verical | DAC 2-CH 16-bit 48-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2247 | Americas - 184 |
|
$12.5000 | Buy Now |
|
DISTI #
V99:2348_06458887
|
Arrow Electronics | DAC 2-CH 16-bit 48-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2247 | Americas - 184 |
|
$12.4900 / $13.0300 | Buy Now |
|
DISTI #
LTC2752BCLX#PBF
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 250 | 0 |
|
$13.3000 / $14.6000 | Buy Now |
US Tariff Estimator: LTC2752BCLX#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2752BCLX#PBF
LTC2752BCLX#PBF CAD Models
-

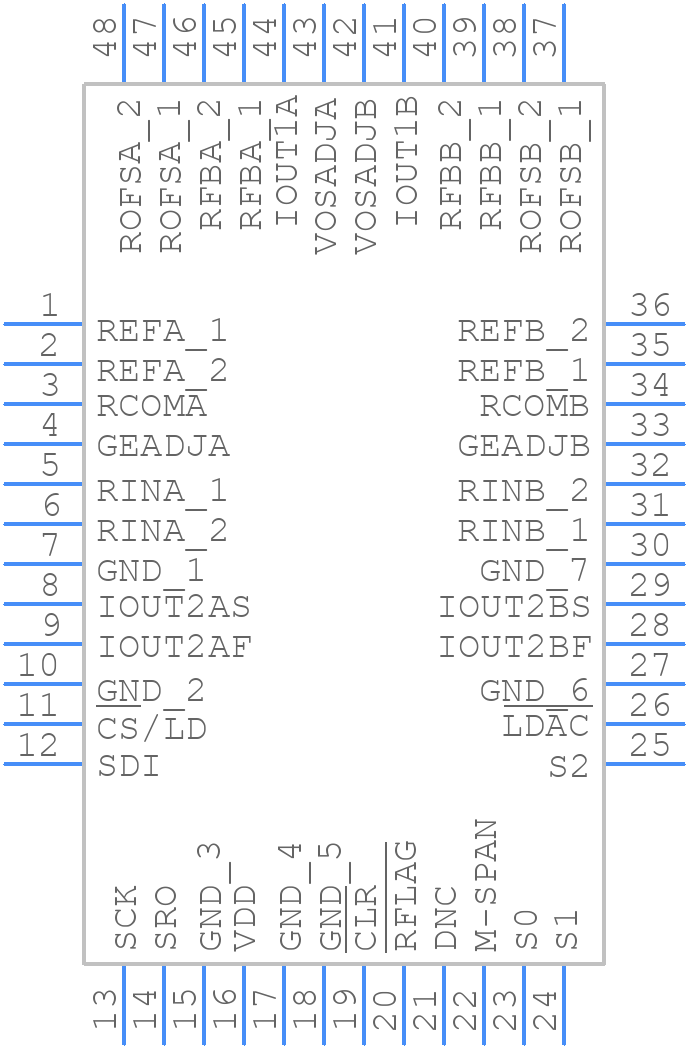

Part Symbol
-
