Part Details for M24128-BFDW6TP by STMicroelectronics
Results Overview of M24128-BFDW6TP by STMicroelectronics
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
M24128-BFDW6TP Information
M24128-BFDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24128-BFDW6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-M24128-BFDW6TPTR-ND
|
DigiKey | IC EEPROM 128KBIT I2C 8TSSOP Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
M24128-BFDW6TP
|
Avnet Silica | (Alt: M24128-BFDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | Silica - 12000 |
|
Buy Now | |
|
DISTI #
M24128-BFDW6TP
|
EBV Elektronik | (Alt: M24128-BFDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: M24128-BFDW6TP by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for M24128-BFDW6TP
M24128-BFDW6TP CAD Models
-

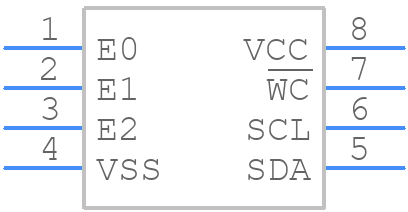

Part Symbol
-
Footprint
-

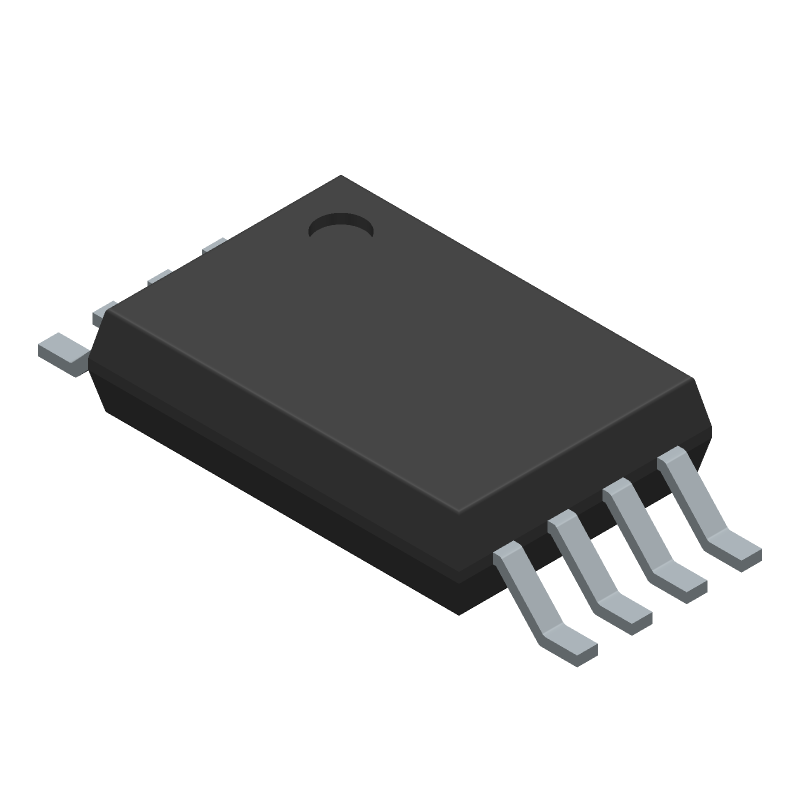

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
M24128-BFDW6TP Part Data Attributes
|
|
M24128-BFDW6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M24128-BFDW6TP
STMicroelectronics
EEPROM, 16KX8, Serial, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Clock Frequency-Max (fCLK) | 1 Mhz | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 Mm | |
| Memory Density | 131072 Bit | |
| Memory IC Type | Eeprom | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 16384 Words | |
| Number of Words Code | 16000 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 16kx8 | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Parallel/Serial | Serial | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Serial Bus Type | I2c | |
| Supply Current-Max | 0.0025 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm | |
| Write Cycle Time-Max (tWC) | 5 Ms |
M24128-BFDW6TP Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in the application note AN1011, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The M24128-BFDW6TP has an internal POR and BOR circuitry. To handle these, ensure a slow and controlled power-up sequence, and use an external capacitor to filter the power supply. Additionally, consider using a voltage supervisor IC to monitor the power supply and generate a reset signal if necessary.
-
The M24128-BFDW6TP is rated for operation from -40°C to 125°C. As the temperature increases, the device's performance may degrade, and the internal oscillator frequency may vary. Ensure proper thermal management and consider using thermal protection mechanisms to prevent overheating.
-
STMicroelectronics provides a secure firmware update mechanism through its STM32Cube ecosystem. Implement secure boot mechanisms, use encrypted firmware images, and follow secure communication protocols such as HTTPS or TLS to ensure secure firmware updates.
-
Follow STMicroelectronics' EMC design guidelines, which include using a multi-layer PCB, decoupling capacitors, and shielding to minimize electromagnetic interference. Additionally, ensure proper grounding, and use ESD protection devices to prevent damage from electrostatic discharge.
