M24C02-FDW6TP by: STMicroelectronics

EEPROM, 256X8, Serial, CMOS, PDSO8

Part Details for M24C02-FDW6TP by STMicroelectronics

Results Overview of M24C02-FDW6TP by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance

M24C02-FDW6TP Information

M24C02-FDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C02-FDW6TP

Part # Distributor Description Stock Price Buy
DISTI # 45AC7386
Newark Eeprom, 2Kbit, I2C, 400Khz, Tssop-8, Memory Configuration:256 X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mountrohs Compliant: Yes |Stmicroelectronics M24C02-FDW6TP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3353
  • 1 $0.1900
  • 10 $0.1860
  • 25 $0.1820
  • 50 $0.1800
  • 100 $0.1770
  • 250 $0.1730
  • 500 $0.1700
  • 1,000 $0.1670
$0.1670 / $0.1900 Buy Now
DISTI # 497-15746-1-ND
DigiKey IC EEPROM 2KBIT I2C 8TSSOP Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4000
In Stock
  • 1 $0.1800
  • 10 $0.1680
  • 25 $0.1640
  • 50 $0.1610
  • 100 $0.1577
  • 250 $0.1534
  • 500 $0.1500
  • 1,000 $0.1466
  • 4,000 $0.1399
  • 8,000 $0.1365
  • 12,000 $0.1345
  • 20,000 $0.1321
  • 28,000 $0.1305
  • 40,000 $0.1288
$0.1288 / $0.1800 Buy Now
DISTI # M24C02-FDW6TP
Avnet Americas EEPROM, 2 Kbit, 256 x 8bit, I2C, 400 kHz, TSSOP, 8 Pins - Tape and Reel (Alt: M24C02-FDW6TP) COO: France RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Container: Tape & Reel 12000
  • 4,000 $0.0938
  • 8,000 $0.0933
  • 16,000 $0.0928
  • 32,000 $0.0924
  • 64,000 $0.0919
$0.0919 / $0.0938 Buy Now
DISTI # M24C02-FDW6TP
Avnet Americas EEPROM, 2 Kbit, 256 x 8bit, I2C, 400 kHz, TSSOP, 8 Pins - Tape and Reel (Alt: M24C02-FDW6TP) COO: France RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Container: Tape & Reel 12000
  • 4,000 $0.0938
  • 8,000 $0.0933
  • 16,000 $0.0928
  • 32,000 $0.0924
  • 64,000 $0.0919
$0.0919 / $0.0938 Buy Now
DISTI # 45AC7386
Avnet Americas EEPROM, 2 Kbit, 256 x 8bit, I2C, 400 kHz, TSSOP, 8 Pins - Product that comes on tape, but is not reeled (Alt: 45AC7386) COO: France RoHS: Compliant Min Qty: 5 Package Multiple: 5 Container: Ammo Pack 480 Partner Stock
  • 1 $0.1910
  • 10 $0.1870
  • 25 $0.1830
  • 50 $0.1810
  • 100 $0.1780
  • 250 $0.1740
  • 500 $0.1710
$0.1710 / $0.1910 Buy Now
DISTI # 45AC7386
Avnet Americas EEPROM, 2 Kbit, 256 x 8bit, I2C, 400 kHz, TSSOP, 8 Pins - Product that comes on tape, but is not reeled (Alt: 45AC7386) COO: France RoHS: Compliant Min Qty: 5 Package Multiple: 5 Container: Ammo Pack 480 Partner Stock
  • 1 $0.1910
  • 10 $0.1870
  • 25 $0.1830
  • 50 $0.1810
  • 100 $0.1780
  • 250 $0.1740
  • 500 $0.1710
$0.1710 / $0.1910 Buy Now
DISTI # 511-M24C02-FDW6TP
Mouser Electronics EEPROM 2-Kbit serial I2C Bus EEPROM RoHS: Compliant 0
  • 1 $0.1500
  • 10 $0.1460
  • 25 $0.1400
  • 100 $0.1360
  • 250 $0.1320
  • 500 $0.1310
  • 1,000 $0.1290
  • 2,000 $0.1280
  • 4,000 $0.1210
$0.1210 / $0.1500 Order Now
STMicroelectronics 2-Kbit serial I2C bus EEPROM COO: France RoHS: Compliant Min Qty: 1 0
  • 1 $0.1500
  • 10 $0.1400
  • 25 $0.1400
  • 100 $0.1300
  • 250 $0.1300
  • 500 $0.1300
$0.1300 / $0.1500 Buy Now
Future Electronics M24C02-F Series 2 Kb (256 x 8) 5.5 V Serial I²C bus EEPROMs - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 4000 Lead time: 9 Weeks Container: Reel 0
Reel
  • 4,000 $0.0787
  • 8,000 $0.0763
$0.0763 / $0.0787 Buy Now
Quest Components EEPROM, 256X8, SERIAL, CMOS, PDSO8 6
  • 1 $0.2550
$0.2550 Buy Now
DISTI # M24C02-FDW6TP
TME IC: EEPROM memory, 2kbEEPROM, I2C, 256x8bit, 1.7÷5.5V, 400kHz Min Qty: 1 3770
  • 1 $0.1400
  • 100 $0.1270
  • 4,000 $0.1180
$0.1180 / $0.1400 Buy Now
DISTI # M24C02-FDW6TP
Avnet Silica EEPROM 2 Kbit 256 x 8bit I2C 400 kHz TSSOP 8 Pins (Alt: M24C02-FDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days Silica - 20000
Buy Now
Chip Stock StandardSerialEEPROMI2C4MCycles,1.6V,TSSOP-8L,TapeandReel 20054
RFQ
DISTI # M24C02-FDW6TP
EBV Elektronik EEPROM 2 Kbit 256 x 8bit I2C 400 kHz TSSOP 8 Pins (Alt: M24C02-FDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
LCSC 2Kbit 1.7V5.5V 400kHz I2C TSSOP-8 Memory (ICs) RoHS 360
  • 5 $0.1665
  • 50 $0.1294
  • 150 $0.1135
  • 500 $0.0937
  • 2,500 $0.0849
  • 4,000 $0.0796
$0.0796 / $0.1665 Buy Now
Win Source Electronics IC EEPROM 2KBIT I2C 8TSSOP 24000
  • 330 $0.1522
  • 805 $0.1249
  • 1,240 $0.1210
  • 1,710 $0.1171
  • 2,210 $0.1132
  • 2,960 $0.1015
$0.1015 / $0.1522 Buy Now
Wuhan P&S EEPROM 2Kb��256 x 8�� I?C Min Qty: 1 300
  • 1 $1.0600
  • 100 $0.3600
  • 500 $0.3300
  • 1,000 $0.3200
$0.3200 / $1.0600 Buy Now

US Tariff Estimator: M24C02-FDW6TP by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M24C02-FDW6TP
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M24C02-FDW6TP

M24C02-FDW6TP CAD Models

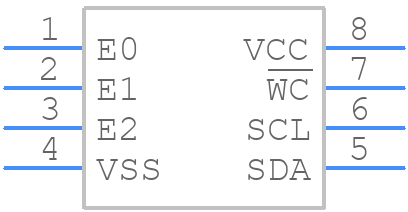

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

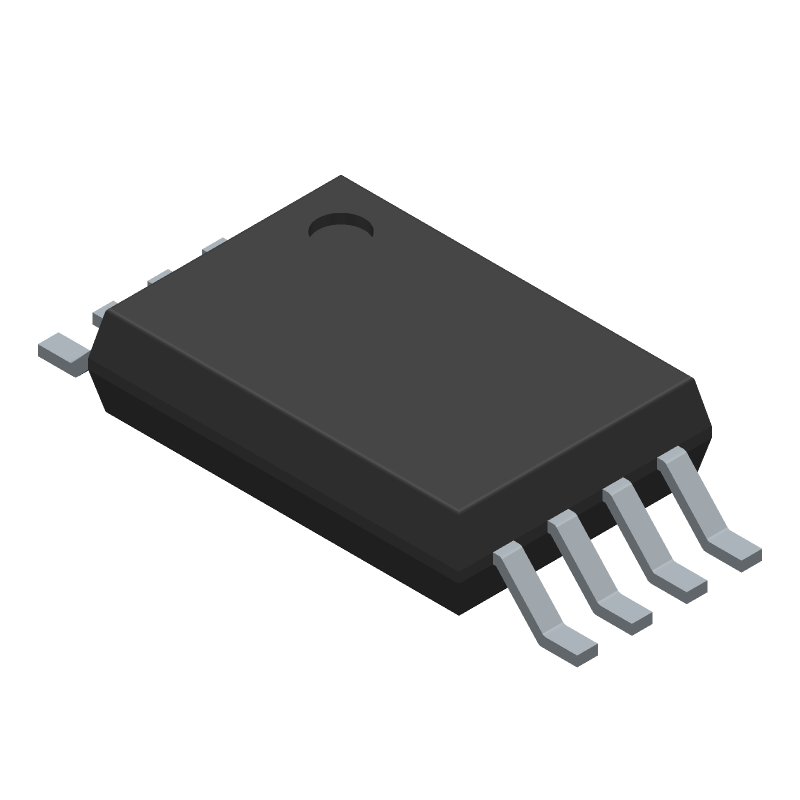

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C02-FDW6TP Part Data Attributes

Parametric Data
M24C02-FDW6TP STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C02-FDW6TP STMicroelectronics EEPROM, 256X8, Serial, CMOS, PDSO8
Rohs Code Yes
Part Life Cycle Code Active
Package Description 0.169 Inch, Halogen Free And Rohs Compliant, Tssop-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Clock Frequency-Max (fCLK) 0.4 Mhz
Data Retention Time-Min 200
Endurance 4000000 Write/Erase Cycles
I2C Control Byte 1010dddr
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.4 Mm
Memory Density 2048 Bit
Memory IC Type Eeprom
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 256 Words
Number of Words Code 256
Operating Mode Synchronous
Operating Temperature-Max 85 °C
Operating Temperature-Min -20 °C
Organization 256x8
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Parallel/Serial Serial
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 Mm
Serial Bus Type I2c
Standby Current-Max 0.000001 A
Supply Current-Max 0.0008 Ma
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Surface Mount Yes
Technology Cmos
Temperature Grade Other
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 3 Mm
Write Cycle Time-Max (tWC) 5 Ms
Write Protection Hardware
equivalents icon

M24C02-FDW6TP Related Parts

M24C02-FDW6TP Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C02-FDW6TP is 400 kHz.

  • The M24C02-FDW6TP has 2 Kbits (256 bytes) of user memory.

  • The M24C02-FDW6TP has a write endurance of 1 million cycles.

  • The M24C02-FDW6TP has a data retention period of 40 years at 85°C.

  • Yes, the M24C02-FDW6TP is compatible with the I2C bus protocol.
