Memory / EEPROMs / M24C32-DRMN8TP/K
Datasheets
M24C32-DRMN8TP/K by:
STMicroelectronics

EEPROM, 4KX8, Serial, CMOS, PDSO8

Part Details for M24C32-DRMN8TP/K by STMicroelectronics

Results Overview of M24C32-DRMN8TP/K by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

M24C32-DRMN8TP/K Information

M24C32-DRMN8TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C32-DRMN8TP/K

Part # Distributor Description Stock Price Buy
DISTI # 79AH4835
Newark Memory Rohs Compliant: Yes |Stmicroelectronics M24C32-DRMN8TP/K RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 60000
  • 1 $0.1660
$0.1660 Buy Now
DISTI # 07AH6802
Newark Eeprom, 32Kbit, I2C, Soic-8, Memory Configuration:4K X 8Bit, Interfaces:I2C, Clock Frequency Max:1Mhz, Ic Case/Package:Soic, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Stmicroelectronics M24C32-DRMN8TP/K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2836
  • 1 $0.3800
  • 10 $0.3640
  • 25 $0.3570
  • 50 $0.3510
  • 100 $0.3460
  • 250 $0.3380
  • 500 $0.3330
  • 1,000 $0.3270
$0.3270 / $0.3800 Buy Now
DISTI # 497-15351-1-ND
DigiKey IC EEPROM 32KBIT I2C 1MHZ 8SOIC Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 10000
In Stock
  • 1 $0.3300
  • 10 $0.3150
  • 25 $0.3072
  • 50 $0.3010
  • 100 $0.2946
  • 250 $0.2862
  • 500 $0.2797
  • 1,000 $0.2732
  • 2,500 $0.2647
  • 5,000 $0.2583
  • 7,500 $0.2545
  • 12,500 $0.2499
  • 17,500 $0.2468
  • 25,000 $0.2436
$0.2436 / $0.3300 Buy Now
DISTI # M24C32-DRMN8TP/K
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Tape and Reel (Alt: M24C32-DRMN8TP/K) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Tape & Reel 60000
  • 2,500 $0.1659
$0.1659 Buy Now
DISTI # M24C32-DRMN8TP/K
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Tape and Reel (Alt: M24C32-DRMN8TP/K) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Tape & Reel 60000
  • 2,500 $0.1659
$0.1659 Buy Now
DISTI # 511-M24C32-DRMN8TP/K
Mouser Electronics EEPROM 32-Kbit serial I2C bus EEPROM 105&#176, C operation RoHS: Compliant 43702
  • 1 $0.2900
  • 10 $0.2740
  • 25 $0.2620
  • 100 $0.2570
  • 250 $0.2490
  • 500 $0.2440
  • 1,000 $0.2380
  • 2,500 $0.2010
  • 5,000 $0.1990
$0.1990 / $0.2900 Buy Now
STMicroelectronics 32 Kbit serial I2C bus EEPROM 105?C operation COO: France RoHS: Compliant Min Qty: 1 43702
  • 1 $0.2800
  • 10 $0.2700
  • 25 $0.2600
  • 100 $0.2500
  • 250 $0.2400
  • 500 $0.2400
$0.2400 / $0.2800 Buy Now
DISTI # 81004327
Verical EEPROM Serial-I2C 32K-bit 4K x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin SO N T/R RoHS: Compliant Min Qty: 98 Package Multiple: 1 Americas - 2420
  • 98 $0.3016
$0.3016 Buy Now
Ameya Holding Limited M24C32-DRE Series 32 Kb (4K x 8) 5.5 V 1 MHz Serial I²C bus EEPROM - SOIC-8 4081
RFQ
DISTI # M24C32-DRMN8TP/K
Avnet Silica EEPROM 32 Kbit 4K x 8bit I2C 1 MHz SOIC 8 Pins (Alt: M24C32-DRMN8TP/K) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Silica - 12500
Buy Now
DISTI # M24C32-DRMN8TP/K
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2420
  • 5 $0.2640
  • 50 $0.2630
  • 500 $0.2610
  • 2,500 $0.2600
$0.2600 / $0.2640 Buy Now
Chip Stock M24C32-DRESeries32Kb(4Kx8)5.5V1MHzSerialI²CbusEEPROM-SOIC-8 23421
RFQ
DISTI # M24C32-DRMN8TP/K
EBV Elektronik EEPROM 32 Kbit 4K x 8bit I2C 1 MHz SOIC 8 Pins (Alt: M24C32-DRMN8TP/K) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: M24C32-DRMN8TP/K by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M24C32-DRMN8TP/K
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M24C32-DRMN8TP/K

M24C32-DRMN8TP/K CAD Models

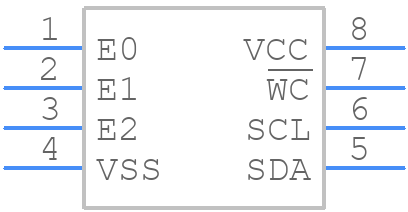

  • Part Symbol

    schematic symbol

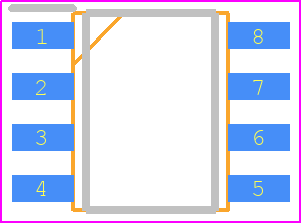

  • Footprint

    pcb footprint

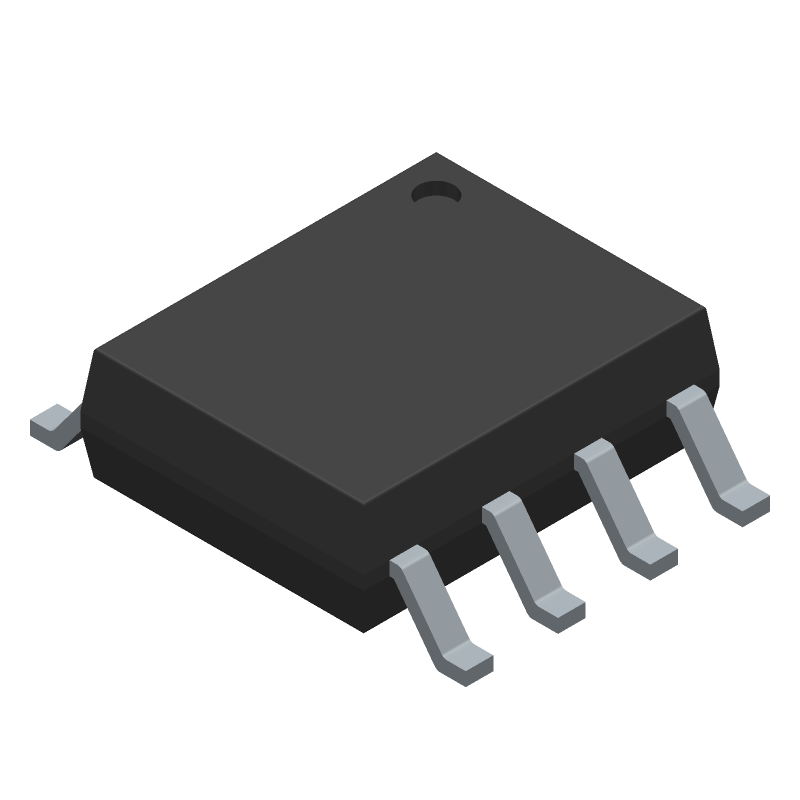

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C32-DRMN8TP/K Part Data Attributes

Parametric Data
M24C32-DRMN8TP/K STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C32-DRMN8TP/K STMicroelectronics EEPROM, 4KX8, Serial, CMOS, PDSO8
Rohs Code Yes
Part Life Cycle Code Active
Package Description Sop-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Clock Frequency-Max (fCLK) 1 Mhz
Data Retention Time-Min 50
Endurance 900000 Write/Erase Cycles
I2C Control Byte 1010dddr
JESD-30 Code R-PDSO-G8
Length 4.9 Mm
Memory Density 32768 Bit
Memory IC Type Eeprom
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 4096 Words
Number of Words Code 4000
Operating Mode Synchronous
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Organization 4kx8
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Parallel/Serial Serial
Peak Reflow Temperature (Cel) Not Specified
Programming Voltage 2.5 V
Qualification Status Not Qualified
Screening Level Aec-Q100
Seated Height-Max 1.75 Mm
Serial Bus Type I2c
Standby Current-Max 0.000005 A
Supply Current-Max 0.002 Ma
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 3.9 Mm
Write Cycle Time-Max (tWC) 4 Ms
Write Protection Hardware

Alternate Parts for M24C32-DRMN8TP/K

This table gives cross-reference parts and alternative options found for M24C32-DRMN8TP/K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24C32-DRMN8TP/K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M24C32-RMN3P/B STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN3P/B
M24C32-RMN3GP STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-RMN3GP
M24C32-RMN3TGP STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN3TGP
M24C32-RMN5P STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN5P
M24C32-RMN5/C STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN5/C
M24C32-DRMN8P/K STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-DRMN8P/K
M24C32-RMN6TP/K STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-RMN6TP/K
M24C32-RMN6PP STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-RMN6PP
M24C32-RMN3G/C STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN3G/C
M24C32-RMN5P/T STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-RMN5P/T
Part Number Manufacturer Composite Price Description Compare
BR24L32FJ-WE2 ROHM Semiconductor $0.8562 EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs BR24L32FJ-WE2
M24C32-RMN5P/K STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-RMN5P/K
M24C32-DRMN3P/K STMicroelectronics Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs M24C32-DRMN3P/K
M24C32-RMN5TG/P STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN5TG/P
M24C32-RMN5TP/C STMicroelectronics Check for Price 4KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C32-DRMN8TP/K vs M24C32-RMN5TP/C
BR24A32F-W ROHM Semiconductor Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs BR24A32F-W
BR24S32FJ-WME2 ROHM Semiconductor Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs BR24S32FJ-WME2
BR24L32FJ-WME2 ROHM Semiconductor Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8, ROHS COMPLIANT, SOP-J8 M24C32-DRMN8TP/K vs BR24L32FJ-WME2
M24C32-RMN3TP/K STMicroelectronics Check for Price I2C/2-WIRE SERIAL EEPROM M24C32-DRMN8TP/K vs M24C32-RMN3TP/K
BR24L32FJ-WTR ROHM Semiconductor Check for Price EEPROM, 4KX8, Serial, CMOS, PDSO8 M24C32-DRMN8TP/K vs BR24L32FJ-WTR
equivalents icon

M24C32-DRMN8TP/K Related Parts

M24C32-DRMN8TP/K Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C32-DRMN8TP/K is 1 MHz.

  • The M24C32-DRMN8TP/K has 32 Kbits (4 Kbytes) of user memory.

  • The M24C32-DRMN8TP/K has a write endurance of 1 million cycles.

  • The M24C32-DRMN8TP/K has a data retention period of 50 years.

  • Yes, the M24C32-DRMN8TP/K is compatible with the I2C bus protocol.
