M24M02-DWMN3TP/K Information
M24M02-DWMN3TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24M02-DWMN3TP/K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9296
|
Newark | Eeprom, Aec-Q100, 2Mbit, -40 To 125Deg C, Memory Configuration:256K X 8Bit, Interfaces:I2C, Clock Frequency Max:1Mhz, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Stmicroelectronics M24M02-DWMN3TP/K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 5537 |
|
$3.4100 / $4.1800 | Buy Now |
|
DISTI #
79AH4839
|
Newark | Memory |Stmicroelectronics M24M02-DWMN3TP/K RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 2500 |
|
$2.7100 | Buy Now |
|
DISTI #
497-16238-1-ND
|
DigiKey | IC EEPROM 2MBIT I2C 1MHZ 8SOIC Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
2500 In Stock |
|
$3.5798 / $4.6700 | Buy Now |
|
DISTI #
M24M02-DWMN3TP/K
|
Avnet Americas | Identification, Authentication, Security ICs - Tape and Reel (Alt: M24M02-DWMN3TP/K) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Tape & Reel | 2500 |
|
$2.5439 / $2.7049 | Buy Now |
|
DISTI #
51AC9296
|
Avnet Americas | Identification, Authentication, Security ICs - Bulk (Alt: 51AC9296) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 175 Partner Stock |
|
$3.3100 / $4.0600 | Buy Now |
|
DISTI #
511-M24M02-DWMN3TP/K
|
Mouser Electronics | EEPROM Automotive 2-Mbit serial I², C bus EEPROM with 1 MHz clock RoHS: Compliant | 1804 |
|
$3.2600 / $4.0600 | Buy Now |
|
DISTI #
V36:1790_13796147
|
Arrow Electronics | EEPROM Serial-I2C 2M-bit 256K x 8 3.3V/5V Automotive 8-Pin SO N T/R COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks Date Code: 2337 | Americas - 5000 |
|
$2.8360 | Buy Now |
|
|
STMicroelectronics | Automotive 2-Mbit serial I², C bus EEPROM with 1 MHz clock COO: France RoHS: Compliant Min Qty: 1 | 2202 |
|
$3.3000 / $3.9800 | Buy Now |
|
|
Future Electronics | M24M02-A125 Series 2 Mb (256 K x 8) 5.5 V Serial I²C bus EEPROM - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$2.7000 | Buy Now |
|
DISTI #
79934764
|
Verical | EEPROM Serial-I2C 2M-bit 256K x 8 3.3V/5V Automotive 8-Pin SO N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2337 | Americas - 5000 |
|
$2.8360 | Buy Now |
US Tariff Estimator: M24M02-DWMN3TP/K by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for M24M02-DWMN3TP/K
M24M02-DWMN3TP/K CAD Models
-

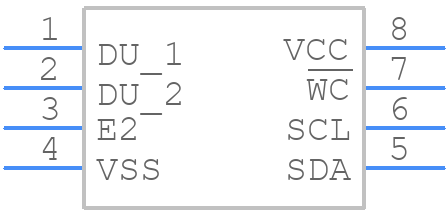

Part Symbol
-
