Part Details for MAX1202AEAP+ by Analog Devices Inc
Results Overview of MAX1202AEAP+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX1202AEAP+ Information
MAX1202AEAP+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX1202AEAP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX1202AEAP
|
Mouser Electronics | Analog to Digital Converters - ADC 5V, 8-Channel, Serial, 12-Bit ADCs with RoHS: Compliant | 96 |
|
$22.1100 / $32.3000 | Buy Now |
|
|
Analog Devices Inc | 5V, 8-Channel, Serial, 12-Bit Package Multiple: 1 | 0 |
|
$15.9200 / $32.3000 | Buy Now |
US Tariff Estimator: MAX1202AEAP+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX1202AEAP+
MAX1202AEAP+ CAD Models
-

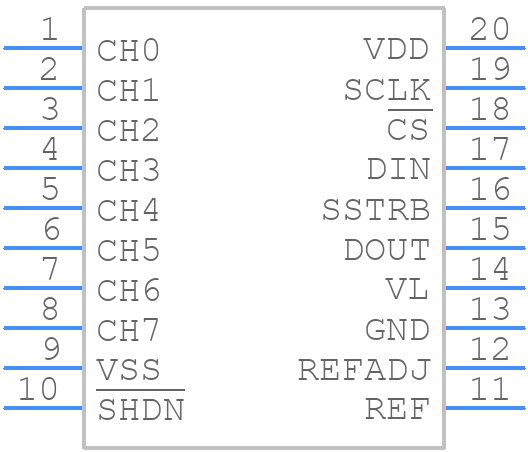

Part Symbol
-

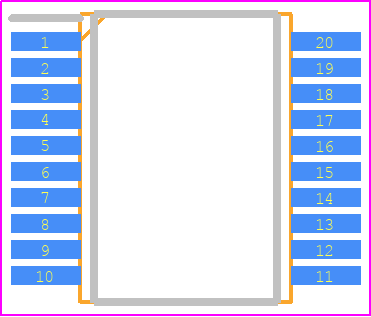

Footprint
-

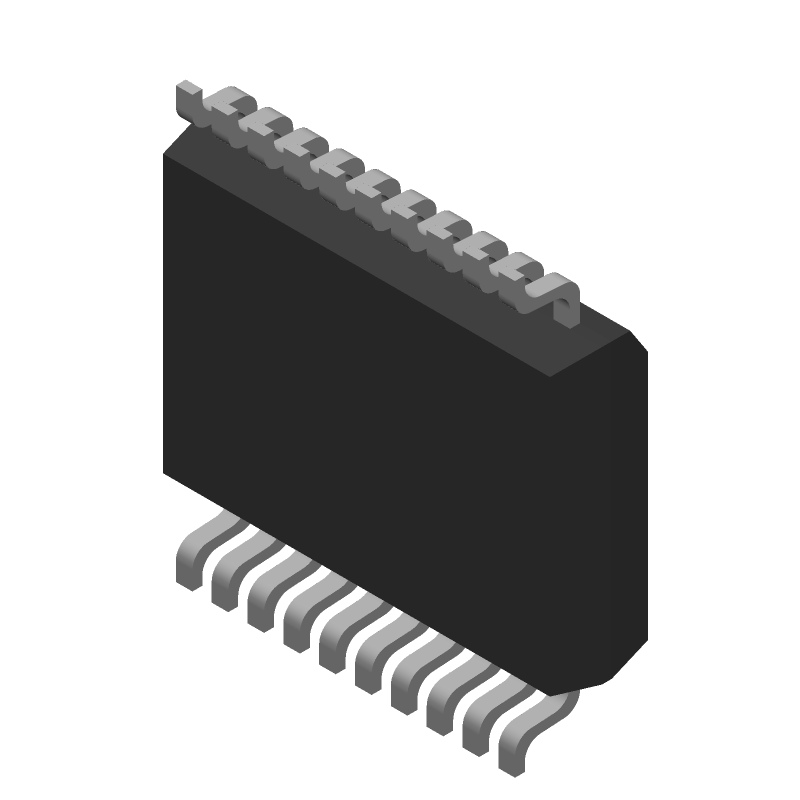

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX1202AEAP+ Part Data Attributes
|
|
MAX1202AEAP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1202AEAP+
Analog Devices Inc
ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | Ssop, Ssop20,.3 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1997-01-07 | |
| Analog Input Voltage-Max | 2.048 V | |
| Analog Input Voltage-Min | -2.048 V | |
| Conversion Time-Max | 10 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 Mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 1 | |
| Negative Supply Voltage-Nom | -5 V | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.133 Mhz | |
| Sample and Hold / Track and Hold | Track | |
| Seated Height-Max | 1.99 Mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 Mm |
Alternate Parts for MAX1202AEAP+
This table gives cross-reference parts and alternative options found for MAX1202AEAP+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1202AEAP+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1202BEAP+ | Analog Devices Inc | $8.5419 | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20 | MAX1202AEAP+ vs MAX1202BEAP+ |
| MAX1202BCAP | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20 | MAX1202AEAP+ vs MAX1202BCAP |
| MAX1202AEAP-T | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20 | MAX1202AEAP+ vs MAX1202AEAP-T |
| MAX1202BC/D | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS | MAX1202AEAP+ vs MAX1202BC/D |
| MAX1202BEAP | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20 | MAX1202AEAP+ vs MAX1202BEAP |
| MAX1202BCAP-T | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20 | MAX1202AEAP+ vs MAX1202BCAP-T |
| MAX1203AMJP | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, CDIP20 | MAX1202AEAP+ vs MAX1203AMJP |
| MAX188DC/D | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial Access | MAX1202AEAP+ vs MAX188DC/D |
MAX1202AEAP+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX1202AEAP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-impedance power supply.
-
The MAX1202AEAP+ requires a clock signal with a frequency range of 10MHz to 80MHz. The clock signal should be a low-jitter, high-frequency clock source, and it's recommended to use a dedicated clock source or a clock generator IC. The clock signal should be connected to the CLK pin, and the clock frequency should be set according to the desired sampling rate.
-
The maximum input voltage range for the MAX1202AEAP+ is ±VREF, where VREF is the reference voltage. The reference voltage can be set to 2.5V, 3.3V, or 5V, depending on the application. The input voltage range should be within the specified range to ensure accurate conversion and to prevent damage to the device.
-
The MAX1202AEAP+ has a programmable gain amplifier (PGA) that can be set to different gain settings using the GAIN[2:0] pins. The gain settings can be set to 1, 2, 4, 8, or 16, depending on the application. The gain settings should be set according to the input signal range and the desired output signal range.
-
The power consumption of the MAX1202AEAP+ depends on the operating mode, clock frequency, and supply voltage. In normal operation, the power consumption is typically around 100mW to 200mW. In power-down mode, the power consumption is reduced to around 1mW to 5mW.
