MCA1206MC1009FP500 by: Vishay Intertechnologies

Fixed Resistor, Thin Film, 0.4W, 10ohm, 200V, 1% +/-Tol, -50,50ppm/Cel, 1206,

Part Details for MCA1206MC1009FP500 by Vishay Intertechnologies

Results Overview of MCA1206MC1009FP500 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Energy and Power Systems Healthcare Transportation and Logistics Renewable Energy Telecommunications Automotive

MCA1206MC1009FP500 Information

MCA1206MC1009FP500 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCA1206MC1009FP500

Part # Distributor Description Stock Price Buy
DISTI # 749-MCA1206MC1009FP500TR-ND
DigiKey MCA 1206-50 1% AT P5 10R Min Qty: 5000 Lead time: 10 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.1590
$0.1590 Buy Now
DISTI # MCA1206MC1009FP500
Avnet Americas MCA 1206-50 1% AT P5 10R - Tape and Reel (Alt: MCA1206MC1009FP500) COO: United States of America (the) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel 0
  • 5,000 $0.1494
  • 10,000 $0.1486
  • 20,000 $0.1478
  • 30,000 $0.1471
  • 40,000 $0.1463
$0.1463 / $0.1494 Buy Now
DISTI # 594-MCA1206MC1009FP5
Mouser Electronics Thin Film Resistors - SMD 10 OHM 1% 50PPM 1/4W RoHS: Compliant 0
  • 1 $0.2600
  • 10 $0.2040
  • 100 $0.1760
  • 500 $0.1630
  • 1,000 $0.1620
  • 2,500 $0.1590
  • 5,000 $0.1580
  • 10,000 $0.1530
  • 25,000 $0.1520
$0.1520 / $0.2600 Order Now
DISTI # MCA1206MC1009FP500
TTI Thin Film Resistors - SMD 10 OHM 1% 50PPM 1/4W RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 0
  • 5,000 $0.1560
  • 20,000 $0.1500
$0.1500 / $0.1560 Buy Now
DISTI # MCA1206MC1009FP500
Avnet Abacus MCA 120650 1 AT P5 10R (Alt: MCA1206MC1009FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # MCA1206MC1009FP500
Avnet Asia MCA 1206-50 1% AT P5 10R (Alt: MCA1206MC1009FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days 0
RFQ
Vyrian Resistors 8396
RFQ

US Tariff Estimator: MCA1206MC1009FP500 by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MCA1206MC1009FP500
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MCA1206MC1009FP500

MCA1206MC1009FP500 CAD Models

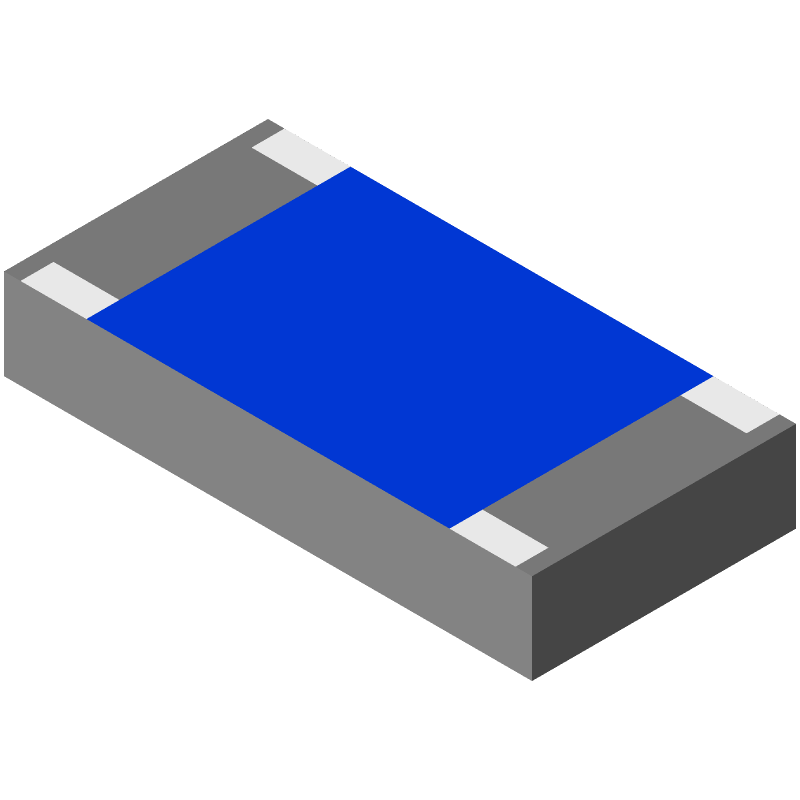

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCA1206MC1009FP500 Part Data Attributes

Parametric Data
MCA1206MC1009FP500 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCA1206MC1009FP500 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.4W, 10ohm, 200V, 1% +/-Tol, -50,50ppm/Cel, 1206,
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 9 Weeks
Additional Feature Anti-Sulfur, Rated Ac Voltage (V): 200
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.55 Mm
Package Length 3.2 Mm
Package Style Smt
Package Width 1.6 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.27 W
Rated Temperature 70 °C
Reference Standard Aec-Q200; Cecc40401-801
Resistance 10 Ω
Resistor Type Fixed Resistor
Size Code 1206
Surface Mount Yes
Technology Thin Film
Temperature Coefficient 50 Ppm/°C
Terminal Finish Tin Over Nickel
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 200 V

Alternate Parts for MCA1206MC1009FP500

This table gives cross-reference parts and alternative options found for MCA1206MC1009FP500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCA1206MC1009FP500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCA1206HC1009FP500 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP MCA1206MC1009FP500 vs MCA1206HC1009FP500
TNPW120610R0FHEC0H Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.27W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP MCA1206MC1009FP500 vs TNPW120610R0FHEC0H
9T12063A10R0FBPF4 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, -50,50ppm/Cel, 1206, MCA1206MC1009FP500 vs 9T12063A10R0FBPF4
MCA1206HC1009FP1 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP MCA1206MC1009FP500 vs MCA1206HC1009FP1
TNPW120610R1%T-2ET1E3 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, MCA1206MC1009FP500 vs TNPW120610R1%T-2ET1E3
TNPW120610R0FHEA0H Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.27W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP MCA1206MC1009FP500 vs TNPW120610R0FHEA0H
TNPW120610R0FHEA Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP MCA1206MC1009FP500 vs TNPW120610R0FHEA
MCA12060C1009FP500 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.25 W, 1 %, 50 ppm, 10 ohm, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT MCA1206MC1009FP500 vs MCA12060C1009FP500
9T12063A10R0FBPF3 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.25W, 10ohm, 200V, 1% +/-Tol, -50,50ppm/Cel, 1206, MCA1206MC1009FP500 vs 9T12063A10R0FBPF3
MCA1206HC1009FP500 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.25 W, 1 %, 50 ppm, 10 ohm, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT MCA1206MC1009FP500 vs MCA1206HC1009FP500
equivalents icon

MCA1206MC1009FP500 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MCA1206MC1009FP500 is 260°C for 10 seconds, with a peak temperature of 240°C.

  • Yes, the MCA1206MC1009FP500 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The MCA1206MC1009FP500 is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings at higher temperatures to ensure reliability.

  • Yes, the MCA1206MC1009FP500 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.

  • The recommended land pattern for the MCA1206MC1009FP500 is a rectangular pad with a minimum size of 1.5 mm x 3.2 mm, with a non-solder-mask-defined (NSMD) pad shape.
