MCP48FEB28-20E/ST Information
MCP48FEB28-20E/ST by Microchip Technology Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MCP48FEB28-20E/ST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83AH3248
|
Newark | Dac, Octal, 12Bit, -40 To 125Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:Spi, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Tssop, No. Of Pins:20Pins, Input Channel Type:Serial, Msl:Msl 1 - Unlimited Rohs Compliant: Yes |Microchip MCP48FEB28-20E/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 4 |
|
$9.2300 / $12.1700 | Buy Now |
|
DISTI #
150-MCP48FEB28-20E/ST-ND
|
DigiKey | IC DAC 12BIT V-OUT 20TSSOP Min Qty: 1 Lead time: 4 Weeks Container: Tube |
69 In Stock |
|
$9.2300 / $12.1700 | Buy Now |
|
DISTI #
MCP48FEB28-20E/ST
|
Avnet Americas | Digital to Analog Converter, 8 Channels, 12 bit, Voltage, Serial I2C, SPI, 2.7 V to 5.5 V, 20 Pins, TSSOP - Rail/Tube (Alt: MCP48FEB28-20E/ST) COO: Thailand RoHS: Not Compliant Min Qty: 74 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Tube | 8 |
|
$9.8125 / $10.4667 | Buy Now |
|
DISTI #
83AH3248
|
Avnet Americas | Digital to Analog Converter, 8 Channels, 12 bit, Voltage, Serial I2C, SPI, 2.7 V to 5.5 V, 20 Pins, TSSOP - Bulk (Alt: 83AH3248) COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 4 Partner Stock |
|
$9.2300 / $9.6900 | Buy Now |
|
DISTI #
579-MCP48FEB2820E/ST
|
Mouser Electronics | Digital to Analog Converters - DAC Octal Channel, 12-Bit, EEPROM, SPI DAC RoHS: Compliant | 79 |
|
$9.2300 / $12.1700 | Buy Now |
|
DISTI #
MCP48FEB28-20E/ST
|
Microchip Technology Inc | 8/10/12 -bit Octal DAC with SPI/I2C Interface and EEPROM, TSSOP, Projected EOL: 2044-06-29 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube | In Stock: 1702 and Alternates Available |
|
$8.8100 / $12.1700 | Buy Now |
|
|
Onlinecomponents.com | COO: Thailand RoHS: Compliant | 0 |
|
$7.9400 / $9.9000 | Buy Now |
|
DISTI #
MCP48FEB28-20E/ST
|
TME | IC: D/A converter, 12bit, Ch: 8, TSSOP20, -40÷125°C, tube Min Qty: 1 | 0 |
|
$11.0000 / $14.5000 | RFQ |
|
|
NAC | Octal Channel, 12-Bit, EEPROM, SPI DAC. Package: 20 TSSOP 4.4mm TUBE - MIXED SIGNAL PRODUCTS Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 74 | 1776 |
|
$9.5700 / $11.5400 | Buy Now |
|
DISTI #
MCP48FEB28-20E/ST
|
Avnet Silica | Digital to Analog Converter 8 Channels 12 bit Voltage Serial I2C SPI 27 V to 55 V 20 Pins TSSOP (Alt: MCP48FEB28-20E/ST) RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MCP48FEB28-20E/ST by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP48FEB28-20E/ST
MCP48FEB28-20E/ST CAD Models
-

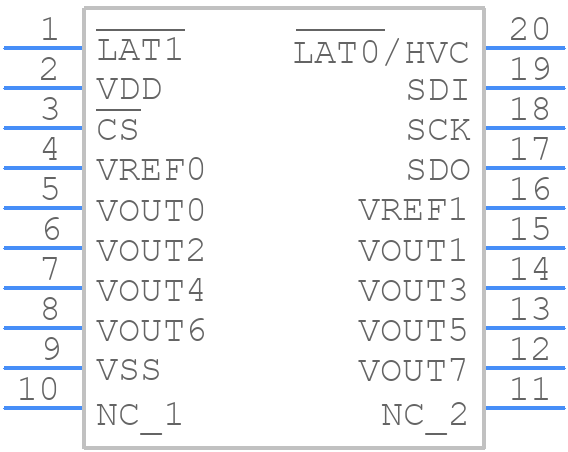

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP48FEB28-20E/ST Part Data Attributes
|
|
MCP48FEB28-20E/ST
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP48FEB28-20E/ST
Microchip Technology Inc
8/10/12 -bit Octal DAC with SPI/I2C Interface and EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, Tssop20,.25 | |
| Pin Count | 20 | |
| Manufacturer Package Code | TSSOP-20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 Mm | |
| Linearity Error-Max (EL) | 0.14648% | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Seated Height-Max | 1.2 Mm | |
| Settling Time-Nom (tstl) | 7.8 µS | |
| Supply Current-Max | 3.2 Ma | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 4.4 Mm |
Alternate Parts for MCP48FEB28-20E/ST
This table gives cross-reference parts and alternative options found for MCP48FEB28-20E/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP48FEB28-20E/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP48FEB28T-20E/ST | Microchip Technology Inc | $11.2200 | 8/10/12 -bit Octal DAC with SPI/I2C Interface and EEPROM | MCP48FEB28-20E/ST vs MCP48FEB28T-20E/ST |
MCP48FEB28-20E/ST Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or other unexpected behavior.
-
To ensure accurate voltage reference output, it is essential to decouple the VREF pin with a 0.1uF ceramic capacitor to GND, and also to use a low-noise, low-impedance power supply for VDD. Additionally, the VREF pin should be bypassed with a 10uF capacitor to GND for improved noise rejection.
-
The maximum capacitive load that can be driven by the MCP48FEB28-20E/ST's DAC output is 200pF. Exceeding this limit may cause instability or oscillations in the output signal.
-
To implement a voltage buffer or op-amp with the MCP48FEB28-20E/ST's DAC output, use an external op-amp with a high input impedance and low input bias current, such as the OP07 or OP27. The op-amp should be configured in a non-inverting amplifier configuration with a gain of 1 to maintain the DAC output voltage.
-
To minimize noise and ensure accurate operation, it is recommended to follow a star-grounding layout, keep analog and digital signals separate, and use a solid ground plane. The VREF pin should be routed away from noisy digital signals, and the DAC output should be routed to the load with a short, low-impedance path.
