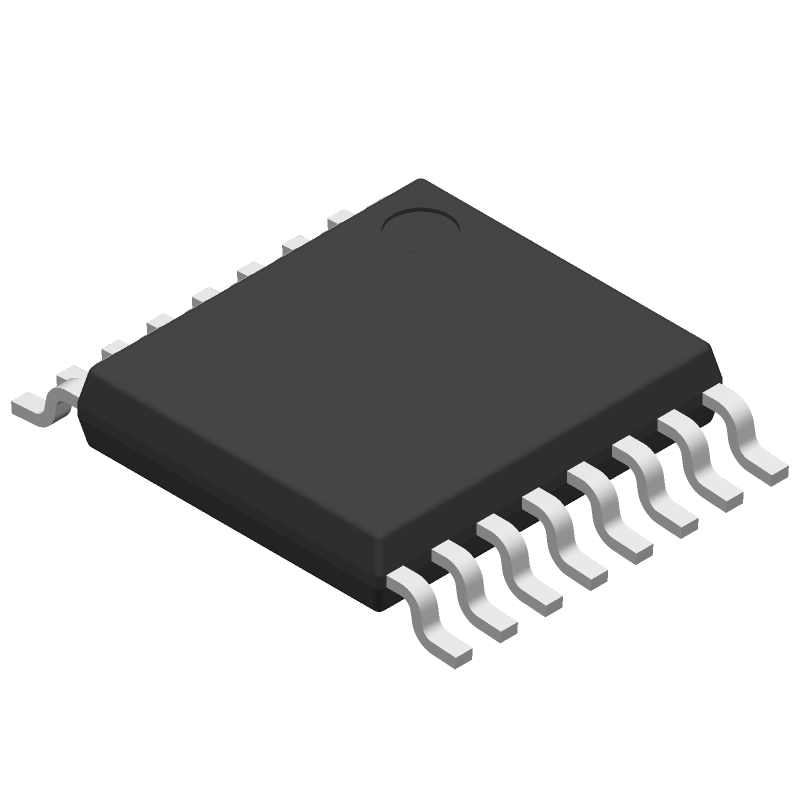

PCM4201PW Information
PCM4201PW by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for PCM4201PW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH4681
|
Newark | Ic, Adc 24-Bit Audio 1Ch 16-Tssop, |Texas Instruments PCM4201PW RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.5800 / $7.6200 | Buy Now |
|
DISTI #
296-18031-5-ND
|
DigiKey | IC DAS/ADC/DAC SPECIAL 16-TSSOP Min Qty: 270 Container: Tube |
0 Tube |
|
$4.2396 | Buy Now |
|
DISTI #
595-PCM4201PW
|
Mouser Electronics | Audio A/D Converter ICs Low Power 24-Bit Sin gle Ch Audio A/D A A 595-PCM4201PWR RoHS: Compliant | 0 |
|
$4.2300 / $6.9800 | Order Now |
|
DISTI #
PCM4201PW
|
TME | IC: A/D converter, Ch: 1, 24bit, 108ksps, TSSOP16, 1.65÷5.25VDC Min Qty: 1 | 0 |
|
$5.8500 / $8.4000 | RFQ |
|
|
Chip Stock | 1-Channel Single ADC Delta-Sigma 108ksps 24-bit Serial 16-Pin TSSOP Tube | 4000 |
|
RFQ | |
|
|
Vyrian | ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, PDSO16 | 9619 |
|
RFQ | |
|
|
Win Source Electronics | Analog-to-Digital Converter | IC ADC/AUDIO 24BIT 108K 16TSSOP | 2500 |
|
$3.9117 / $5.8676 | Buy Now |
US Tariff Estimator: PCM4201PW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
PCM4201PW CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PCM4201PW Part Data Attributes
|
|
PCM4201PW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCM4201PW
Texas Instruments
ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop-16 | |
| Pin Count | 16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Analog Input Voltage-Max | 5 V | |
| Analog Input Voltage-Min | ||
| Converter Type | Adc, Delta-Sigma | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Bit Code | 2S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.108 Mhz | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 16 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for PCM4201PW
This table gives cross-reference parts and alternative options found for PCM4201PW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCM4201PW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
PCM4201PW Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to power up the analog supply (VCCA) first, followed by the digital supply (VCCD). This ensures that the analog circuitry is stable before the digital circuitry is powered up.
-
To optimize clock jitter performance, use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly terminated and filtered. Additionally, use the internal clock jitter filter (CJF) feature to further reduce jitter.
-
The maximum allowed input signal level for the PCM4201PW is 2.5 Vrms. Exceeding this level may result in distortion and/or damage to the device.
-
To configure the PCM4201PW for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Additionally, set the WS pin to the desired word select frequency, and ensure that the LRCK pin is properly configured for the desired audio format.
-
The recommended layout and routing for the PCM4201PW involves separating the analog and digital signal paths, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, use a low-impedance power supply and decouple the power pins with high-quality capacitors.
