PIC12F683-E/P by:
Microchip Technology Inc

8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash

Part Details for PIC12F683-E/P by Microchip Technology Inc

Results Overview of PIC12F683-E/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC12F683-E/P Information

PIC12F683-E/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC12F683-E/P

Part # Distributor Description Stock Price Buy
DISTI # 89H0439
Newark Microcontroller Mcu, 8 Bit, Pic12, 20Mhz, Dip-8, Product Range:Pic12 Family Pic12F6Xx Series Microcontrollers, Device Core:Pic12, Operating Frequency Max:20Mhz, Program Memory Size:3.5Kb, No. Of Pins:8Pins, Ic Case/Package:Dip Rohs Compliant: Yes |Microchip PIC12F683-E/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 205
  • 1 $2.1100
$2.1100 Buy Now
DISTI # PIC12F683-E/P-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 8DIP Min Qty: 1 Lead time: 4 Weeks Container: Tube 221
In Stock
  • 1 $2.1100
$2.1100 Buy Now
DISTI # 89H0439
Avnet Americas MCU 8-bit PIC12 PIC RISC 3.5KB Flash 5V 8-Pin PDIP Tube - Bulk (Alt: 89H0439) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 205 Partner Stock
  • 1 $2.1100
$2.1100 Buy Now
DISTI # PIC12F683-E/P
Avnet Americas MCU 8-bit PIC12 PIC RISC 3.5KB Flash 5V 8-Pin PDIP Tube - Rail/Tube (Alt: PIC12F683-E/P) COO: China RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 300 $2.4143
  • 420 $2.2838
  • 720 $2.2237
  • 1,500 $2.1667
  • 3,000 $2.1125
$2.1125 / $2.4143 Buy Now
DISTI # 579-PIC12F683-E/P
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB 128 RAM 6 I/O RoHS: Compliant 3096
  • 1 $2.1200
$2.1200 Buy Now
DISTI # PIC12F683-E/P
Microchip Technology Inc 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash, PDIP, Projected EOL: 2034-04-22 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 5825 and Alternates Available
  • 1 $1.8700
  • 25 $1.8100
  • 100 $1.7600
  • 1,000 $1.6300
  • 5,000 $1.5400
$1.5400 / $1.8700 Buy Now
DISTI # 70046970
RS 8-PIN, 3.5 KB FLASH, 128 RAM, 6 I/O, PDIP Min Qty: 300 Package Multiple: 1 Lead time: 49 Weeks, 0 Days Container: Bulk 0
  • 300 $2.5400
  • 1,500 $2.4100
  • 3,000 $2.2800
$2.2800 / $2.5400 RFQ
Future Electronics PIC12F Series 3.5 kB Flash 128 B SRAM Through Hole 8-Bit Microcontroller -PDIP-8 RoHS: Compliant pbFree: Yes Min Qty: 480 Package Multiple: 60 Lead time: 4 Weeks Container: Tube 0
Tube
  • 60 $2.1400
  • 120 $2.1200
  • 180 $2.1100
  • 240 $2.1000
  • 300 $2.0700
$2.0700 / $2.1400 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 3.5KB Flash 5V Automotive 8-Pin PDIP Tube COO: Thailand RoHS: Compliant 0
  • 60 $2.3200
  • 120 $2.2800
  • 300 $2.1900
  • 540 $2.1600
  • 1,020 $2.0900
  • 2,520 $2.0600
  • 5,040 $2.0200
  • 7,500 $1.9900
$1.9900 / $2.3200 Buy Now
Bristol Electronics   Min Qty: 2 90
  • 2 $3.2077
  • 9 $2.0850
  • 25 $1.6038
  • 79 $1.4970
$1.4970 / $3.2077 Buy Now
Quest Components   72
  • 1 $3.6960
  • 9 $2.7104
  • 29 $2.4640
$2.4640 / $3.6960 Buy Now
Quest Components   72
  • 1 $4.2960
  • 3 $2.8640
  • 10 $2.1480
$2.1480 / $4.2960 Buy Now
NAC 3.5 KB Flash, 128 RAM, 6 I/O. Package: 8 PDIP .300in TUBE - LOW PINCOUT FLASH MR & BL DVCS Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 4680
  • 1 $2.6000
  • 100 $2.3500
  • 500 $2.1700
  • 1,000 $2.1100
$2.1100 / $2.6000 Buy Now
DISTI # PIC12F683-E/P
Avnet Silica MCU 8bit PIC12 PIC RISC 35KB Flash 5V 8Pin PDIP Tube (Alt: PIC12F683-E/P) RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC12F683-E/P
EBV Elektronik MCU 8bit PIC12 PIC RISC 35KB Flash 5V 8Pin PDIP Tube (Alt: PIC12F683-E/P) RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 3.5KB Flash 5V Automotive 8-Pin PDIP Tube COO: Thailand RoHS: Compliant 0
  • 60 $2.3200
  • 120 $2.2800
  • 300 $2.1900
  • 540 $2.1600
  • 1,020 $2.0900
  • 2,520 $2.0600
  • 5,040 $2.0200
  • 7,500 $1.9900
$1.9900 / $2.3200 Buy Now

US Tariff Estimator: PIC12F683-E/P by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC12F683-E/P
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC12F683-E/P

PIC12F683-E/P CAD Models

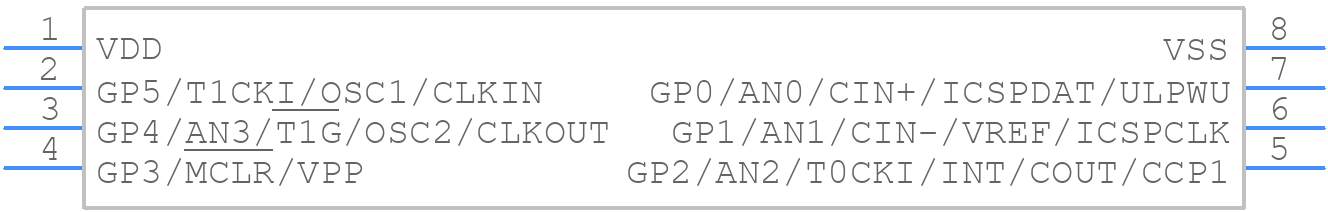

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC12F683-E/P Part Data Attributes

Parametric Data
PIC12F683-E/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC12F683-E/P Microchip Technology Inc 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DIP
Package Description Dip, Dip8,.3
Pin Count 8
Manufacturer Package Code PDIP-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature Also Operates By 3v Minimum Supply At 10 Mhz
Address Bus Width
Bit Size 8
Boundary Scan Yes
CPU Family Pic
Clock Frequency-Max 20 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.27 Mm
Number of I/O Lines 6
Number of Terminals 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape Rectangular
Package Style In-Line
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 128
ROM (words) 3584
ROM Programmability Flash
Screening Level Aec-Q100; Ts 16949
Seated Height-Max 5.33 Mm
Speed 20 Mhz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount No
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 7.62 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC12F683-E/P

This table gives cross-reference parts and alternative options found for PIC12F683-E/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12F683-E/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC12F683-E/SN Microchip Technology Inc $0.7079 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash PIC12F683-E/P vs PIC12F683-E/SN
PIC12F683-I/SN Microchip Technology Inc $1.7726 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash PIC12F683-E/P vs PIC12F683-I/SN
PIC12F683-I/P Microchip Technology Inc $2.1021 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash PIC12F683-E/P vs PIC12F683-I/P
PIC12F683T-I/MF Microchip Technology Inc $2.2350 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words fla PIC12F683-E/P vs PIC12F683T-I/MF
PIC12F683-E/MD Microchip Technology Inc $2.9985 8 Pin, 3.5KB Std Flash, 128 RAM, 6 I/O PIC12F683-E/P vs PIC12F683-E/MD
PIC12F683T-I/MD Microchip Technology Inc $3.1700 8 Pin, 3.5KB Std Flash, 128 RAM, 6 I/O PIC12F683-E/P vs PIC12F683T-I/MD
PIC12F683T-E/SNVAO Microchip Technology Inc Check for Price APG STANDARD PIC12F683-E/P vs PIC12F683T-E/SNVAO
PIC12F683T-E/SN Microchip Technology Inc Check for Price 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange coroe, 2K words flash PIC12F683-E/P vs PIC12F683T-E/SN
PIC12F683T-I/SN Microchip Technology Inc Check for Price 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash PIC12F683-E/P vs PIC12F683T-I/SN
PIC12F683T-I/SNVAO Microchip Technology Inc Check for Price 8 pin PIC w/CCP/PWM, 10 bit A2D, comparator, midrange core, 2K words flash PIC12F683-E/P vs PIC12F683T-I/SNVAO
equivalents icon

PIC12F683-E/P Related Parts

PIC12F683-E/P Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC12F683-E/P is 20 MHz.

  • The oscillator can be configured using the FOSC2:FOSC0 bits in the CONFIG register. The oscillator can be set to use an external crystal, an external resistor-capacitor (RC) circuit, or an internal oscillator.

  • The maximum current that can be sourced or sunk by the I/O pins is 25 mA.

  • The ADC can be used by setting the ADCON0 register to select the channel and start the conversion. The result is stored in the ADRESH and ADRESL registers.

  • The MCLR pin is the Master Clear pin, which is used to reset the microcontroller. It can also be used as a general-purpose input/output pin if the MCLR function is disabled.
