PSLC12C-LF-T7 Information
PSLC12C-LF-T7 by ProTek Devices is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PSLC12C-LF-T7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 320 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 5 | 70 |
|
$0.7313 / $1.1250 | Buy Now |
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 350W, 12V V(RWM), BIDIRECTIONAL, 2 ELEMENT, SILICON | 56 |
|
$0.7500 / $1.5000 | Buy Now |
US Tariff Estimator: PSLC12C-LF-T7 by ProTek Devices
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PSLC12C-LF-T7

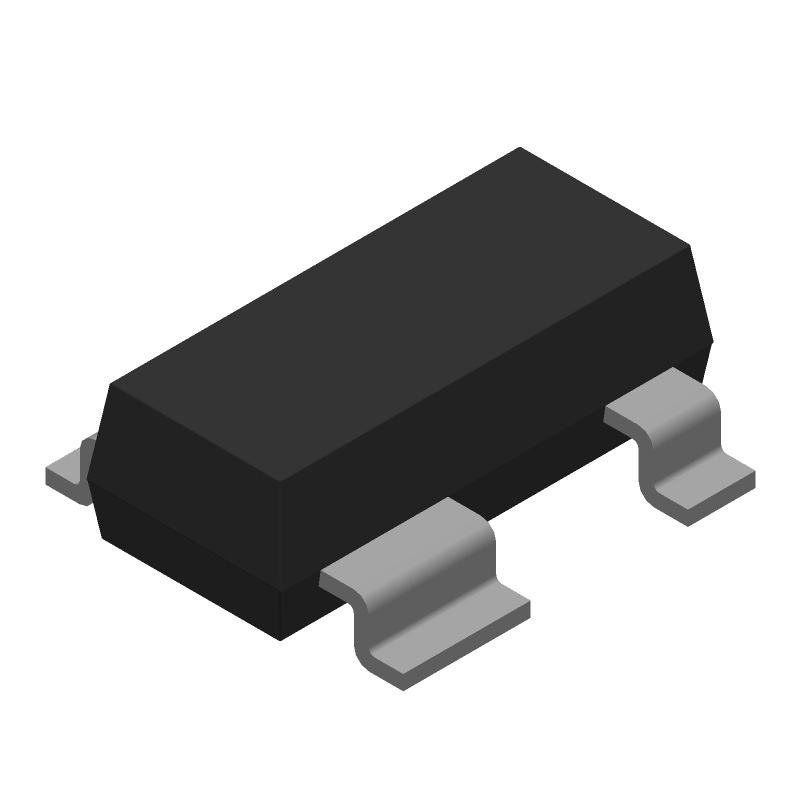

PSLC12C-LF-T7 CAD Models
-
