RCLAMP3304NATCT by Semtech Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RCLAMP3304NATCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84X9410
|
Newark | Esd Protection Device, 3.3V, Slp2626P10, Clamping Voltage Vc Max:18V, Diode Case Style:Slp2626P10, No. Of Pins:10Pins, Operating Voltage:3.3V, Power Dissipation Pd:450W, Product Range:Railclamp Series, Clamping Voltage Max:18V Rohs Compliant: Yes |Semtech RCLAMP3304NATCT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 420 |
|
$0.8830 / $1.8500 | Buy Now |
|
DISTI #
27W7596
|
Newark | Esd Protection Device, 3.3V, Slp2626P10, Clamping Voltage Vc Max:18V, Diode Case Style:Slp2626P10, No. Of Pins:10Pins, Operating Voltage:3.3V, Power Dissipation Pd:450W, Product Range:Railclamp Series, Clamping Voltage Max:18V Rohs Compliant: Yes |Semtech RCLAMP3304NATCT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.6100 / $0.7920 | Buy Now |
|
DISTI #
RCLAMP3304NATCTCT-ND
|
DigiKey | TVS DIODE 3.3VWM 18V SLP2626P10 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
114532 In Stock |
|
$0.6000 / $2.2000 | Buy Now |
|
DISTI #
RCLAMP3304NATCT
|
Avnet Americas | ESD Protection Device, 18 V, SLP2626P10, 10 Pins, 3.3 V, 5 pF - Tape and Reel (Alt: RCLAMP3304NATCT) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel | 9000 |
|
$0.6000 / $0.6400 | Buy Now |
|
DISTI #
947-RCLAMP3304NATCT
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3.3V 25A 4 LINE RoHS: Compliant | 8494 |
|
$0.6860 / $1.8500 | Buy Now |
|
DISTI #
V72:2272_07342278
|
Arrow Electronics | ESD Suppressor Diode Array Uni-Dir 3.3V 10-Pin SLP EP T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2224 Container: Cut Strips | Americas - 32 |
|
$0.6155 / $1.0313 | Buy Now |
|
|
Future Electronics | RCLAMP Series 18 V 5 pF Surface Mount Bi-Directional TVS Array - SLP2626P10 EP RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel | 84000Reel |
|
$0.5650 | Buy Now |
|
|
Future Electronics | RCLAMP Series 18 V 5 pF Surface Mount Bi-Directional TVS Array - SLP2626P10 EP RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Cut Tape/Mini-Reel | 1206Cut Tape/Mini-Reel |
|
$0.9250 / $1.2500 | Buy Now |
|
DISTI #
62361811
|
Verical | ESD Suppressor Diode Array Uni-Dir 3.3V 10-Pin SLP EP T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 2224 | Americas - 32 |
|
$0.6155 / $0.8753 | Buy Now |
|
|
Bristol Electronics | 3000 |
|
RFQ |
US Tariff Estimator: RCLAMP3304NATCT by Semtech Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for RCLAMP3304NATCT
RCLAMP3304NATCT CAD Models
-

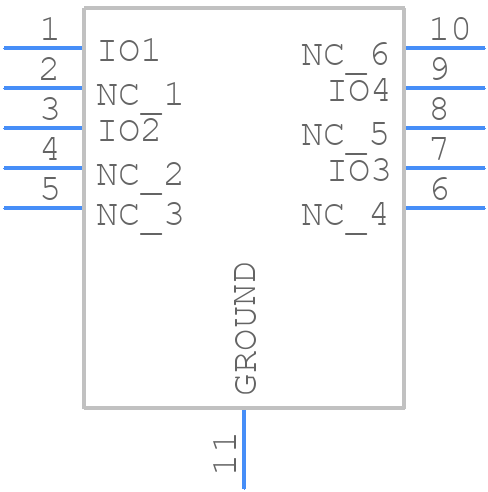

Part Symbol
-
Footprint
-

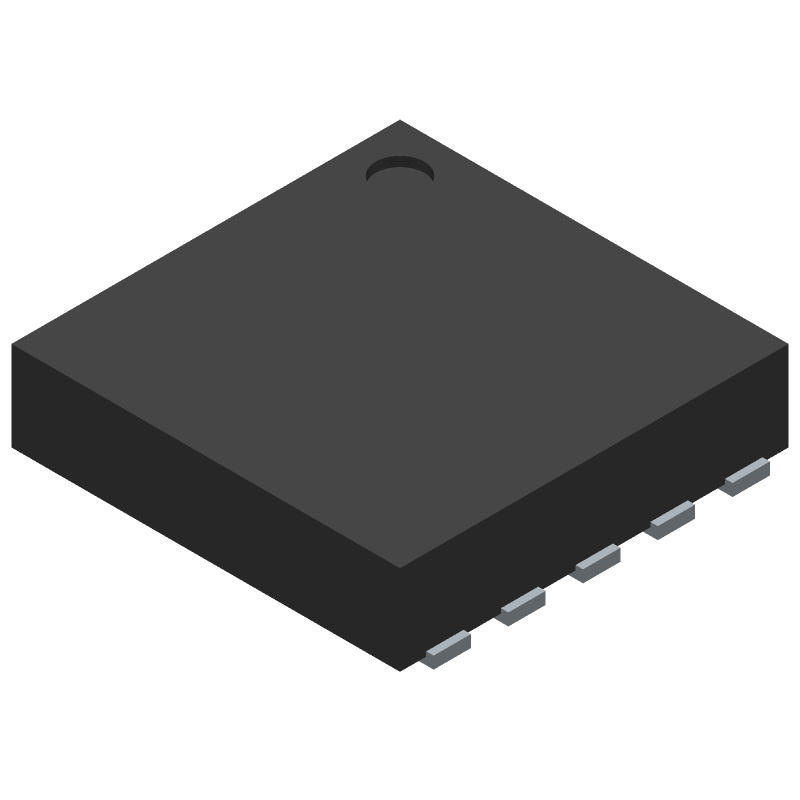

3D Model
