SLD430WBD2PT3 Information
SLD430WBD2PT3 by ROHM Semiconductor is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SLD430WBD2PT3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
36809488
|
Verical | LED Uni-Color White 2-Pin Bulk RoHS: Compliant Min Qty: 30 Package Multiple: 1 Date Code: 1801 | Americas - 30 |
|
$2.5124 | Buy Now |
|
DISTI #
SLD430WBD2PT3
|
Avnet Silica | LED PACKAGE OVAL TYPEF4 ANGLE 140 COLORWHITE LUMINOUS (Alt: SLD430WBD2PT3) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: SLD430WBD2PT3 by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SLD430WBD2PT3
SLD430WBD2PT3 CAD Models
-
Part Symbol
-

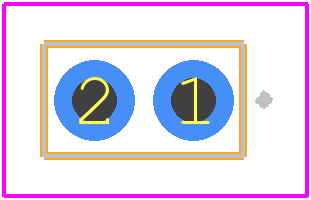

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SLD430WBD2PT3 Part Data Attributes
|
|
SLD430WBD2PT3
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SLD430WBD2PT3
ROHM Semiconductor
Single Color LED, White, Colorless Transparent, 4.25mm
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8541.41.00.00 | |
| Date Of Intro | 2019-10-23 | |
| Color | White | |
| Configuration | Single | |
| Forward Current-Max | 0.03 A | |
| Lens Type | Colorless Transparent | |
| Luminous Intensity-Nom | 1850.0 Mcd | |
| Mounting Feature | Radial Mount | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | Single Color Led | |
| Overall Height | 5 Mm | |
| Packing Method | Bulk | |
| Shape | Oval | |
| Size | 4.25 Mm | |
| Surface Mount | No | |
| Terminal Pitch | 2.5 Mm |
