Diodes / Transient Suppressors / SLD8S33A
Datasheets
SLD8S33A by: Littelfuse Inc

Trans Voltage Suppressor Diode,

Part Details for SLD8S33A by Littelfuse Inc

Results Overview of SLD8S33A by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

SLD8S33A Information

SLD8S33A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SLD8S33A

Part # Distributor Description Stock Price Buy
DISTI # 26AH0103
Newark Tvs Diode, 7Kw, 33V, Unidir, Do-218Ab, Product Range:Sld8S Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:33V, Clamping Voltage Vc Max:53.3V, Diode Case Style:Do-218Ab, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Littelfuse SLD8S33A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 133
  • 1 $4.3500
  • 10 $3.3600
  • 25 $3.1100
$3.1100 / $4.3500 Buy Now
DISTI # 34AC6005
Newark Auto Tvs Smto Hi-Power/ T&r Rohs Compliant: Yes |Littelfuse SLD8S33A RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 1 $2.1900
  • 2,000 $2.1000
  • 4,000 $1.9800
  • 8,000 $1.8700
  • 12,000 $1.8200
  • 20,000 $1.7900
$1.7900 / $2.1900 Buy Now
DISTI # F8143CT-ND
DigiKey TVS DIODE 33VWM 53.3VC SMTO-263 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5169
In Stock
  • 1 $3.6100
  • 10 $2.6200
  • 100 $1.8694
  • 500 $1.7052
  • 1,000 $1.5484
$1.5484 / $3.6100 Buy Now
DISTI # 576-SLD8S33A
Mouser Electronics ESD Protection Diodes / TVS Diodes 33V 7kW UNI-DIR SLD8S AEC-Q101 RoHS: Compliant 753
  • 1 $3.6100
  • 10 $2.6200
  • 100 $1.8700
  • 500 $1.6700
  • 1,000 $1.5800
$1.5800 / $3.6100 Buy Now
Future Electronics TVS Diodes - Transient Voltage Suppressors 33V 5mA Uni-Dir AEC-Q101 RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Container: Reel 2000
Reel
  • 500 $1.3900
  • 1,000 $1.3800
  • 2,000 $1.3700
  • 2,500 $1.3600
$1.3600 / $1.3900 Buy Now
Future Electronics TVS Diodes - Transient Voltage Suppressors 33V 5mA Uni-Dir AEC-Q101 RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Container: Reel 0
Reel
  • 500 $1.3900
  • 1,000 $1.3800
  • 2,000 $1.3700
  • 2,500 $1.3600
$1.3600 / $1.3900 Buy Now
DISTI # 90729369
Verical Diode TVS Single Uni-Dir 33V 7KW Automotive AEC-Q101 2-Pin(1+Tab) SMTO-263 RoHS: Exempt Min Qty: 15 Package Multiple: 1 Date Code: 2231 Americas - 489
  • 15 $3.2400
  • 50 $2.3500
$2.3500 / $3.2400 Buy Now
DISTI # 66970890
Verical Diode TVS Single Uni-Dir 33V 7KW Automotive AEC-Q101 2-Pin(1+Tab) SMTO-263 RoHS: Exempt Min Qty: 21 Package Multiple: 1 Date Code: 2301 Americas - 468
  • 21 $3.9181
  • 25 $3.7498
  • 50 $3.6069
  • 100 $3.4845
  • 250 $3.3788
$3.3788 / $3.9181 Buy Now
DISTI # SLD8S33A
TTI ESD Protection Diodes / TVS Diodes 33V 7kW UNI-DIR SLD8S AEC-Q101 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 0
  • 500 $1.4000
  • 1,000 $1.3800
$1.3800 / $1.4000 Buy Now
DISTI # SLD8S33A
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 489
  • 1 $3.2400
  • 10 $2.3500
  • 50 $2.3000
  • 100 $1.6400
  • 200 $1.6000
  • 500 $1.5300
$1.5300 / $3.2400 Buy Now
LCSC 132A 7kW 53.3V 36.7V Unidirectional 33V SMTO-263 TVS Diodes RoHS 154
  • 1 $2.0345
  • 10 $1.7427
  • 30 $1.5612
  • 100 $1.3734
  • 500 $1.1174
  • 1,000 $1.0801
$1.0801 / $2.0345 Buy Now
New Advantage Corporation TVS Diodes - Transient Voltage Suppressors 33V 5mA Uni-Dir AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 500 1000
  • 500 $2.3200
  • 1,000 $2.1400
$2.1400 / $2.3200 Buy Now

US Tariff Estimator: SLD8S33A by Littelfuse Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SLD8S33A
Littelfuse Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SLD8S33A

SLD8S33A CAD Models

  • Part Symbol

    schematic symbol

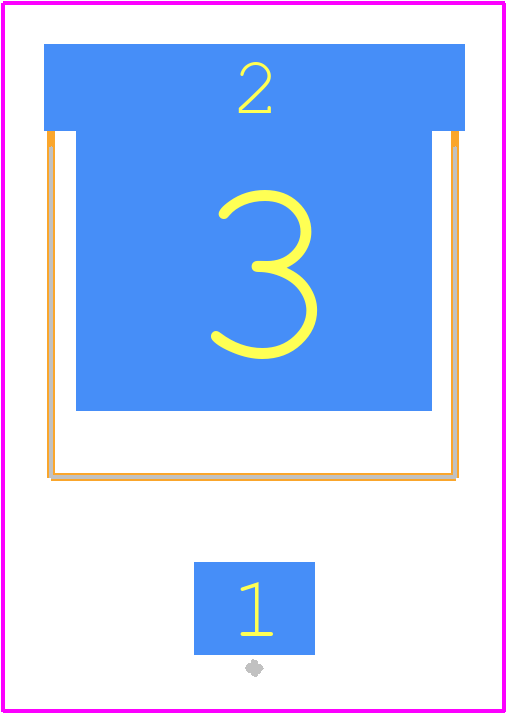

  • Footprint

    pcb footprint

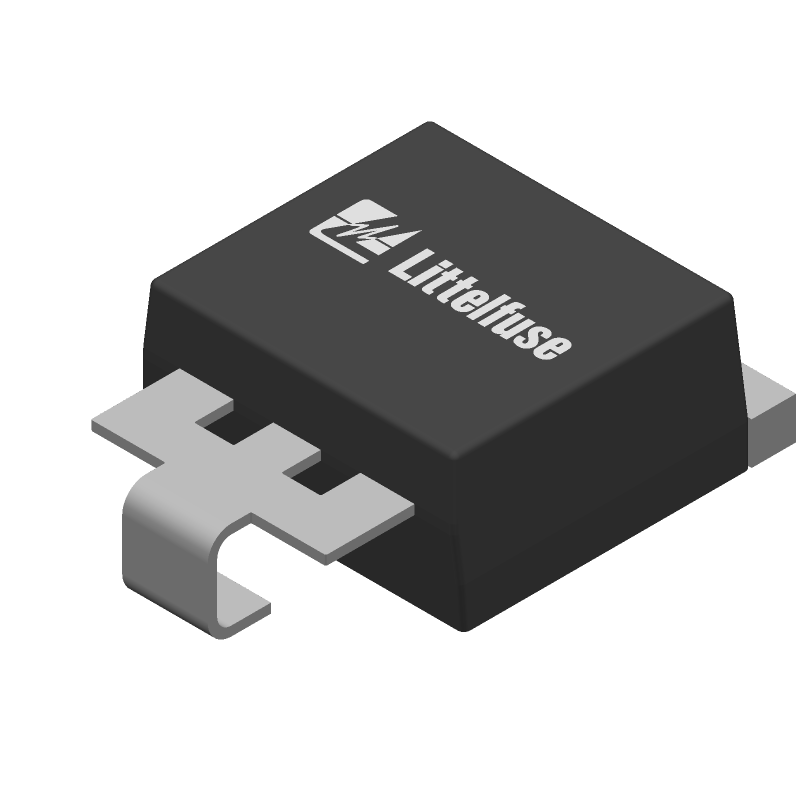

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SLD8S33A Part Data Attributes

Parametric Data
SLD8S33A Littelfuse Inc
Buy Now Datasheet
Compare Parts:
SLD8S33A Littelfuse Inc Trans Voltage Suppressor Diode,
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Date Of Intro 2016-08-24
Additional Feature Excellent Clamping Capability
Breakdown Voltage-Max 40.6 V
Breakdown Voltage-Min 36.7 V
Breakdown Voltage-Nom 38.65 V
Clamping Voltage-Max 53.3 V
Configuration Single
Diode Element Material Silicon
Diode Type Trans Voltage Suppressor Diode
Forward Voltage-Max (VF) 1.8 V
JESD-30 Code R-PSSO-C1
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 7000 W
Number of Elements 1
Number of Terminals 1
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Polarity Unidirectional
Power Dissipation-Max 8 W
Reference Standard Aec-Q101; Iec-61000-4-2, 4-4; Ul Recognized
Rep Pk Reverse Voltage-Max 33 V
Reverse Current-Max 50 µA
Reverse Test Voltage 33 V
Surface Mount Yes
Technology Avalanche
Terminal Finish Matte Tin (Sn)
Terminal Form C Bend
Terminal Position Single
Time@Peak Reflow Temperature-Max (s) 30
equivalents icon

SLD8S33A Related Parts

SLD8S33A Frequently Asked Questions (FAQ)

  • A good PCB layout for the SLD8S33A involves keeping the input and output traces separate, using a solid ground plane, and placing the TVS diode close to the input pins to minimize inductance.

  • Choose the correct SLD8S33A variant by considering the working voltage, peak pulse current, and package type required for your application. Consult the datasheet and Littelfuse's selection guide for guidance.

  • The SLD8S33A has an operating temperature range of -40°C to 150°C, but the maximum operating temperature may vary depending on the specific application and environmental conditions.

  • Yes, the SLD8S33A is suitable for high-frequency applications up to 1 GHz. However, the device's performance may degrade at higher frequencies, and additional filtering or impedance matching may be required.

  • Follow the recommended soldering profile and handling procedures outlined in the datasheet and Littelfuse's application notes to ensure proper soldering and mounting of the SLD8S33A.
