SMF4L24CA Information
SMF4L24CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMF4L24CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8728
|
Newark | Tvs Diode, 2Kw, 24V, Bidir, Sod-123Fl Rohs Compliant: Yes |Littelfuse SMF4L24CA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 65 |
|
$0.0900 | Buy Now |
|
DISTI #
40AH0009
|
Newark | "tvs Smf4L 24V Bi, 7 T&r"/ T&r |Littelfuse SMF4L24CA RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.1200 / $0.1790 | Buy Now |
|
DISTI #
18-SMF4L24CACT-ND
|
DigiKey | TVS DIODE 24VWM 38.9VC SOD123F Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
78156 In Stock |
|
$0.0919 / $0.4300 | Buy Now |
|
DISTI #
576-SMF4L24CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SMF4L - CA 24V RoHS: Compliant | 8227 |
|
$0.1050 / $0.4300 | Buy Now |
|
DISTI #
75744333
|
RS | TVS SMF4L 24V Bi, 7'' T&R" Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1840 / $0.2000 | RFQ |
|
|
Future Electronics | SMF4L Series 400 W 24 V Bi-Directional Surface Mount TVS Diode - SOD-123FL RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.0894 / $0.0960 | Buy Now |
|
DISTI #
SMF4L24CA
|
TTI | ESD Protection Diodes / TVS Diodes SMF4L - CA 24V RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 6000 In Stock |
|
$0.0870 / $0.0930 | Buy Now |
|
DISTI #
SMF4L24CA-LF
|
TME | Diode: TVS, 0.4kW, 26.7÷29.5V, 10.3A, bidirectional, ±5%, SOD123F Min Qty: 1 | 0 |
|
$0.1200 / $0.4200 | RFQ |
|
|
Chip Stock | SMF4LSeries400W24VBi-DirectionalSurfaceMountTVSDiode-SOD-123FL | 6320 |
|
RFQ | |
|
|
LCSC | 10.3A10/1000us 2kW8/20us 38.9V 29.5V Bidirectional 24V SOD-123FL TVS Diodes RoHS | 155 |
|
$0.1105 / $0.2283 | Buy Now |
US Tariff Estimator: SMF4L24CA by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMF4L24CA
SMF4L24CA CAD Models
-
Part Symbol
-
Footprint
-

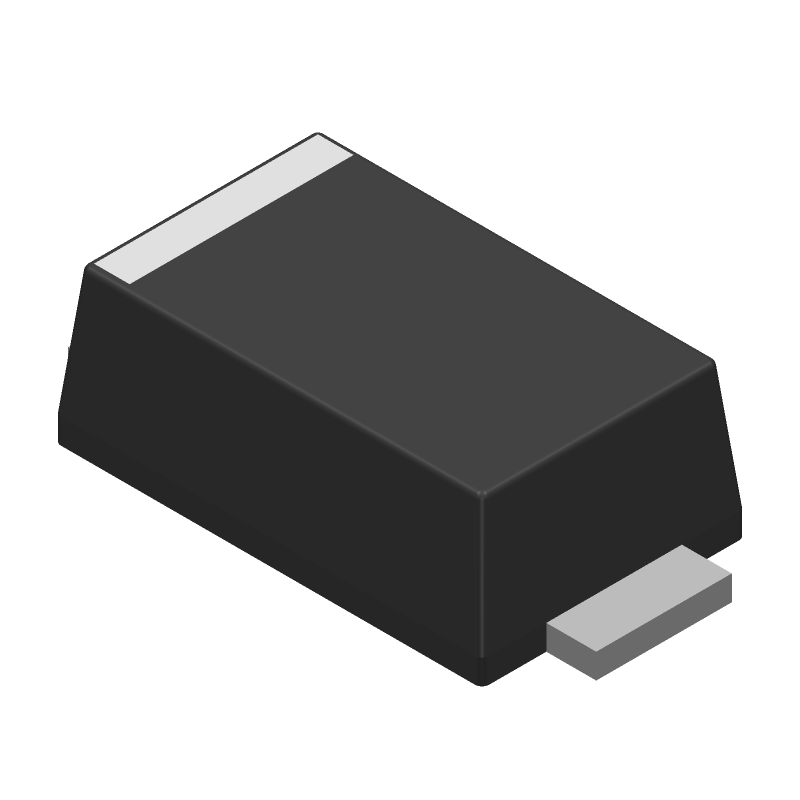

3D Model
