SPT02-236DDB Information
SPT02-236DDB by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SPT02-236DDB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-13827-1-ND
|
DigiKey | TVS DIODE 36VWM 46VC 2UQFN Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
5337 In Stock |
|
$0.2621 / $0.8900 | Buy Now |
|
DISTI #
SPT02-236DDB
|
Avnet Americas | TVS Diode, Unidirectional, 36 V, 46 V, uQFN, 2 Pins - Tape and Reel (Alt: SPT02-236DDB) COO: France RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.2599 / $0.2970 | Buy Now |
|
DISTI #
SPT02-236DDB
|
Avnet Americas | TVS Diode, Unidirectional, 36 V, 46 V, uQFN, 2 Pins - Tape and Reel (Alt: SPT02-236DDB) COO: France RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.2599 / $0.2970 | Buy Now |
|
DISTI #
511-SPT02-236DDB
|
Mouser Electronics | Board Mount Surge Protectors Power Line Surge 6V to 36V 300mA RoHS: Compliant | 5006 |
|
$0.2640 / $0.8900 | Buy Now |
|
|
STMicroelectronics | 2 line 25 A- 8/20 ?s, 36 V TVS in QFN-3L COO: France RoHS: Compliant Min Qty: 1 | 5006 |
|
$0.3800 / $0.8700 | Buy Now |
|
DISTI #
SPT02-236DDB
|
TME | Diode: TVS array, 38V, unidirectional, UQFN2, Ch: 2, reel,tape Min Qty: 1 | 0 |
|
$0.3210 / $0.7600 | RFQ |
|
|
Ameya Holding Limited | TVS DIODE 36V 46V 2UQFN | 396000 |
|
RFQ | |
|
DISTI #
SPT02-236DDB
|
Avnet Silica | TVS Diode Unidirectional 36 V 46 V uQFN 2 Pins (Alt: SPT02-236DDB) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SPT02-236DDB
|
EBV Elektronik | TVS Diode Unidirectional 36 V 46 V uQFN 2 Pins (Alt: SPT02-236DDB) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days | EBV - 378000 |
|
Buy Now |
US Tariff Estimator: SPT02-236DDB by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SPT02-236DDB
SPT02-236DDB CAD Models
-
Part Symbol
-
Footprint
-

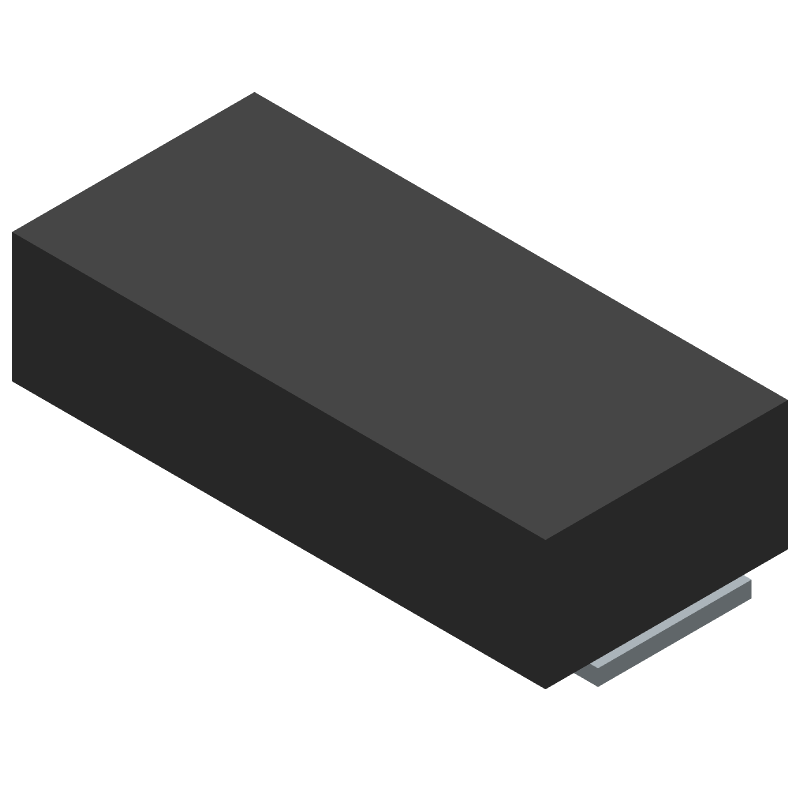

3D Model
