Part Details for SST25VF080B-50-4C-S2AF-T by Microchip Technology Inc
Results Overview of SST25VF080B-50-4C-S2AF-T by Microchip Technology Inc
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SST25VF080B-50-4C-S2AF-T Information
SST25VF080B-50-4C-S2AF-T by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for SST25VF080B-50-4C-S2AF-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC7757
|
Newark | Flash Memory, 8-Mbit, 50Mhz, Soic-8, Flash Memory Type:Serial Nor, Memory Size:8Mbit, Flash Memory Configuration:1M X 8Bit, Ic Interface Type:Serial, Spi, Memory Case Style:Soic, No. Of Pins:8Pins, Clock Frequency:50Mhz, Access Rohs Compliant: Yes |Microchip SST25VF080B-50-4C-S2AF-T RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 12600 |
|
$1.3500 | Buy Now |
|
DISTI #
28AC3223
|
Newark | Soij 2.7V To 3.6V 8Mbit Spi Serial Flash Rohs Compliant: Yes |Microchip SST25VF080B-50-4C-S2AF-T RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.3500 | Buy Now |
|
DISTI #
SST25VF080B-50-4C-S2AF-TCT-ND
|
DigiKey | IC FLASH 8MBIT SPI 50MHZ 8SOIC Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11904 In Stock |
|
$1.3500 / $1.4500 | Buy Now |
|
DISTI #
SST25VF080B-50-4C-S2AF-T
|
Avnet Americas | Flash Serial-SPI 3.3V 8Mbit 1M x 8bit 8ns 8-Pin SOIC T/R - Tape and Reel (Alt: SST25VF080B-50-4C-S2AF-T) COO: Thailand RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 4 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.1250 / $1.2857 | Buy Now |
|
DISTI #
804-25VF080B5CS2AF-T
|
Mouser Electronics | NOR Flash 8M (1Mx8) 50MHz 2.7-3.6V Commercial RoHS: Compliant | 968 |
|
$1.3500 / $1.4500 | Buy Now |
|
DISTI #
E54:1762_07225027
|
Arrow Electronics | NOR Flash Serial-SPI 3.3V 8M-bit 1M x 8 8ns 8-Pin SOIC T/R RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 4 Weeks | Europe - 6300 |
|
$1.0668 | Buy Now |
|
DISTI #
V72:2272_06507955
|
Arrow Electronics | NOR Flash Serial-SPI 3.3V 8M-bit 1M x 8 8ns 8-Pin SOIC T/R COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2217 Container: Cut Strips | Americas - 500 |
|
$1.2080 / $1.2900 | Buy Now |
|
DISTI #
SST25VF080B-50-4C-S2AF-T
|
Microchip Technology Inc | 2.7V to 3.6V 8Mbit SPI Serial Flash, SOIJ, Projected EOL: 2035-10-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tape & Reel | In Stock: 66700 and Alternates Available |
|
$1.2200 / $1.4500 | Buy Now |
|
DISTI #
70451813
|
RS | 2.7V TO 3.6V 8MBIT SPI SERIAL FLASH8 SOIJ .208IN T/R Min Qty: 2100 Package Multiple: 1 Lead time: 23 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4600 | RFQ |
|
|
Future Electronics | SST25VF Series 8 Mbit 1 M x 8 3 V Surface Mount SPI Serial Flash - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2100 Package Multiple: 2100 Lead time: 4 Weeks Container: Reel | 2100Reel |
|
$1.1000 | Buy Now |
US Tariff Estimator: SST25VF080B-50-4C-S2AF-T by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SST25VF080B-50-4C-S2AF-T
SST25VF080B-50-4C-S2AF-T CAD Models
-

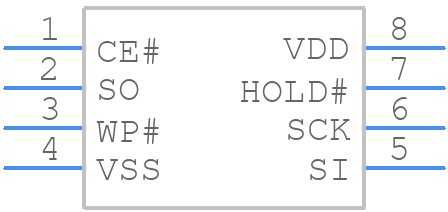

Part Symbol
-

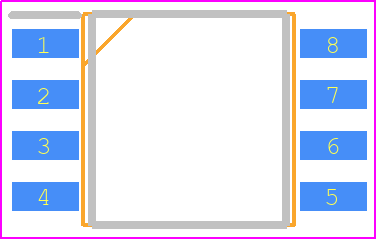

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SST25VF080B-50-4C-S2AF-T Part Data Attributes
|
|
SST25VF080B-50-4C-S2AF-T
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SST25VF080B-50-4C-S2AF-T
Microchip Technology Inc
2.7V to 3.6V 8Mbit SPI Serial Flash
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.3 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOIJ-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.B.1.A | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 5 Weeks | |
| Clock Frequency-Max (fCLK) | 50 Mhz | |
| Data Retention Time-Min | 100 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 5.275 Mm | |
| Memory Density | 8388608 Bit | |
| Memory IC Type | Flash | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 1048576 Words | |
| Number of Words Code | 1000000 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 1mx8 | |
| Output Characteristics | 3-State | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | Square | |
| Package Style | Small Outline | |
| Parallel/Serial | Serial | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3.3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.16 Mm | |
| Serial Bus Type | Spi | |
| Standby Current-Max | 0.00003 A | |
| Supply Current-Max | 0.03 Ma | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Type | Nor Type | |
| Width | 5.275 Mm | |
| Write Protection | Hardware/Software |
Alternate Parts for SST25VF080B-50-4C-S2AF-T
This table gives cross-reference parts and alternative options found for SST25VF080B-50-4C-S2AF-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SST25VF080B-50-4C-S2AF-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SST25VF080B-50-4C-S2AF-T Frequently Asked Questions (FAQ)
-
The SST25VF080B has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
-
The hold pin (HOLD#) is an active low input that allows the device to be paused during a read or write operation. To use it, connect it to a logic low signal to pause the operation, and connect it to a logic high signal to resume the operation.
-
The recommended power-up sequence is to apply VCC first, followed by the input signals (e.g., CE#, OE#, WE#, etc.). This ensures that the device is properly initialized and ready for operation.
-
The WP# pin is an active low input that allows the device to be write-protected. To use it, connect it to a logic low signal to enable write protection, and connect it to a logic high signal to disable write protection.
-
The maximum operating frequency for the SST25VF080B is 50 MHz, as specified in the datasheet.
