STM32H743AGI6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M7 CPU, 480MHz, CMOS, PBGA169

Part Details for STM32H743AGI6 by STMicroelectronics

Results Overview of STM32H743AGI6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

STM32H743AGI6 Information

STM32H743AGI6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32H743AGI6

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32H743AGI6-ND
DigiKey IC MCU 32BIT 1MB FLASH 169UFBGA Min Qty: 2496 Lead time: 15 Weeks Container: Tray Temporarily Out of Stock
  • 2,496 $9.0138
$9.0138 Buy Now
DISTI # STM32H743AGI6
Avnet Americas Microcontroller 32-Bit ARM Cortex-M7 RISC 1M-Bytes Flash 3.3V 169-Pin UFBGA Tray - Trays (Alt: STM32H743AGI6) COO: France RoHS: Not Compliant Min Qty: 2496 Package Multiple: 2496 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 2,496 $10.2180
  • 4,992 $9.6657
  • 9,984 $9.4113
  • 14,976 $9.1700
  • 19,968 $8.9407
$8.9407 / $10.2180 Buy Now
DISTI # 511-STM32H743AGI6
Mouser Electronics ARM Microcontrollers - MCU High-performance & DSP DP-FPU, Arm Cortex-M7 MCU 1 MByte of Flash 1MB RAM, 480 M RoHS: Compliant 0
  • 2,496 $9.2400
$9.2400 Order Now
STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, large set of peripherals COO: France RoHS: Compliant Min Qty: 1 0
  • 1 $15.6400
  • 10 $14.3800
  • 25 $13.7800
  • 100 $12.1400
  • 250 $11.5400
  • 500 $10.8000
$10.8000 / $15.6400 Buy Now
Future Electronics STM32H Series 1MB Flash 1060 kB RAM 480 MHz 32-Bit Microcontroller -UFBGA-169 RoHS: Compliant pbFree: Yes Min Qty: 2496 Package Multiple: 2496 Lead time: 15 Weeks Container: Tray 7488
Tray
  • 2,496 $7.7800
$7.7800 Buy Now
DISTI # STM32H743AGI6
IBS Electronics MICROCONTROLLER 32-BIT ARM CORTEX-M7 RISC 1M-BYTES FLASH 3.3V 169-PIN UFBGA TRAY Min Qty: 2496 Package Multiple: 1 7488
  • 2,496 $10.8920
$10.8920 Buy Now
DISTI # STM32H743AGI6
Avnet Silica Microcontroller 32Bit ARM CortexM7 RISC 1MBytes Flash 33V 169Pin UFBGA Tray (Alt: STM32H743AGI6) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 16 Weeks, 0 Days Silica - 1248
Buy Now
DISTI # STM32H743AGI6
EBV Elektronik Microcontroller 32Bit ARM CortexM7 RISC 1MBytes Flash 33V 169Pin UFBGA Tray (Alt: STM32H743AGI6) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 16 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32H743AGI6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32H743AGI6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32H743AGI6

STM32H743AGI6 CAD Models

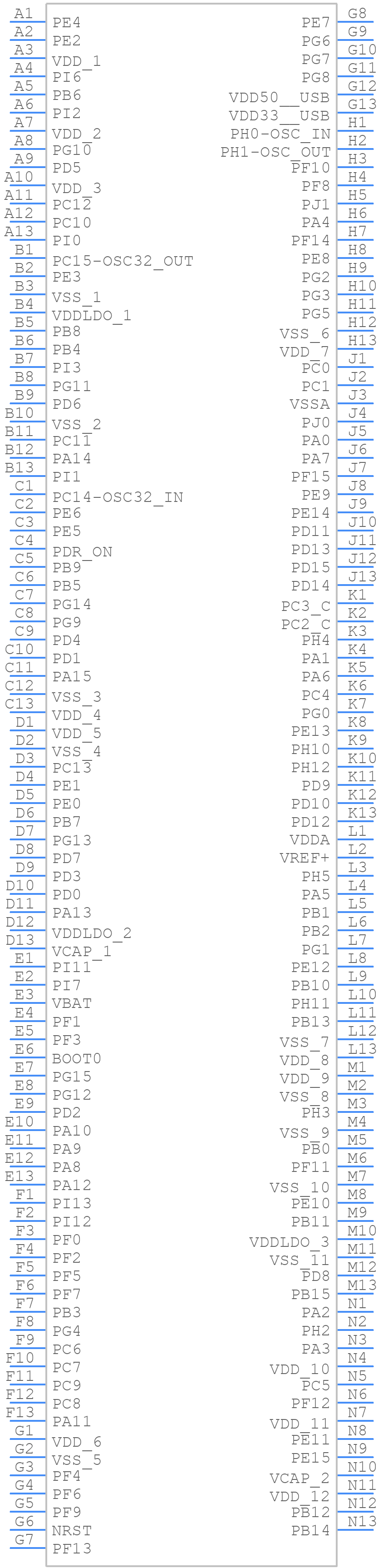

  • Part Symbol

    schematic symbol

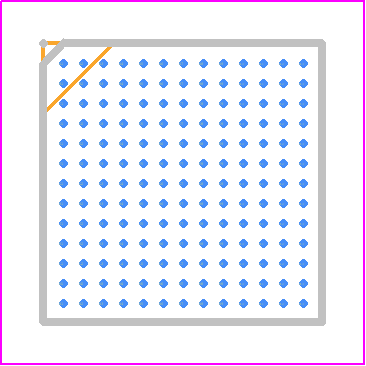

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32H743AGI6 Part Data Attributes

Parametric Data
STM32H743AGI6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32H743AGI6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M7 CPU, 480MHz, CMOS, PBGA169
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vfbga, Bga169,13x13,20
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Date Of Intro 2019-05-03
Has ADC Yes
Address Bus Width 26
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M7
Clock Frequency-Max 48 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width 32
Format Floating-Point
Integrated Cache Yes
JESD-30 Code S-PBGA-B169
Length 7 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 4
Number of I/O Lines 131
Number of Serial I/Os 11
Number of Terminals 169
Number of Timers 21
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VFBGA
Package Equivalence Code BGA169,13X13,20
Package Shape Square
Package Style Grid Array, Very Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 1085440
ROM (words) 1048576
ROM Programmability Flash
Seated Height-Max 0.6 Mm
Speed 480 Mhz
Supply Current-Max 100 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Ball
Terminal Pitch 0.5 Mm
Terminal Position Bottom
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32H743AGI6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32H743AGI6 is 480 MHz.

  • The STM32H743AGI6 has 1 MB of flash memory.

  • The STM32H743AGI6 has 864 KB of RAM.

  • Yes, the STM32H743AGI6 supports USB OTG (On-The-Go) with a dedicated USB OTG_FS controller.

  • Yes, the STM32H743AGI6 has several low-power modes, including Sleep, Stop, and Standby modes, to reduce power consumption.
