T520B686M006ASE070 Information
T520B686M006ASE070 by KEMET Corporation is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for T520B686M006ASE070
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
T520B686M006ASE070
|
Avnet Americas | - Tape and Reel (Alt: T520B686M006ASE070) COO: China RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 27 Weeks, 0 Days Container: Tape & Reel | 0 |
|
RFQ | |
|
|
Bristol Electronics | 5626 |
|
RFQ |
US Tariff Estimator: T520B686M006ASE070 by KEMET Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for T520B686M006ASE070
T520B686M006ASE070 CAD Models
-
Part Symbol
-
Footprint
-

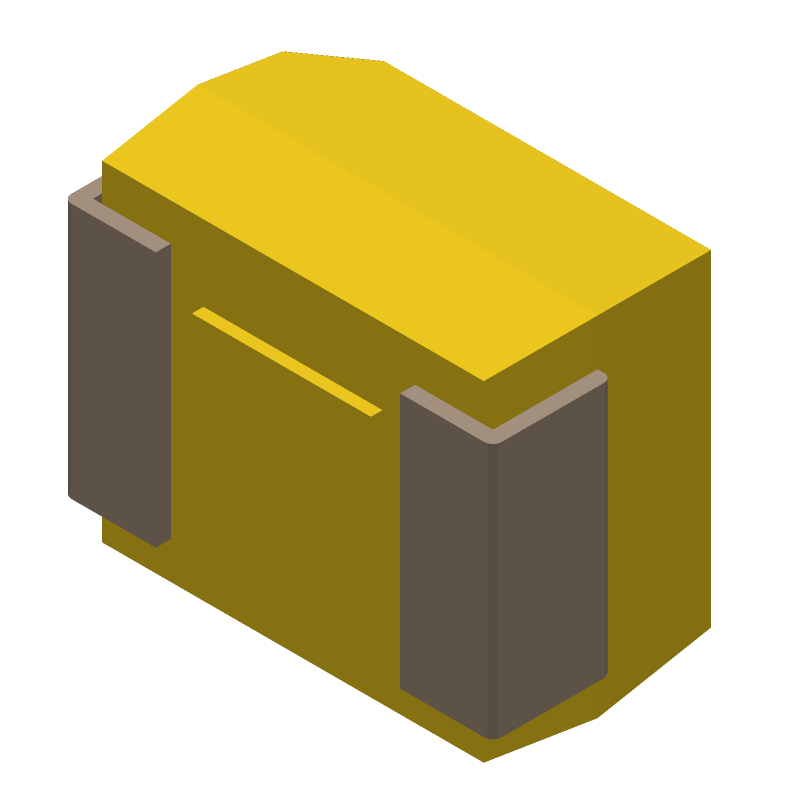

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
T520B686M006ASE070 Part Data Attributes
|
|
T520B686M006ASE070
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
T520B686M006ASE070
KEMET Corporation
Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 1411, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Capacitance | 68 µF | |
| Capacitor Type | Tantalum Capacitor | |
| Dielectric Material | Tantalum (Solid Polymer) | |
| Height | 1.9 Mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.043 Ma | |
| Length | 3.5 Mm | |
| Manufacturer Series | T520 | |
| Mounting Feature | Surface Mount | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Packing Method | Tr, Embossed Plastic, 7/13 Inch | |
| Polarity | Polarized | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Ripple Current | 300 Ma | |
| Series | T520(B,6.3v) | |
| Size Code | 1411 | |
| Surface Mount | Yes | |
| Tan Delta | 0.08 | |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Shape | J Bend | |
| Width | 2.8 Mm |
Alternate Parts for T520B686M006ASE070
This table gives cross-reference parts and alternative options found for T520B686M006ASE070. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T520B686M006ASE070, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TA6R3PCJ686MBR0055 | VENKEL LTD | Check for Price | Tantalum Capacitor, Tantalum (solid Polymer), | T520B686M006ASE070 vs TA6R3PCJ686MBR0055 |
| NTP686M6.3TRB(55)3KF | NIC Components Corp | Check for Price | Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 68uF, 1411 | T520B686M006ASE070 vs NTP686M6.3TRB(55)3KF |
| NTP686M6.3TRB(200)F | NIC Components Corp | Check for Price | Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT | T520B686M006ASE070 vs NTP686M6.3TRB(200)F |
| T520B686M006APE0407280 | KEMET Corporation | Check for Price | Tantalum Capacitor, Tantalum (solid Polymer), | T520B686M006ASE070 vs T520B686M006APE0407280 |
| T543B686M006AKW0407280 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 68uF, 1411, | T520B686M006ASE070 vs T543B686M006AKW0407280 |
| T520B686M006ASE040 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 1411, CHIP | T520B686M006ASE070 vs T520B686M006ASE040 |
| T520B686M006ANE0257280 | KEMET Corporation | Check for Price | Tantalum Capacitor, Tantalum (solid Polymer), | T520B686M006ASE070 vs T520B686M006ANE0257280 |
| T543B686M006AKW0357280 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 68uF, 1411, | T520B686M006ASE070 vs T543B686M006AKW0357280 |
| T520B686M006ANE025 | KEMET Corporation | Check for Price | Tantalum Capacitor, Tantalum (solid Polymer), | T520B686M006ASE070 vs T520B686M006ANE025 |
| T543B686M006AKS025 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 68uF, 1411, | T520B686M006ASE070 vs T543B686M006AKS025 |
