Part Details for TIP112 by STMicroelectronics
Results Overview of TIP112 by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP112 Information

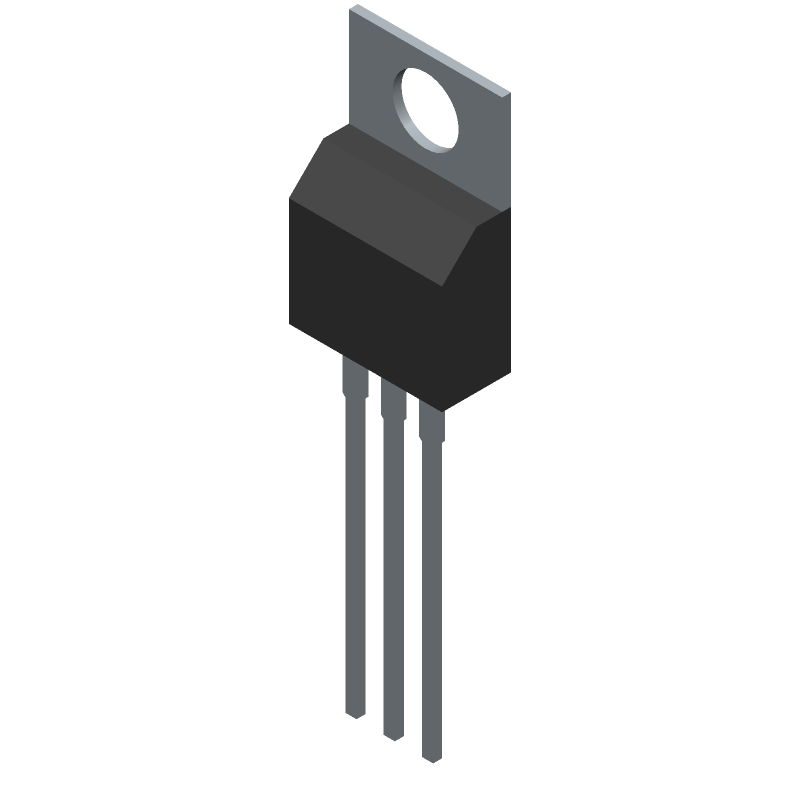

TIP112 by STMicroelectronics is a Power Bipolar Transistor.
