Part Details for UCC1804J by Texas Instruments
Results Overview of UCC1804J by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UCC1804J Information
UCC1804J by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UCC1804J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71324458
|
Verical | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
DISTI #
V86:2349_07479700
|
Arrow Electronics | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
DISTI #
V86:2349_07479700
|
Arrow Electronics | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
DISTI #
71324458
|
Verical | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
DISTI #
71324458
|
Verical | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
DISTI #
V86:2349_07479700
|
Arrow Electronics | Current Mode PWM Controller -0.1V to 11V 1000kHz 8-Pin CDIP Tube COO: Thailand RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 1934 | Americas - 5 |
|
$24.7300 | Buy Now |
|
|
Vyrian | Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8 | 5922 |
|
RFQ |
US Tariff Estimator: UCC1804J by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
UCC1804J CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
UCC1804J Part Data Attributes
|
|
UCC1804J
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC1804J
Texas Instruments

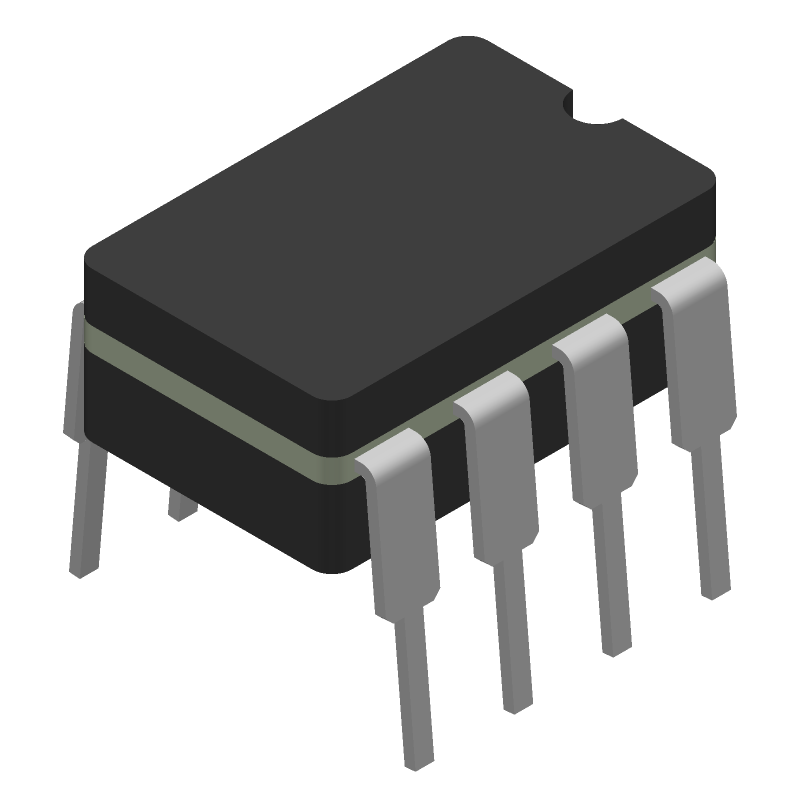

Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | DIP | |
| Package Description | Cdip-8 | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Analog IC - Other Type | Switching Controller | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 10 V | |
| JESD-30 Code | R-GDIP-T8 | |
| JESD-609 Code | e0 | |
| Length | 9.58 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | Ceramic, Glass-Sealed | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Supply Current-Max (Isup) | 25 Ma | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | No | |
| Switcher Configuration | Buck-Boost | |
| Switching Frequency-Max | 1000 Khz | |
| Technology | Bicmos | |
| Temperature Grade | Military | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
